• Use 480 Mask Size
Checking this box sets the display mask size from 600 pixels to 480 pixels. Some ISOBUS ECUs have
problems scaling their Object Pools to the 600 pixel mask. The 480 pixel size is more common and should
reduce or eliminate scaling issues such as overlapping text, or missing display items.
• Virtual Terminal Functional Instance
Always set to 0 except when there are multiple VTs on the ISO Bus. Use to change instance.
Reboot Display

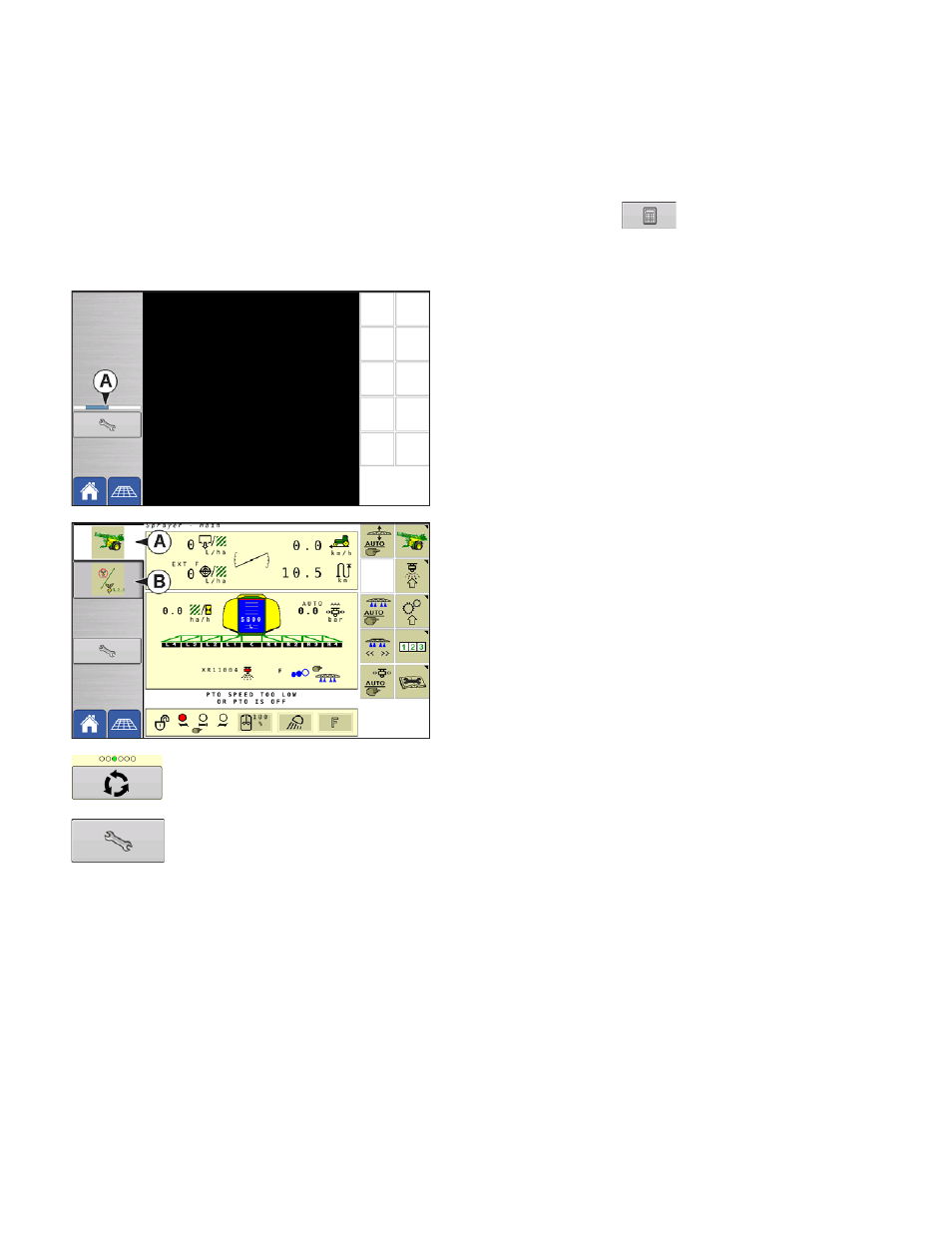

When an ISOBUS compliant implement is connected
to the display for the first time, the implement WSM
sends its graphic interface, called the Object Pool, to
the display. Status bar (A) appears while Object Pools
are being loaded. This process might take several
minutes depending on the number of Object Pools
being loaded. Once loaded, object pools are stored in
the display memory.
The Working Sets can also be accessed by pressing
tabs (A) or (B) individually.
Advance through multiple screens of buttons. This button remains hidden unless more
than 10 buttons are present.
Opens the Virtual Terminal Settings screen.
