60 Firmware Version 5.4
VT A
LARMS AND
T
ROUBLE
C
ODES

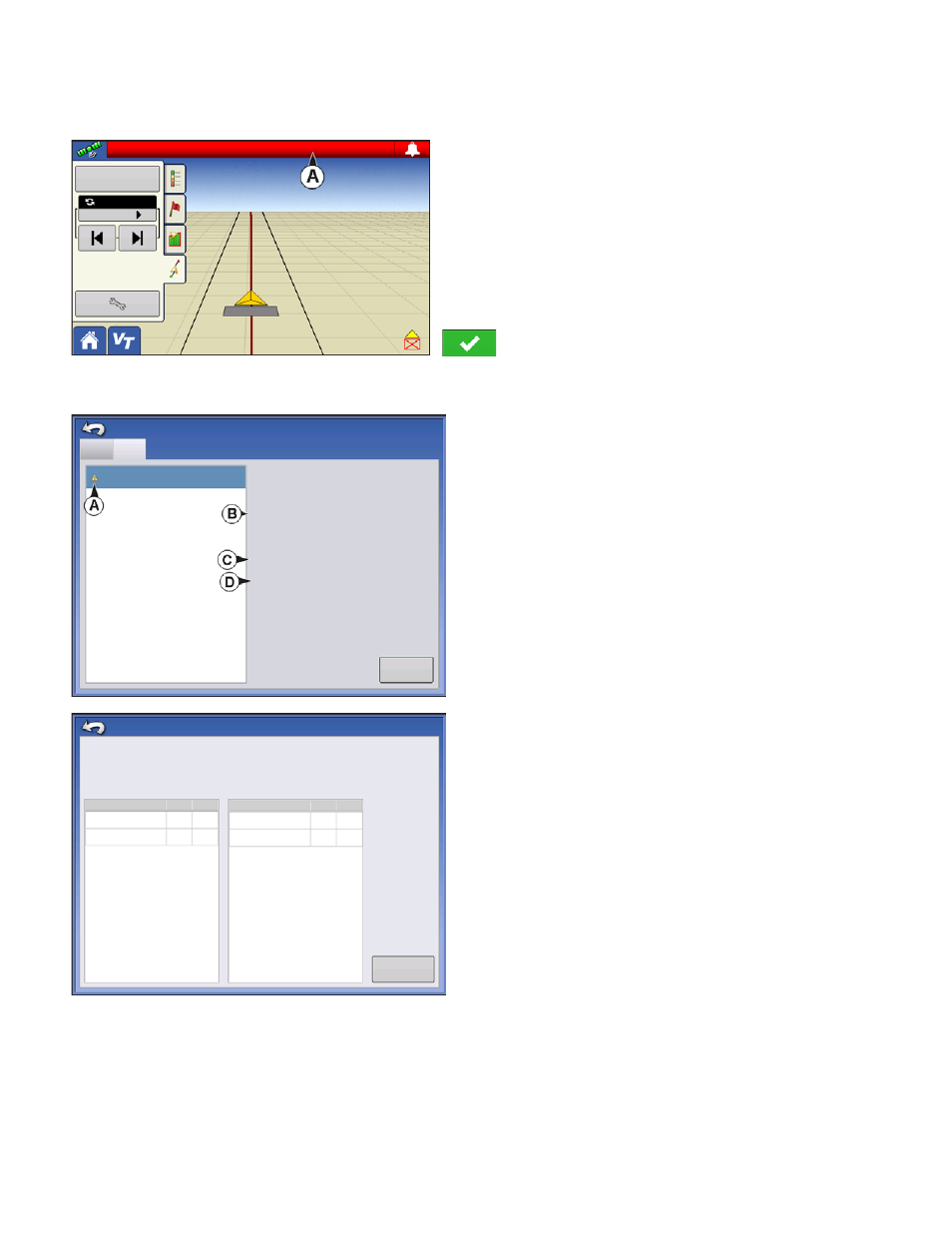

If the display receives an active trouble code, the
Virtual Terminal Alarm (A) will appear in the Status
bar at the top of the screen.
When an alarm is activated on the VT, the display will
indicate the alarm by flashing “Virtual Terminal Alarm”
in the status bar.
Alarms are acknowledged and cleared by pressing
.
This button is only present when a virtual terminal alarm has been activated.
The Devices screen displays the following
information:
• (A) Caution icon indicates module has active
trouble codes (DTCs)
• (B) Equipment Type
• (C) ECU Serial Number
• (D) VT Manufacturer, name and code
Pressing the Diagnostics button on the Devices
screen brings up the ISO Node Diagnostics screen
which shows the following information.
• SPN
“Suspect Parameter Number” = Error Number
• FMI
“Fault Mode Indicator” = Error State.
• OC
“Occurrence Count”
• DTC
Diagnostic Trouble Code
This is a combination of the SPN and the FMI (for
example 522102.12).
Cross-reference DTC in equipment manufacturer’s operator manual for description of error.
Select Generic if implement is not included in list.
Virtual Terminal Alarm
Pass: 16 L
Nudge: 30.0
Total: 0.0
Reset
Devices
CAN Name: 76 10 2B DB 00 B0 0C A0
Self Configurable: Yes
Industry Group: Agriculture and Forestry
Device Class: Sprayers
Device Class Instance: 0
Function: 128
Function Instance:
0
0
Identity Number: 725110
Manufacturer Code: 89
Kverneland Group, Electronics Division
ECU Instance
CAN A CAN B
130 ISO NODE
ISO Node Diagnostics
ECU ID:
Software ID: FMA_R 0.9 2006-05-23
Active Errors:
SPN FMI OC
Previously Active Errors:
SPN FMI OC
522102 12 1
523666 3 2
522102
523666
1
2 3
Clear Previously
Active Errors
12
