Section 15: Key Settings/
Functionality
Application Rate Control Tab

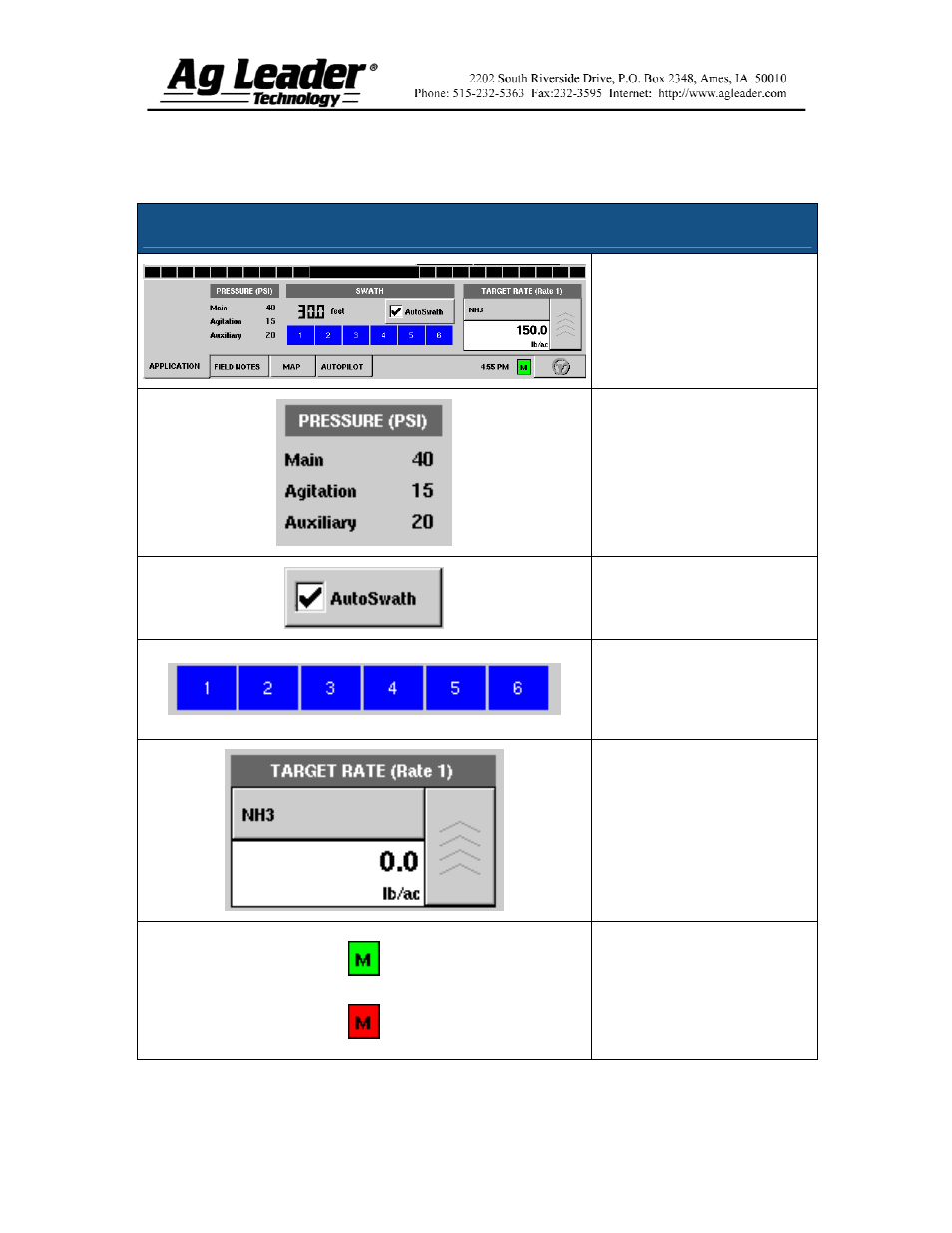

The Application Tab shown at
left is a typical configuration
for a Liquid Control module.
The pressure indicators include
information on the Main
Pressure, Agitation Pressure,
and Auxiliary Pressure.
Press the AutoSwath button to
enable the AutoSwath feature.
The boom indicators show the
active and inactive sections
used on a liquid
DirectCommand configuration.
Displays the current target
application rate. Press the up
arrow button to go to the
Target Rate Application
window.
The Master Switch Indicator
shows if the master switch is
on (green) or off (red). The
master switch is shown in the
F1 position on the Auxiliary
Input Settings window.
