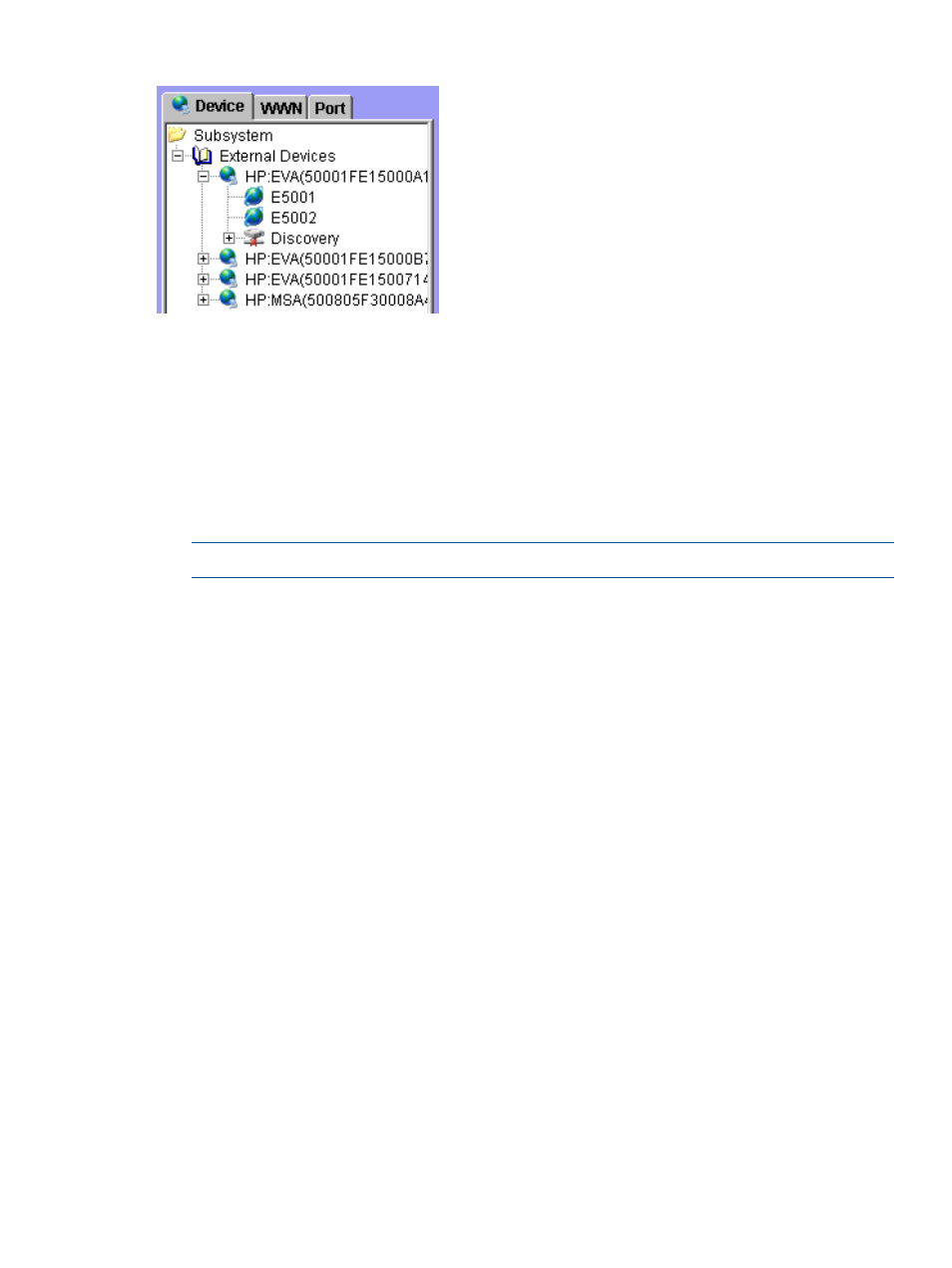

Figure 29 Device tree
The Device list (right pane) changes according to the item selected in the Device tree.
•
Subsystem
When selected, displays nothing in the Device list and displays the External Devices branch
of the tree. Subsystem is selected when you start XP External Storage and display the Device
tree.
•
External Devices
When selected, the Device list displays information about external arrays connected to external
ports that have been detected (supported).
NOTE:
Not all types of detected external arrays are supported.
•
Product name of the connected external array
Displays the name of the external array that can be connected using XP External Storage in
the tree under External Devices. When you select an external array's product name, the Device
list displays detailed product information.
•
External LU group number
Displays user-assigned numbers in the branch under the external array's product name, which
is connected to the local array and is already used. When you select an external LU group
number, the Device list displays information about external LUs registered in the selected group.
•
Discovery
Appears in the branch under the product name of the external array connected to the local
array. When selected, XP External Storage searches for external array ports that can be
connected, and displays their WWNs.
•
WWN of the external array
If you select the WWN found by selecting Discovery in the Device tree, the Device list displays
information about external LUs that can be connected from the port indicated by the WWN.
Device list
Displays information about external arrays corresponding to the item selected in the Device tree.
You can sort the list by displayed items. For example, to sort by LUN numbers, click LUN in the
list.
When performing setting operations, the settings appear in the Preset list and the corresponding
row in the Device list appears in blue italics. For more information, see
LU Operation pane
