NOTE:
If the robotics have failed, it may not be possible to return the unit to the home position and you will be
unable to fit the shipping lock.
Fitting the autoloader cover (optional)
WARNING!
The HP StorageWorks DAT 72x10 Tape Autoloader weighs 10.45 kg (23.4 lb.) without media, and
12 kg (26.46 lb.) when both magazines are full (10 cartridges). To reduce the risk of personal injury or
damage to the autoloader, 1) observe local health and safety requirements and guidelines for manual
material handing, 2) obtain adequate assistance to lift and stabilize the autoloader during installation or
removal, 3) always remove all tapes to reduce the overall weight of the autoloader.
1. If the autoloader has plastic feet, they must be removed so the autoloader can fit inside the tabletop
conversion cover. With assistance, gently turn the autoloader over and set it on its back, as shown
below. Peel off the plastic feet. Turn the autoloader right side up.

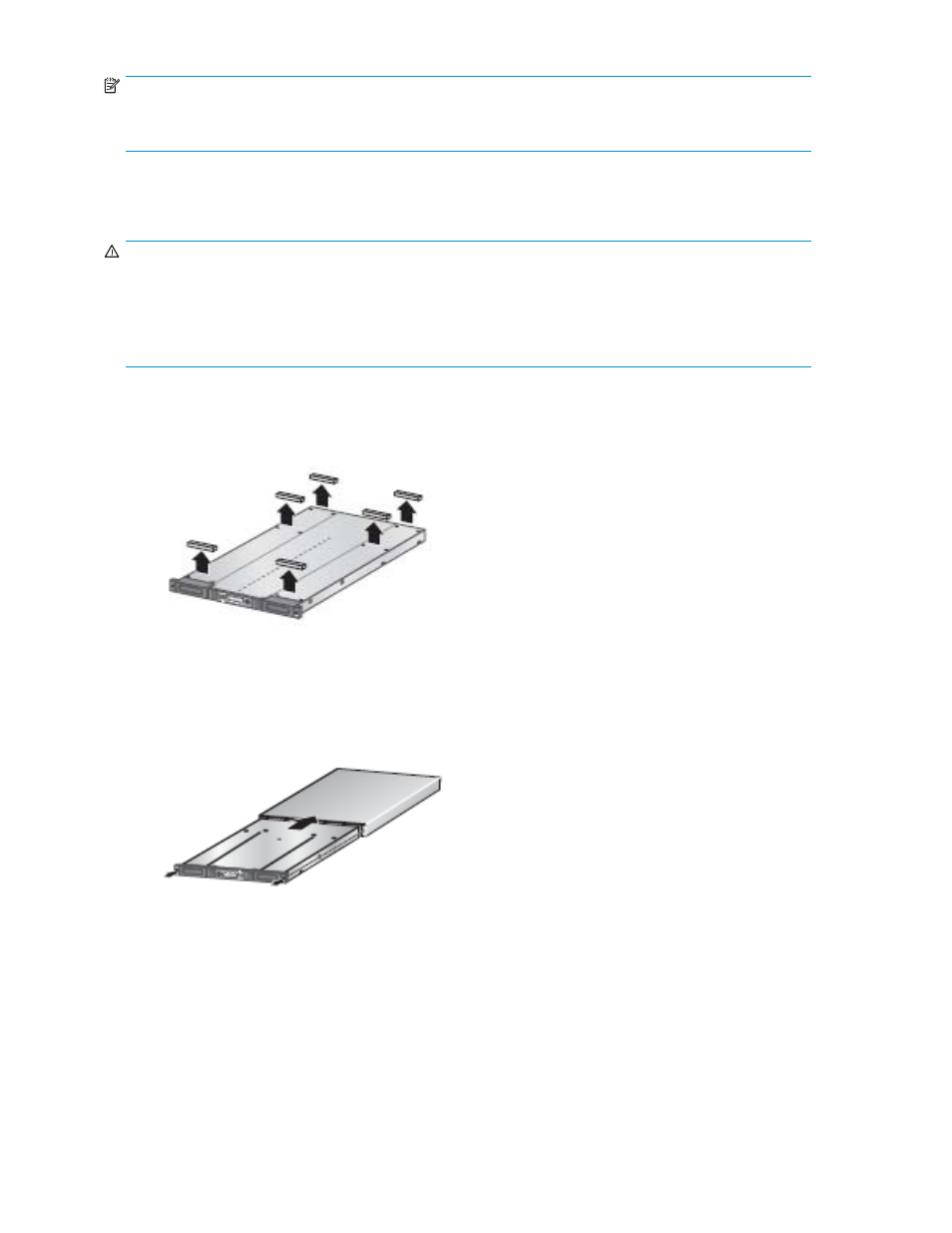

Figure 5 Removing the plastic feet
2. Slide the autoloader into the autoloader cover until the front panel of the autoloader is aligned
with the cover.
3. Tighten the two captive screws on the autoloader front panel until the cover is secure.
Figure 6 Installing the autoloader cover
4. You are now ready to connect the SCSI cable and power cord.
22 Installing the autoloader
