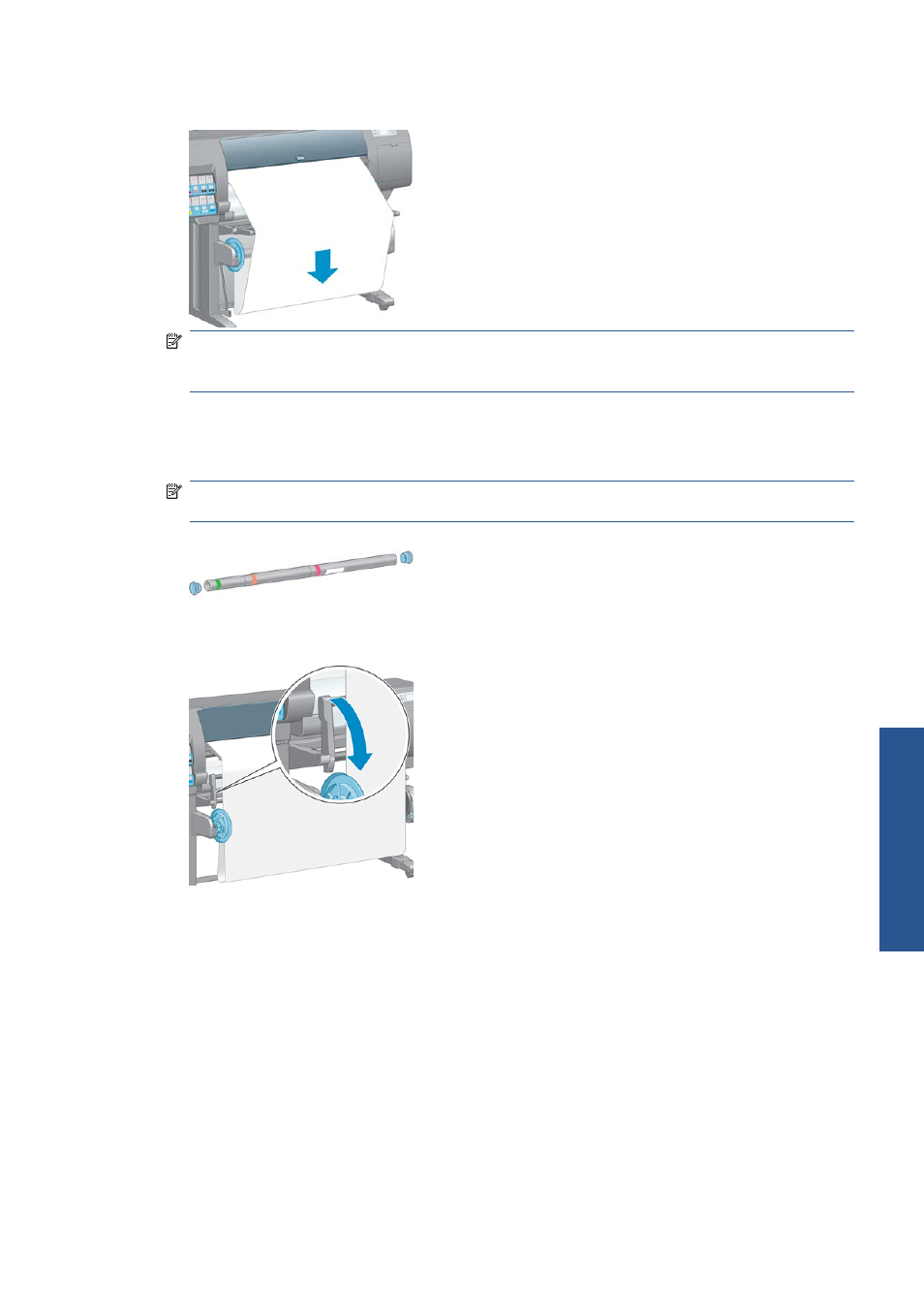

9. Press the OK key on the front panel. The printer advances the paper.
NOTE: Make sure that you insert the loop-shaping core. The take-up reel will not function
correctly without it. The loop-shaping core must have end caps. Make sure that the end caps
extend over the edges of the paper.
10. Assemble a loop-shaping core by matching the shape-coded and color-coded lengths of plastic
tubing. The loop-shaping core must be the same width as the paper that you are using. Make sure
that both end caps are firmly fitted on the ends of the loop-shaping core.
NOTE: The front-panel display shows the required length of the loop-shaping core based on the
width of the roll that you have loaded into the printer.
11. Gently lower the loading table.
ENWW Use the take-up reel 41
