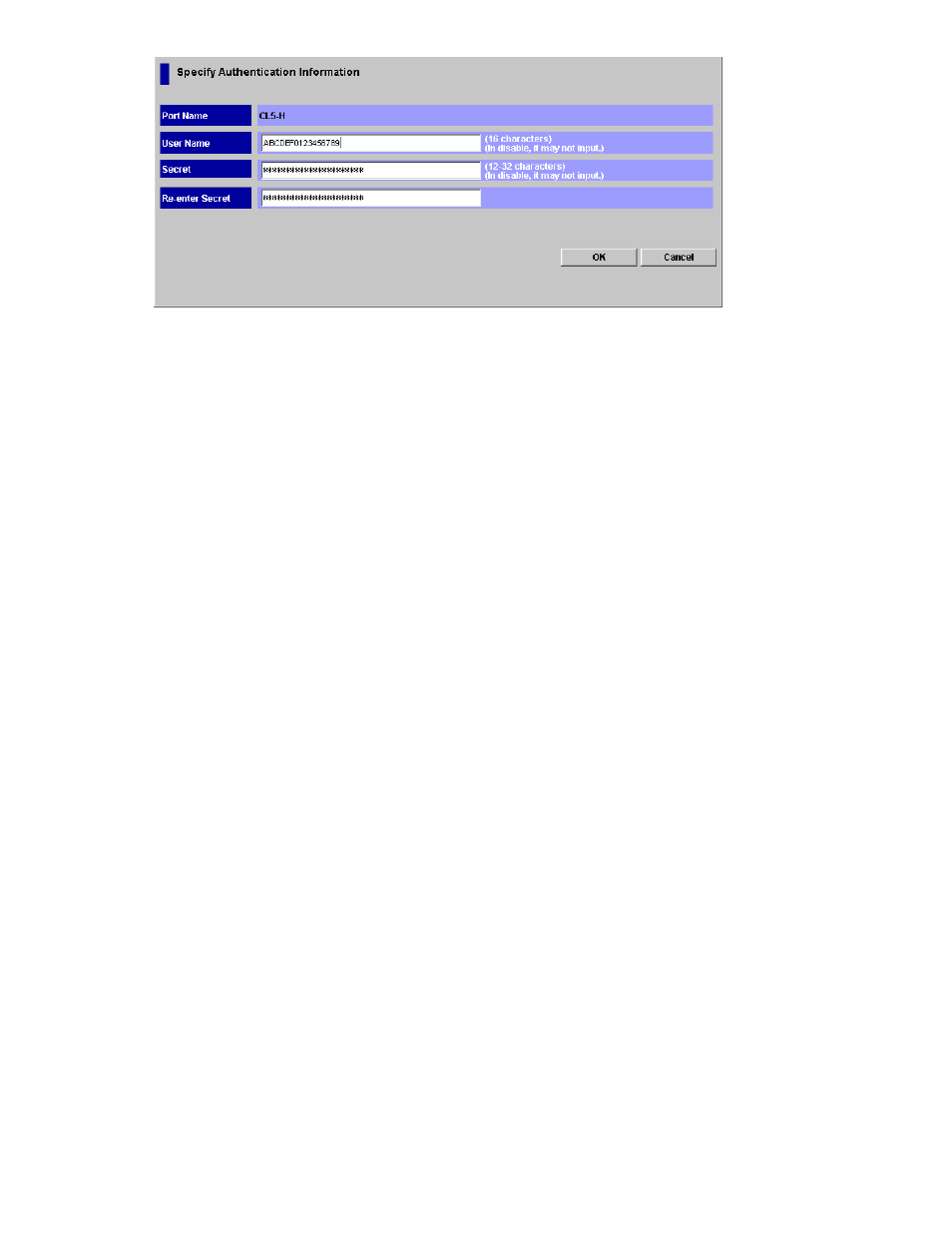

Figure 32 The Specify Authentication Information Dialog Box
Clearing Switch User Information
To clear the user information for a Fibre Channel switch:
1. Make sure that Remote Web Console is in Modify mode.
2. Start LUN Manager and display the Authentication window ( Figure 12 on page 29).
3. In the Port tree, double-click the Subsystem folder.
If the storage system contains any Fibre Channel adapters, the Fibre folder displays below
the Subsystem folder.
4. In the Port tree, double-click the Fibre folder.
The information for the Fibre Channel switch appears in the FC Switch Information list.
5. Right-click any point in the FC Switch Information list and select Clear User information from the
pop-up menu.
The Clear Authentication Information dialog box appears and asks if you want to clear the user
information for the selected Fibre Channel switch.
6. Click the OK button to close the Clear Authentication Information dialog box.
7. Click the Apply button in the Authentication window.
A message appears and asks if you want to apply the setting to the storage system.
8. Click the OK button to close the message.
The setting is applied to the storage system.
XP24000 LUN Manager User's Guide 57
