The Fibre folder: If you double-click the Fibre folder, Fibre Channel ports in the storage system appear as
icons. On the right side of each icon is the port name, the port address, LUN security status, and the port
attribute (that is, whether the port is an initiator port, a target port, an RCU target port, or an external port).
Note : The Fibre folder does not display if the storage system does not contain a Fibre Channel adapter.

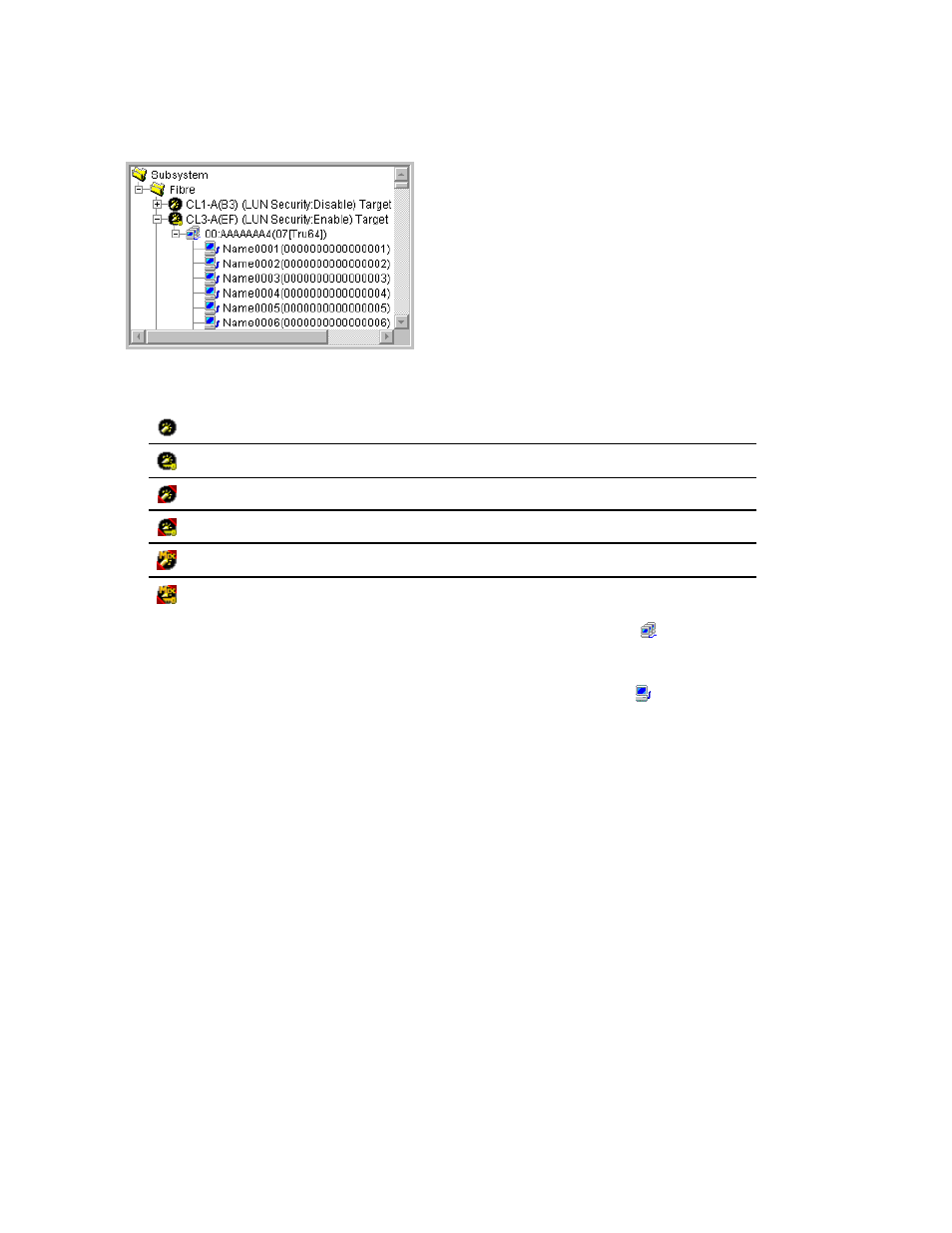

Figure 5 The Fibre Folder
The following are Fibre Channel port icons:
Indicates a port in Standard mode. LUN security is disabled on the port.
Indicates a port in Standard mode. LUN security is enabled on the port.
Indicates a port in High Speed mode. LUN security is disabled on the port.
Indicates a port in High Speed mode. LUN security is enabled on the port.
Indicates a port in Initiator/External MIX mode. LUN security is disabled on the port.
Indicates a port in Initiator/External MIX mode. LUN security is enabled on the port.
When you double-click a Fibre Channel port in the tree, a list of host groups ( ) appears. On the right of
this icon is the host group number (G-ID), the host group name, and the host mode. For details on host
modes, see Table 2 on page 38 in “ Creating Host Groups ” on page 37.
When you double-click a host group in the tree, a list of host bus adapters ( ) appears. On the right
of this icon is the nickname and the worldwide name (WWN) of the host bus adapter. For details on
WWNs, see Appendix A. Note : Host bus adapters are adapters contained in host computers and are
used as ports for connecting hosts and the storage system.
When you double-click a port for which LUN security is disabled, the host groups, except for the first host
group (host group 0), are grayed out.
LU Path List
The upper-right section of the LUN Manager window contains a table that displays LU path information
for the host group specified in the tree.
