HP Matrix Operating Environment Software - Manual (Page 124)

3. Click OK.
The selected columns are now visible on the right-hand side of the Analysis Query Definition
screen.
4. Optional. Reorder, resize, or change the sort order of the columns.
Defining the filter
1. Click Filter System List… to open the query filter editor.
2. Confirm that All is selected in the Match drop-down list.
For this query, all four expression terms need to be true.
3. Click the icon to create a line for the first expression term.
4. Click the icon three times to create the remaining three terms of the expression.

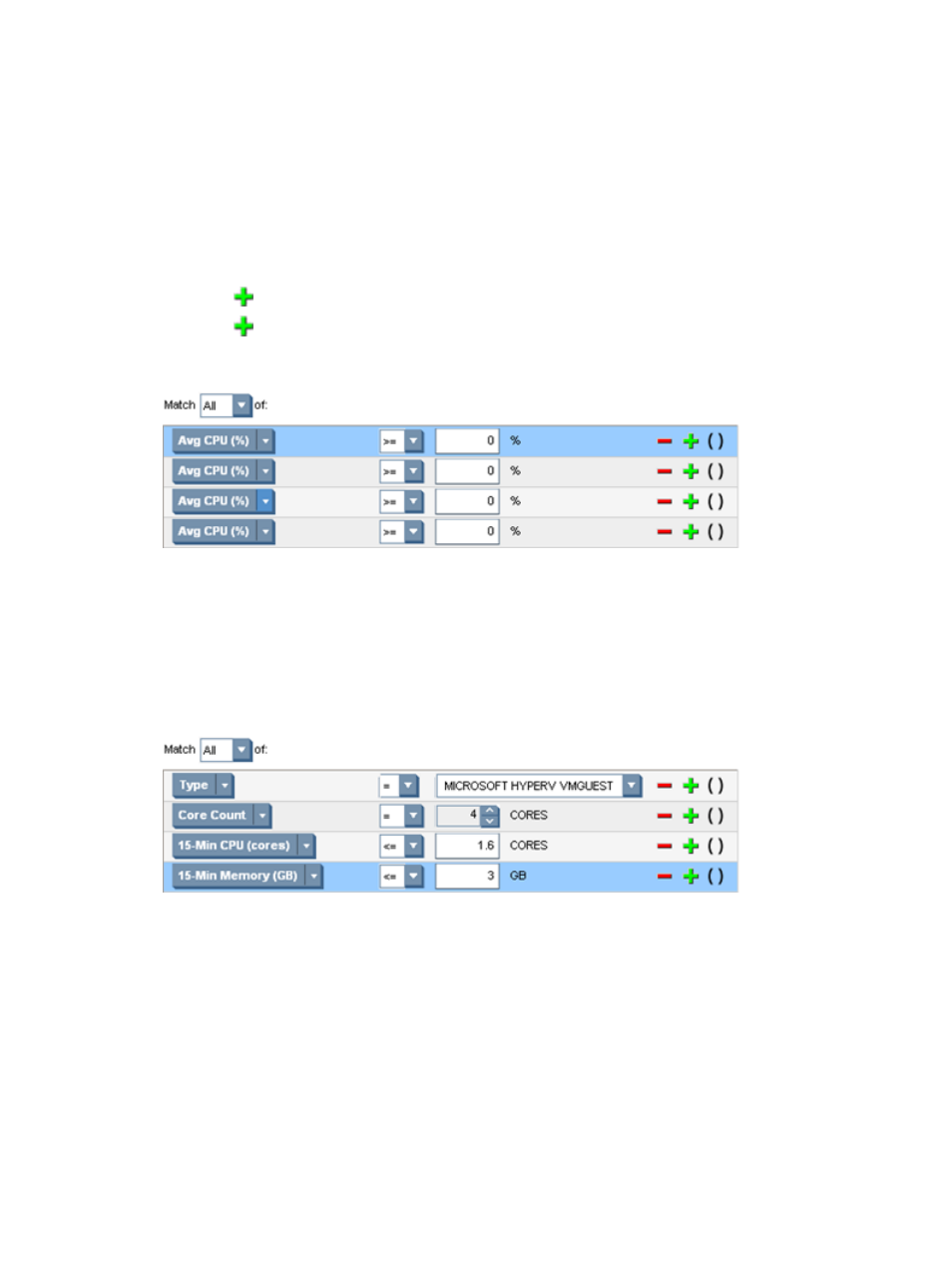

The query filter editor should look like this:
5. Use the drop-down menus to complete each term:
Type = MICROSOFT HYPERV VMGUEST
Core count = 4
15-Min CPU (cores) <= 1.6
15-Min Memory (GB) <= 3
After editing, the query filter looks like this:
6. Click Save to save the query.
7. Click Close to close the Analysis Query Definition screen and return to the Analysis tab.
8. On the Analysis tab, scroll through the list to find the newly created query.
Select the query to display the query results.
Revising the query
Perhaps you start using ESX in the data center in addition to Hyper-V, and you want to expand
the query to work with either type of virtual machine.
In the revised query, the Type needs to match either VMWARE ESX VMGUEST or MICROSOFT
HYPERV VMGUEST
. This corresponds to the Match Any option and requires a new sub-expression
to include both types of virtual machine.
124 Using Capacity Analysis
