iewer
Viewer
Records created in Reader or Online may be viewed and edited on a PC with
the Viewer . The measurement parameters may be displayed either in graph or
in table form .

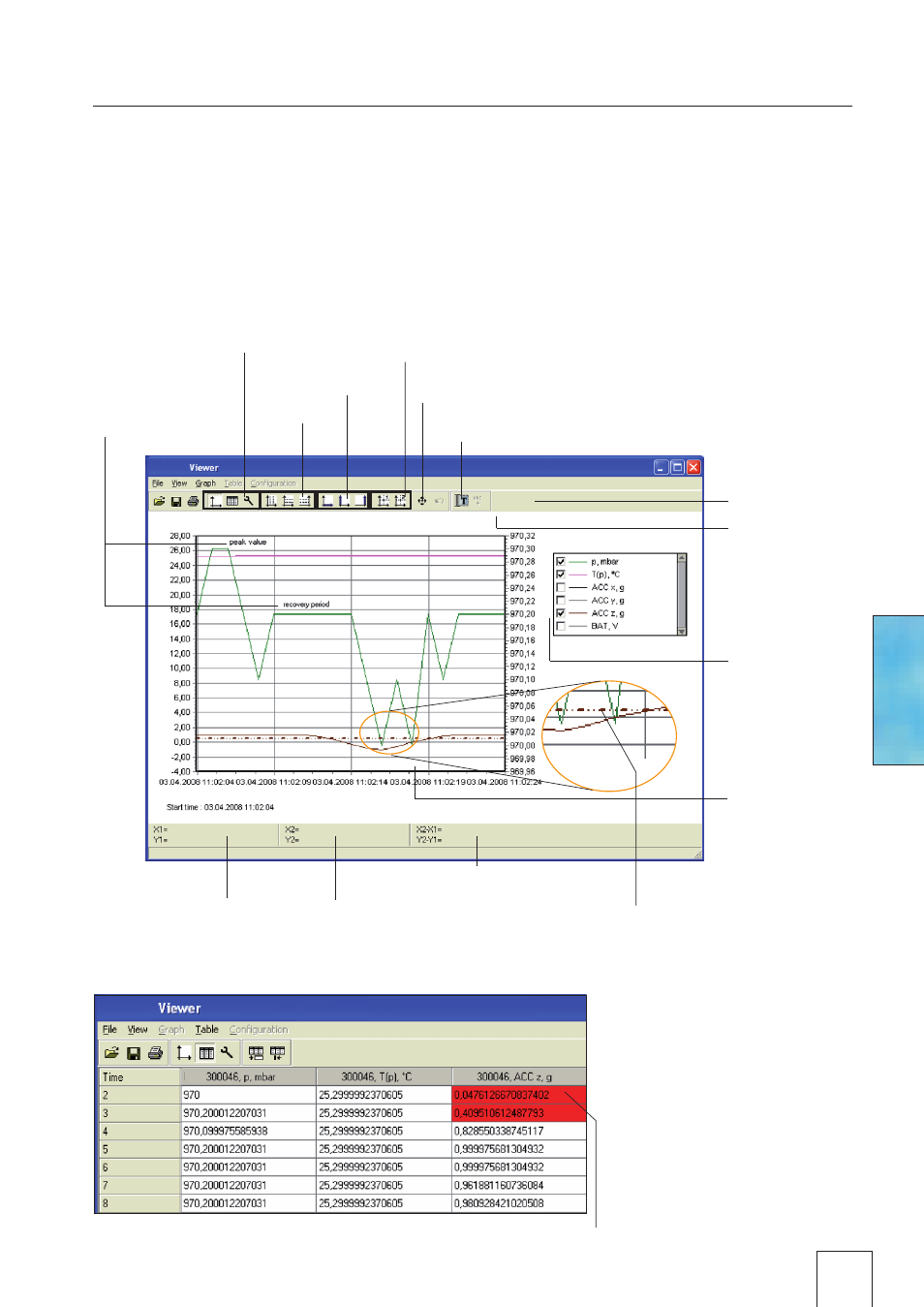

• Start the Viewer (Viewer symbol) .
• Open a record (* .rog) via File > Open .
Traces on / off
Cross-hair on / off
Lock axis
Autoscaling
Undo last change
Switch between graphs,
tables and configuration
X and Y values:
Cross-hair 1, cross-hair 2
(The displayed Y value always
relates to the left-hand axis)
X-axis = time
(seconds)
Difference between
cross-hairs 1 & 2
Gridlines
Text mode
Shift between
text tool and
graphics mode
Text created
using the text
mode
Alarm limit
Alarm limit exceed Displayed as a table
