CAUTION: DO NOT RUN SIGNAL WIRING IN THE SAME CONDUIT OR
CHASE AS THE POWER WIRING. ERRATIC OPERATION OR DAMAGE TO
THE CONTROL CIRCUITRY WILL RESULT.

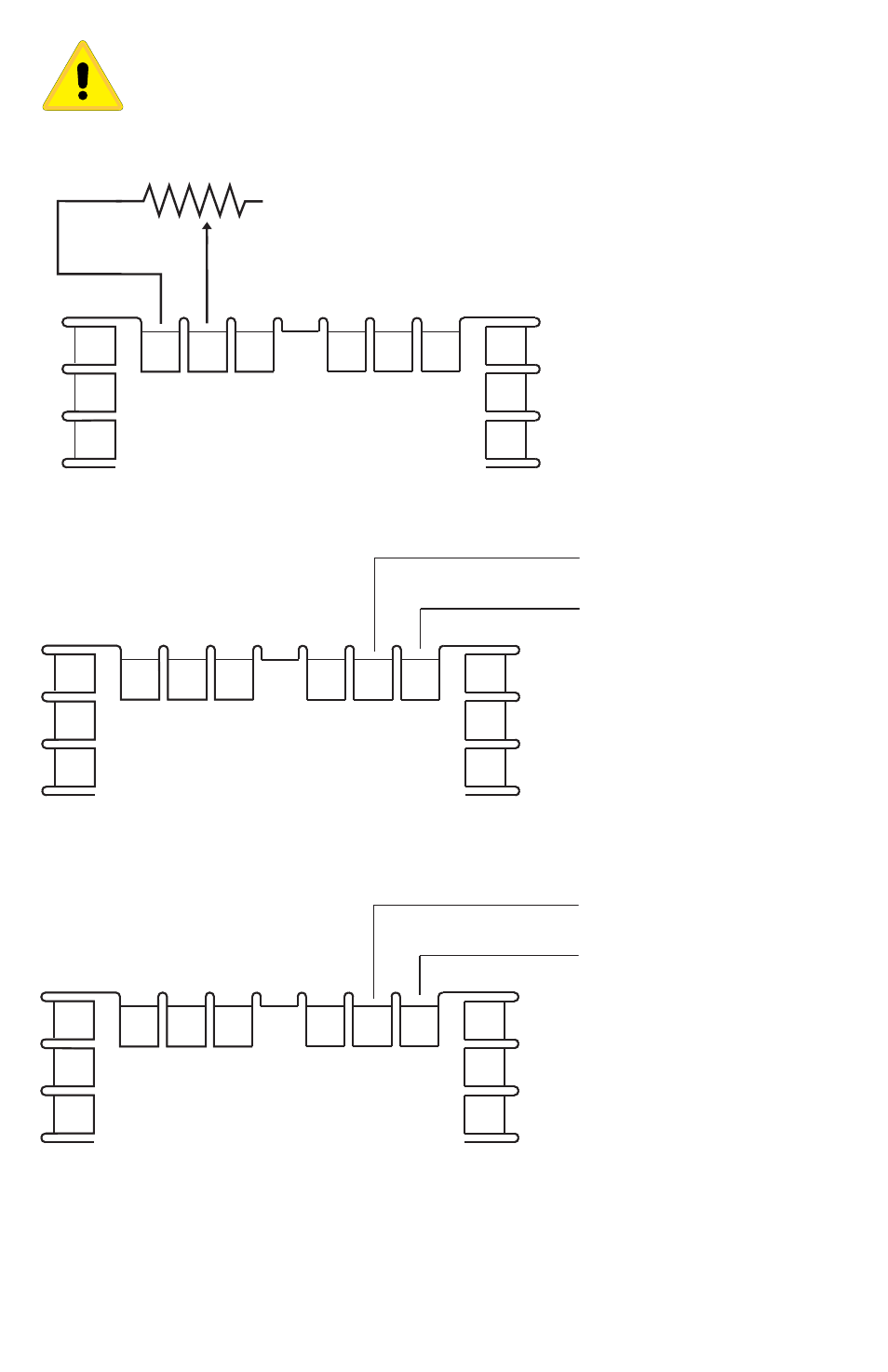

WIRING FOR OPTION 928 REMOTE SET POINT
WIRING FOR OPTION 934 ANALOG RETRANSMISSION
WIRING FOR OPTION 936 ANALOG RETRANSMISSION
May, 2013 Page 9 of 52 949-1194 Rev. 7
3
2
1
21 22 23 24 25 26
13
12
11
Option 928
Option 928: Input 0 to 10 kohms,
4µA Search Current
3
2
1
21 22 23 24 25 26
13
12
11
+ -
Option 934: Output 0 to 20 mADC,
into 600 Ohms maximum
3
2
1
21 22 23 24 25 26
13
12
11
+ -
Option 936: Output 0 to 10 VDC,
20 mADC maximum
