System Composition and Dataflow
Dispense Keypad
500
Dispenses
printer
RS-232
Master Keypad
1200
Dispenses
FMS software
RS-232
Host
RS-232
printer
RS-232
RS-232 Interface
Database PC FMS
Computer

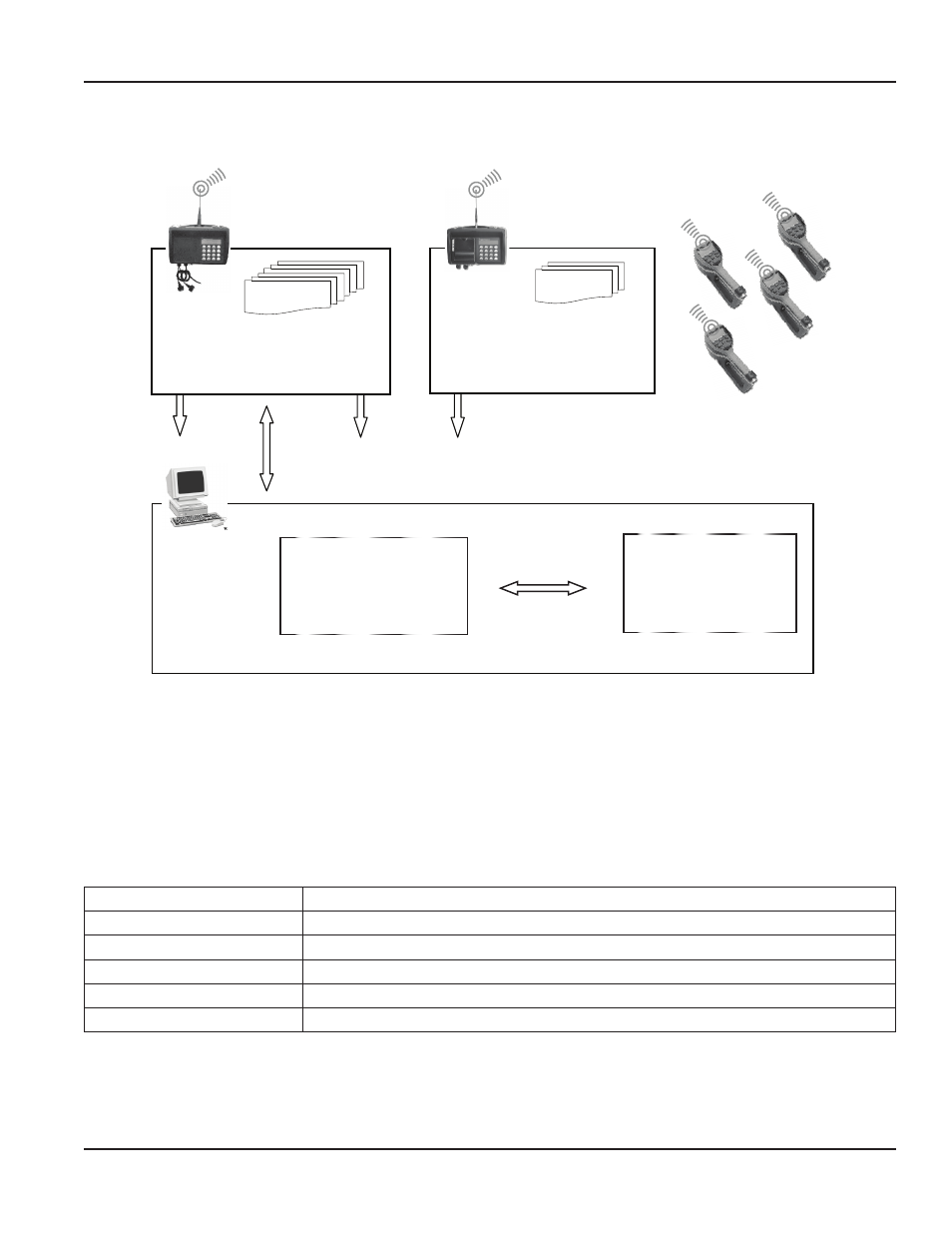

Figure 2: System Data Flow
The main data streams:
1 . The FMS software stores the configuration data into the database .
2 . By using the Initialize System menu of the FMS software the configuration data is processed to the Master Keypad and
finally via radio to all Dispense Keypads .
3 . The FMS records all dispenses in the database .
Specifications
Power Requirements 120V AC 50/60 Hz
RF Communications 2-way, 2 .4…2 .5 GHz Direct Sequence Spread Spectrum
RF Network Self-healing Mesh Network
Operating Temperature 14…140° F (–10…60° C)
Internal Printer Thermal printer Type FT190 (optional)
External Printer Epson LX300 or similar (optional)
