DISPENSE PROCESS

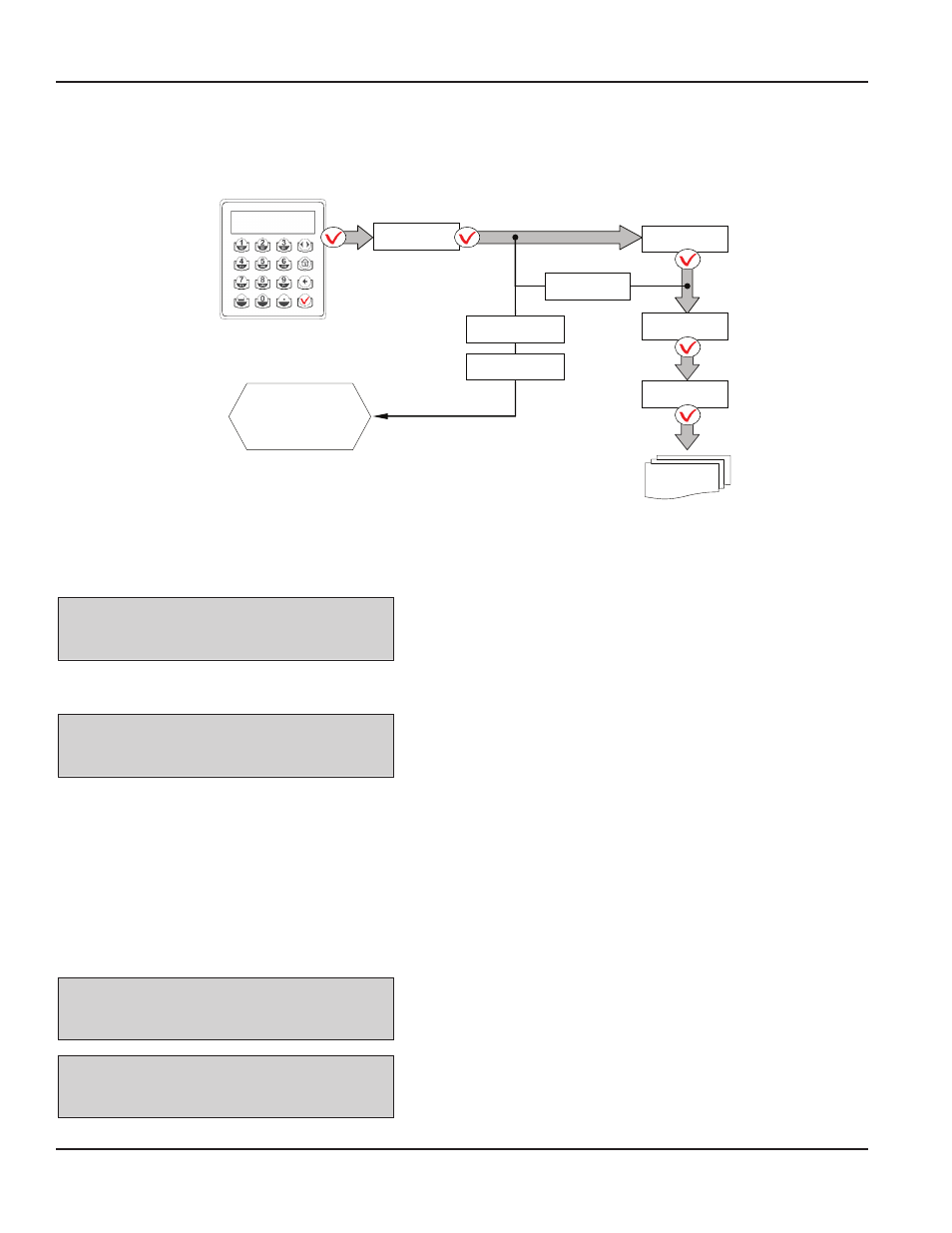

Schematic Overview
Enter WO No.
123A2 ---------
Enter Hose
02-
Quantity
3.0-
Enter for
Dispense External validation
By FMS Software (PC)
Or Host (DMS)
Enter PIN No.
----
WO Valid. PC
YES / NO
Hos e ID First
YES / NO
WO Valid Host
YES / NO
Order stored in Dispense Keypad
until the meter RESET button is pressed.
Starting a Work Order
Enter Pin No.
- - - -
1 . Enter your PIN number and press ENTER .
To start a work order, the mechanics or users must enter their PIN to access the system .
Enter WO No.
- - - -
2 . Enter an alphanumeric number (max . 16 characters) and press
ENTER .
In the operation modes WO Validation HOST or WO Validation PC (see “Work Order Validation” on page 13 ) the entered WO
number will be compared with the numbers set in the system, which are defined in Global Keypad Settings .
Alphanumeric Keypad
To change from the numeric to the letter keypad, press the equivalent key for at least 3 seconds until the desired letter is
shown .
Additional Free Fields
These optional fields are only shown if they have been enabled (defined in Global Keypad Settings) .
Free Alphanumeric
- - - -
3 . Enter alphanumeric characters and press ENTER .
Can be used, for example, for the licences plate number.
Free Numeric
- - - -
4 . Enter an alphanumeric number (max . 16 characters) and press
ENTER .
Can be used, for example, for the actual mileage.
