INITIALIZE SYSTEM
Test Comm Option
The Test Comm option checks that the serial
cable is connected to the Master Keypad and the
correct communication port has been selected .
1 . To test the serial communication between the
Master Keypad and PC, click the
TEST COMM button .
2 . Upon completion, a Test Passed screen
displays .

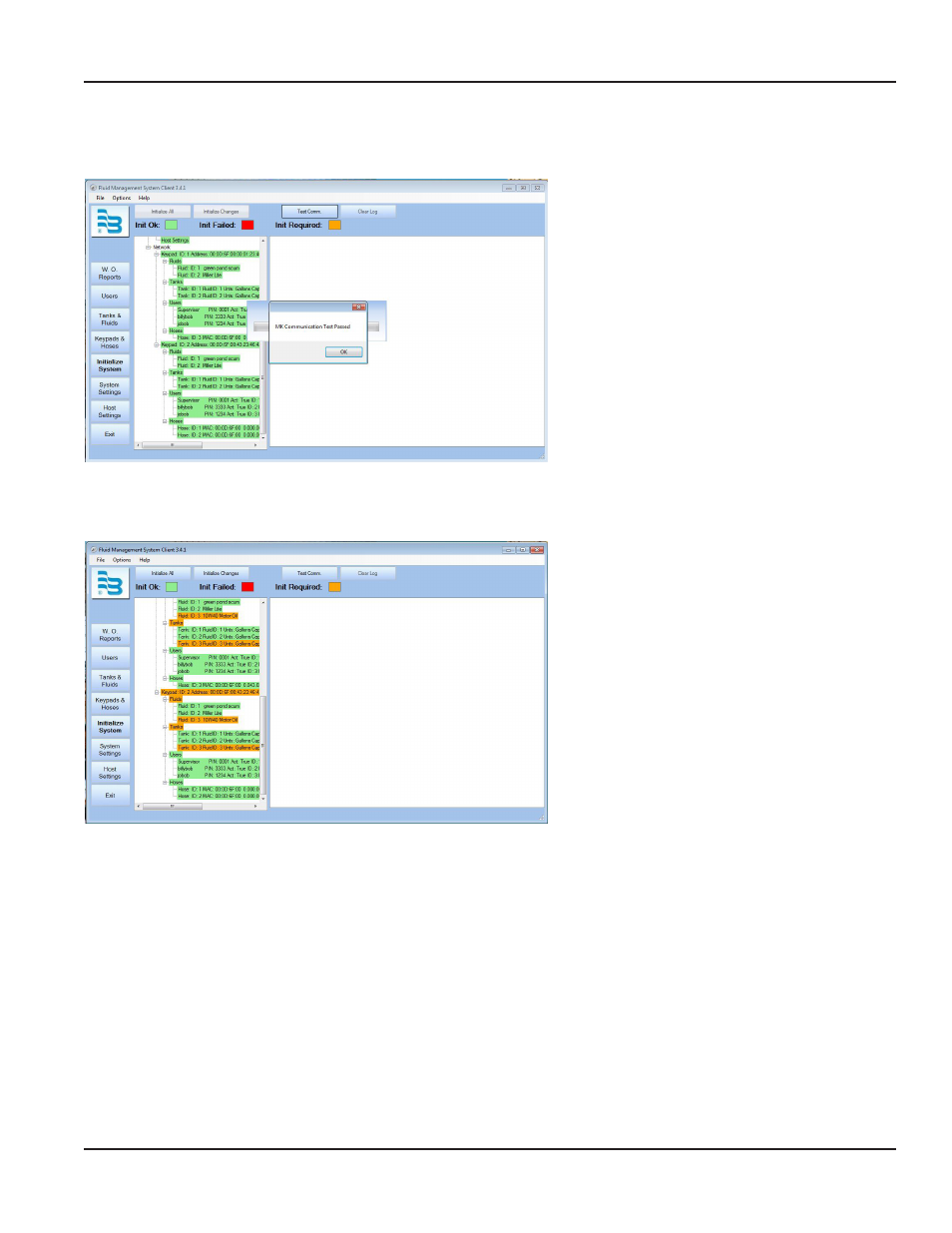

After the system is configured you will need to initialize the system before using . The first time you select the Initialize System
option, you will see a screen similar to the one this:
All items highlighted are color-coded to indicate
their initiation status:
•
Orange indicates an initialization is required .
• Green indicates the items have
been initiated .
• Red indicates that the initialization
process failed .
