INSTALLING AND LAUNCHING THE FMS SOFTWARE
The system configuration is done by using this FMS Software . Only some special functions like the operation modes are set at
the Master Keypad .
The software provides the ability to set work orders, and assign a product and a quantity to it .
All dispense results will be collected and saved in a work order list (W .O . Report) . Several filters are available to select the
desired information . The result can be exported to a semicolon separated value (CSV) file format .
System Requirements
•
P4 1 .6 GHz or greater
• 1 GB RAM minimum
• XP, Vista, or Windows® 7, Server 2003, Server 2008 Required (will not run on Windows 2000 or earlier) 64 and 32-
bit compatible
FMS Software Description
Before beginning the installation, please be sure your Windows user profile has the appropriate rights to install the software
properly (particularly Windows XP) .
Insert the setup CD ROM into your CD ROM drive .
If the Installer does not launch itself after a short period, open it manually by double clicking on your CD Drive in your My
Computer folder . Select the AutoMenu.exe file .

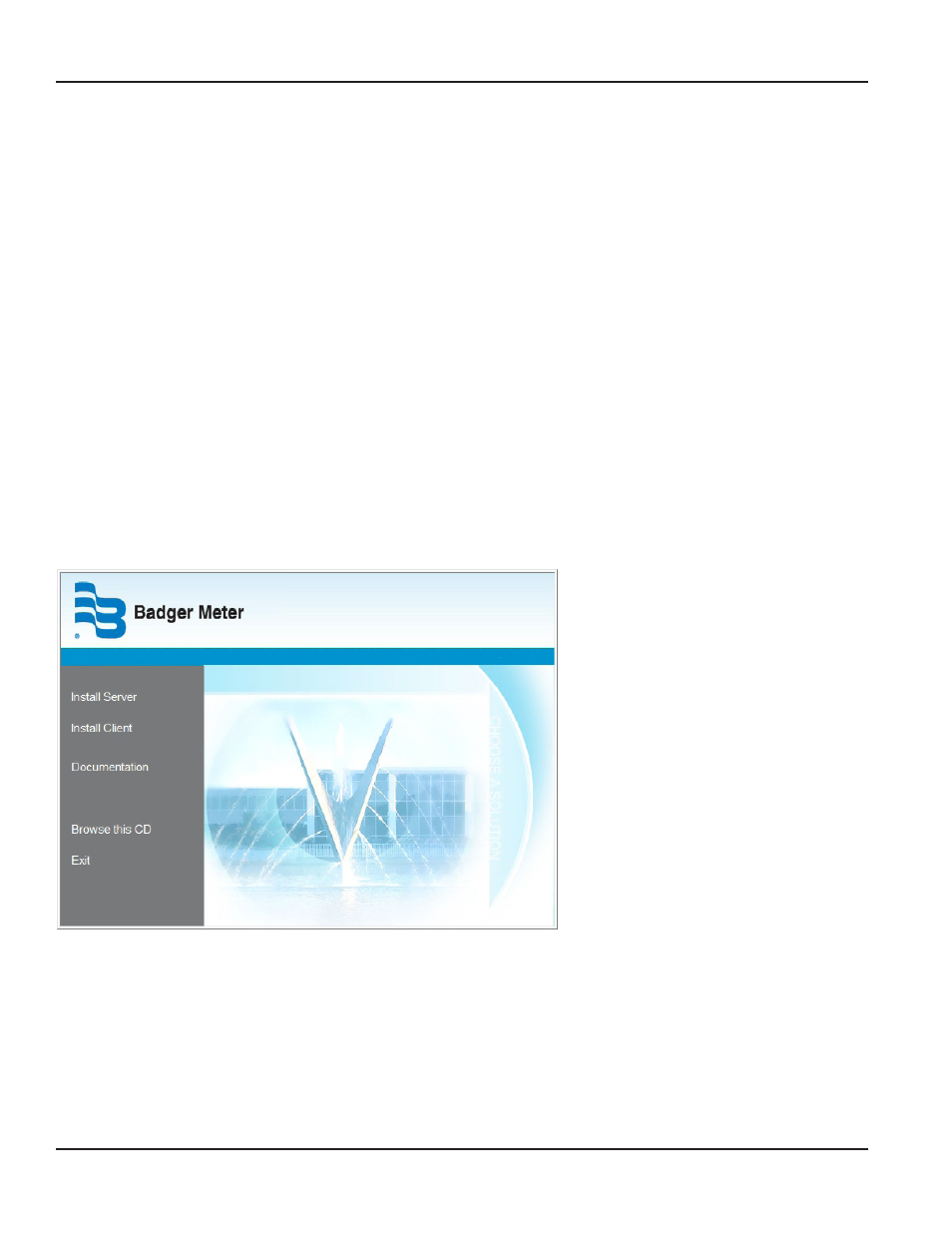

The installer menu will appear:
The installer menu provides several options:
•
Server – installs the server and all server
components . This will be the location
where all the master keypad is plugged
in, data is stored and where the client
machine will go to access and update
work orders, tank levels, etc .
• Client – installs the client and all client
components . This will have to be
installed on every machine you would
like to run the software on
• Exit closes the installer
