Master Keypad Settings
COM Port Select the COM port on the PC for the serial connection to the Master Keypad . To change, simply
click on the drop down and select the appropriate COM port .
Buzzer To activate the key click buzzer, check the box next to the Buzzer field .

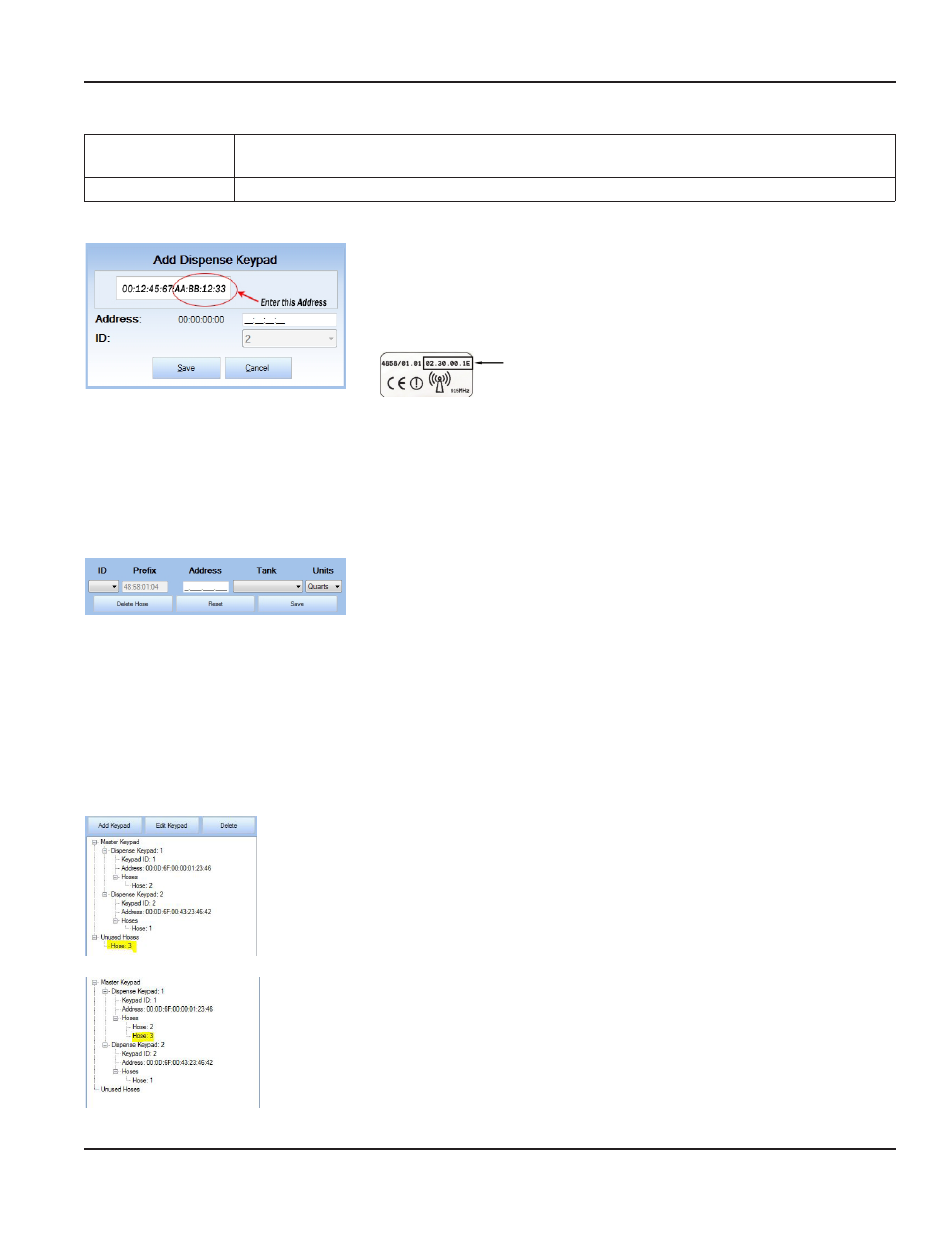

Adding a Dispense Keypad
1 . From the Keypad and Hoses screen, click ADD KEYPAD .
2 . Enter the Dispense Keypad address found on the back of the keypad . Use only
the last 8 characters as shown here:
Keypad address
3 . The ID field automatically displays the next available sequential number .
4 . Click SAVE .
Adding Hoses
Once you have added a keypad, you can begin adding hoses associated with it . You can also enter hoses not associated with
any keypad . You can drag and drop hoses to a keypad or between keypads .
To add hoses, fill in the information at the bottom right-hand corner of the Keypad
and Hoses screen:
1 . Enter the hose ID found on a tag on the meter .
2 . Enter the hose Address .
3 . Enter the Tank the fluid will be dispensed from .
4 . Enter the dispenser Units of measure of the meter .
5 . Click SAVE .
After the hose is added, it will appear under the Unused Hoses section or under the selected keypad .
Associating an Unused Hose with a Keypad
To associate an unused hose with a keypad:
1 . Drag and drop the hose from the Unused Hoses section to the keypad section .
OR
2 . Move it manually by selecting the hose(s) from the list on the right and
assigning them to keypads using the drop-down next to the Move Hoses to:
field .
To delete a hose, select it on the left and click the DELETE HOSE button .
