HANDHELD STATUS INDICATORS

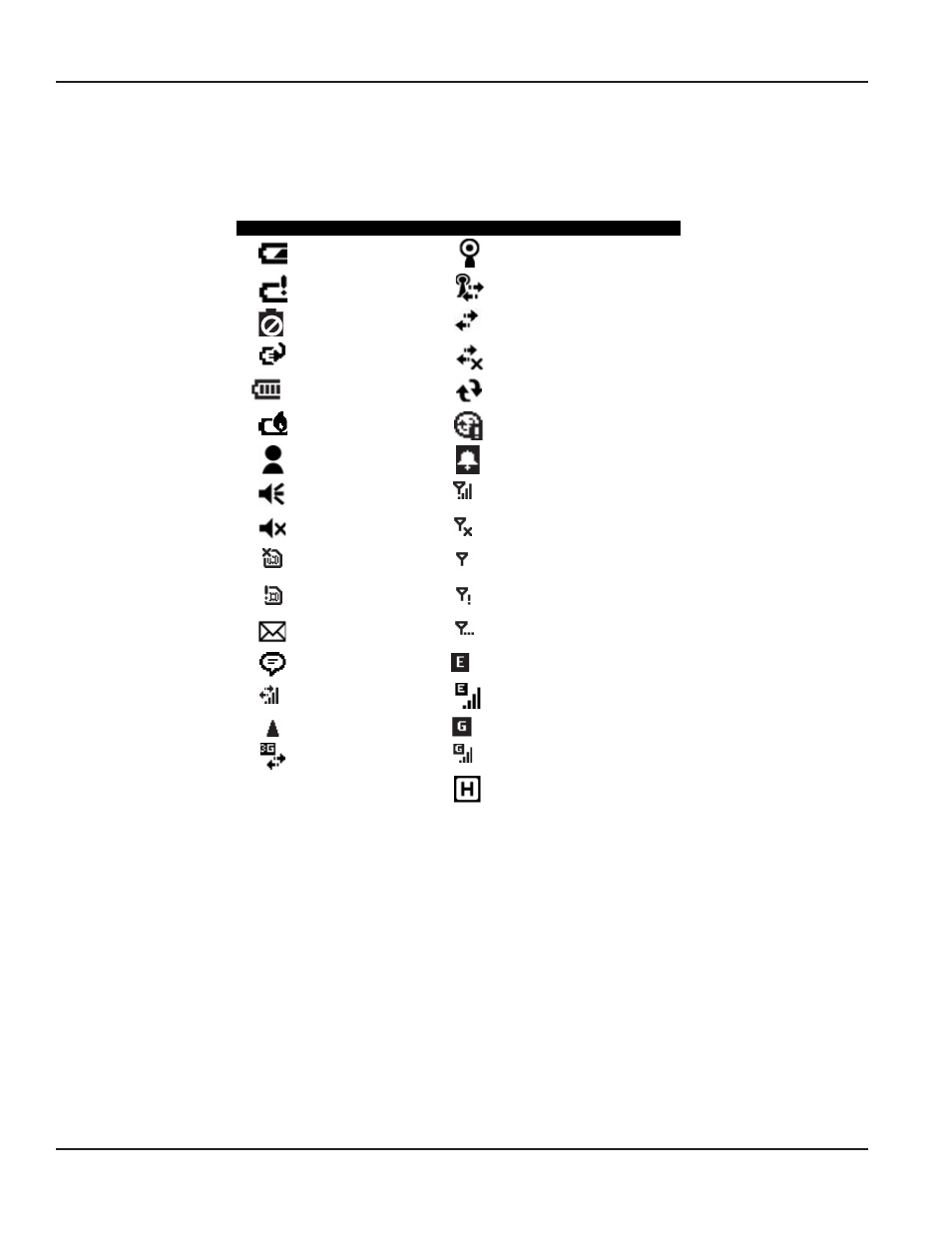

Status indicators may display at the top of the screen The status indicator icons are shown here with a description of what
they indicate
15
Status Indicators
Icon Description Icon Description
Battery power is low
Other networks are detected. Tap to
access an available network
Battery power is very
low Wireless network connected
Battery
communication error Active connection, but not currently
synchronizing
Battery charging Inactive connection to computer or
wireless network
Battery level Synchronizing
Battery warning out of
temperature range Synchronizing error
Instant messages
received Pending alarm
Speaker is on Phone is turned on and signal
strength
Speaker is off (or in
mute position) Phone is turned off. To turn it on,
tap this icon
SIM card missing No signal
Faulty SIM card No service. Phone connection
unavailable or network error.
E-mail has been
received Lost signal. The unit is searching for
a signal.
Tap to view more
notifications EDGE network is available
Data call is in
progress EDGE network connected
Roaming mode GPRS network available
3G connected GPRS network connected
HSDPA network available
