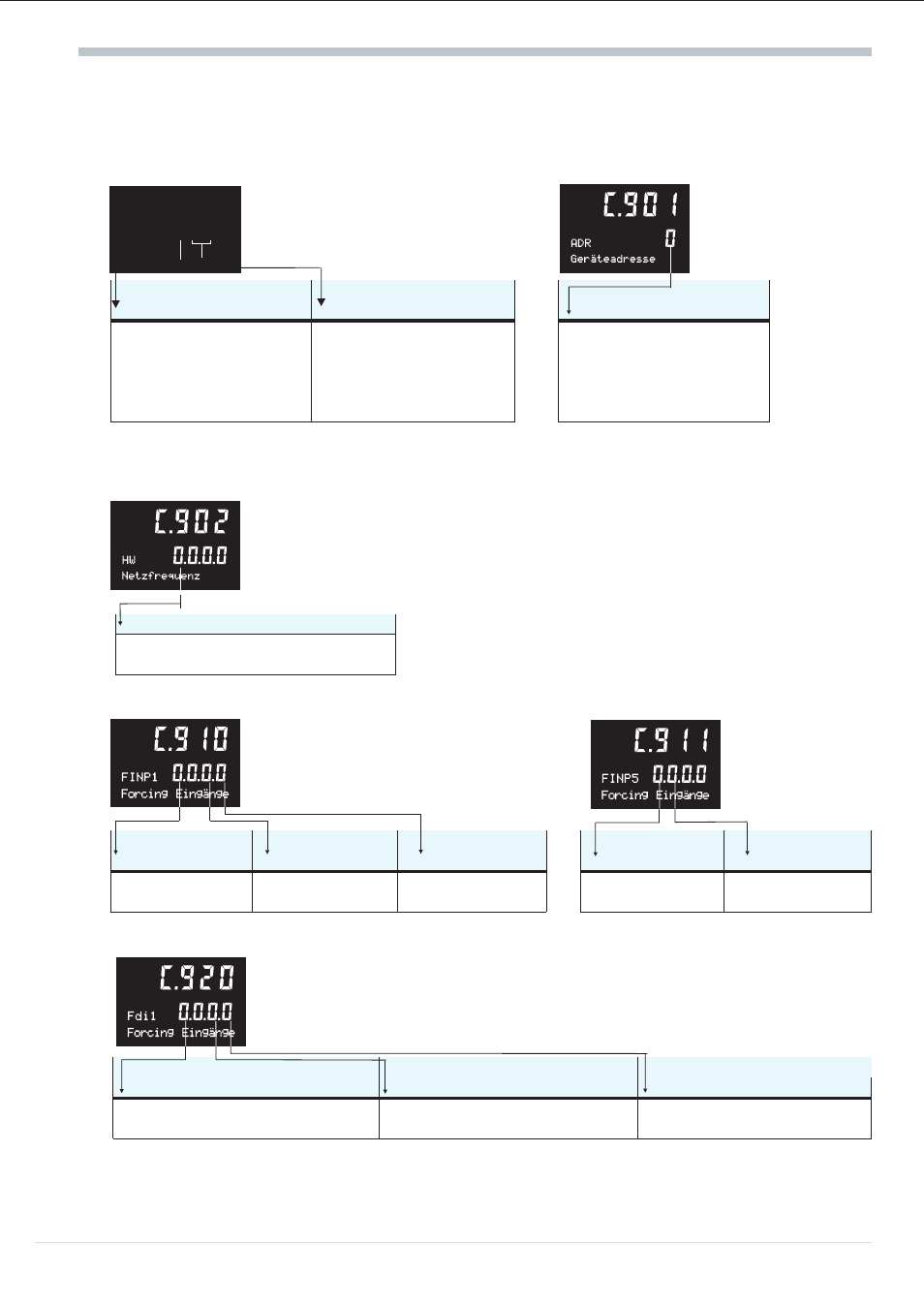

10.11 AUX: Additional functions
The interface function and operating frequency for suppression of interference on inputs are
configured.
10.11.1 COM (serial interface)
Mainconfiguration:
(IS01745, PROFIBUS)
Only with HW option B
Prot
Baud
Addr
(Interface protocol)
(Baud rate)*
(Interface address)
0: IS0174
00: not adjustable
01: 2400 Bd
02: 4800 Bd
03: 9600 Bd
04: 19200 Bd
ISO1745
0 ... 99 (default 0)
PROFIBUS-DP
1...128 (default 128)
*PROFIBUS: automatic baud rate detection
10.11.2 Hardware
The hardware-related functions are configured.
Main configuration:
Operating frequency for suppression of interference on inputs is configured.
Frq (Mains frequency)
0: 50 Hz
1: 60 Hz
10.11.3 Forcing signal input
All configuration for forcing ar only
present by PROFIBUS-DP
FINP1
FINP3
FINP4
FINP5
FINP6
(Forcing input 1) (Forcing input 3) (Forcing input 4)
(Forcing input 5) (Forcing input 6)
0: Controller value
1: Forcing
0: Controller value
1: Forcing
0: Controller value
1: Forcing
0: Controller value
1: Forcing
0: Controller value
1: Forcing
10.11.4 Forcing digital input
10.11.5
Fdi1
Fdi2
Fdi4
(Forcing digital input 1)
(Forcing digital input 2)
(Forcing digital input 4)
0: Controller value
1: Forcing
0: Controller value
1: Forcing
0: Controller value
1: Forcing
Configuration
4
33
