10.7 OUTPT: outputs

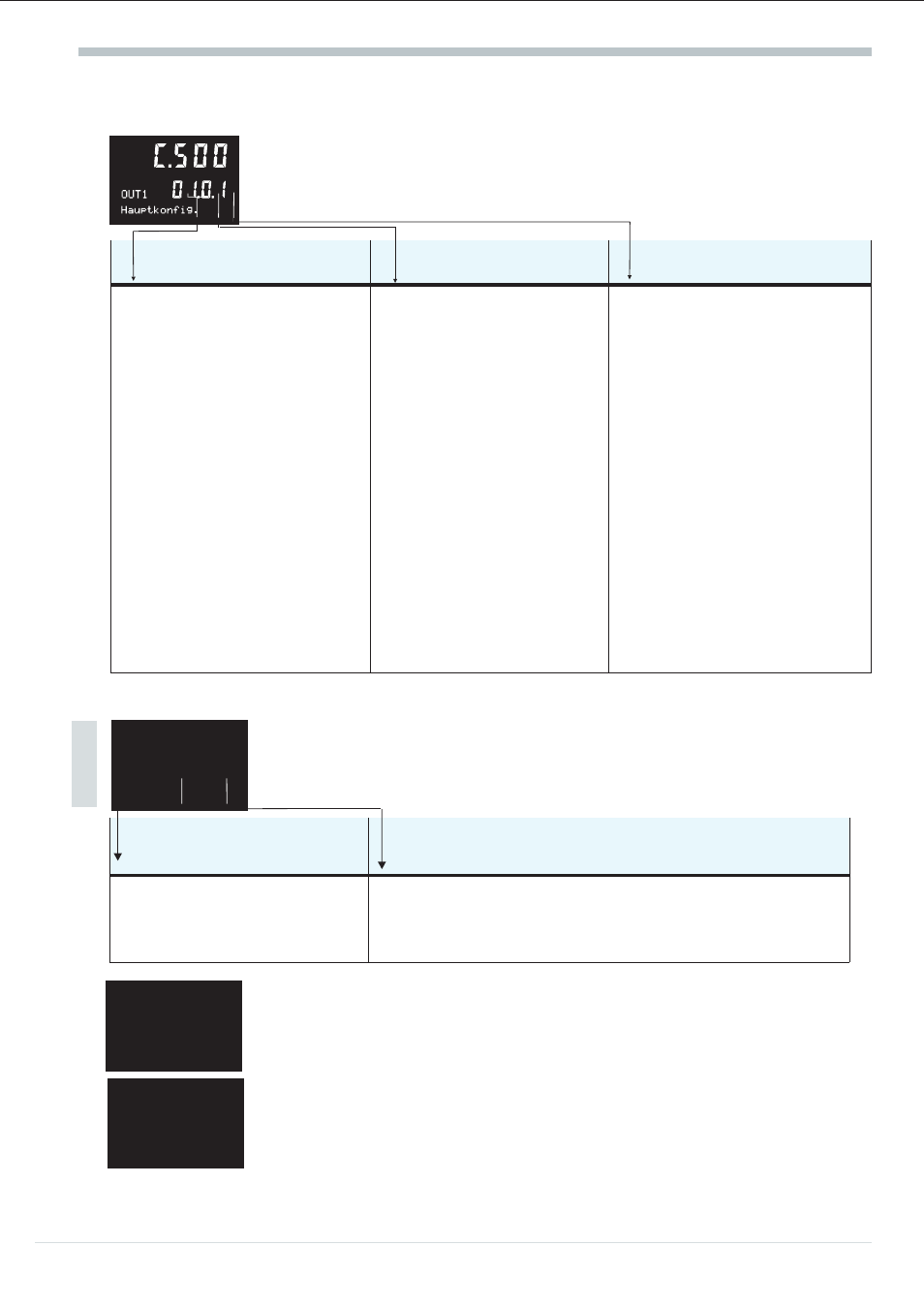

10.7.1 Signal output 1 / OUT1
Used for configuring the source of output OUT1. This signal output is a universal
output which can be configured for extensive functions.
Main configuration:
Src Type Mode
(Signal source) (Output stage) (Motor actuator output action)
00: output switched of
01: controller output Y1/Yout1
02: controller output Y2/Yout2
03: output Ypid
04: position feedback Yp
05: controlling deviation Xw
10: process value Xeff
11: X1
12: X2
13: X3
20: set-point W
21: external set-point Wext
22: external offset dWe
23: set-point Weff
24: programmer set-point Wprg
25: alarm 1 (limit1)
26: alarm 2 (limit2)
27: alarm3 (limit3)
28: alarm 1 (limit4)
0: relay (switching)
1: 0 ... 20 mA (continuous output)
2: 4 ... 20 mA (continuous output)
3: 0 / 20 mA (logic)
0: not selectable
1: direct / normally open
2: inverse / normally closed
Additional configuration Out1:
Via the options configuration, the functionality for a signal post-processing stage
can be determined.
This configuration word is displayed only with the option enabled.
Func Dp
(Function selection for signal
output processing)
(decimal point for xsi,x0,x100)
0: no function, signal is output
without change (0%...100%)
1: scaling (reference values C.510
and C.511 are effective)
0: no decimal point
1: 1 digit behind decimal point
2: 2 digits behind decimal point
3: 3 digits behind decimal point
X0:
(physical value at 0%)
Numeric value -999 ... 9999
x100:
(physical value at 0%)
Numeric value -999 ... 9999
Configuration
27 Operating instruction KS94
More
C.505
OUT1
0.0.0.0
Zusatzkonfig.
C.510
x0
Bezugswert 0%
0
C.511
x100
Bezugswert 100%
100
