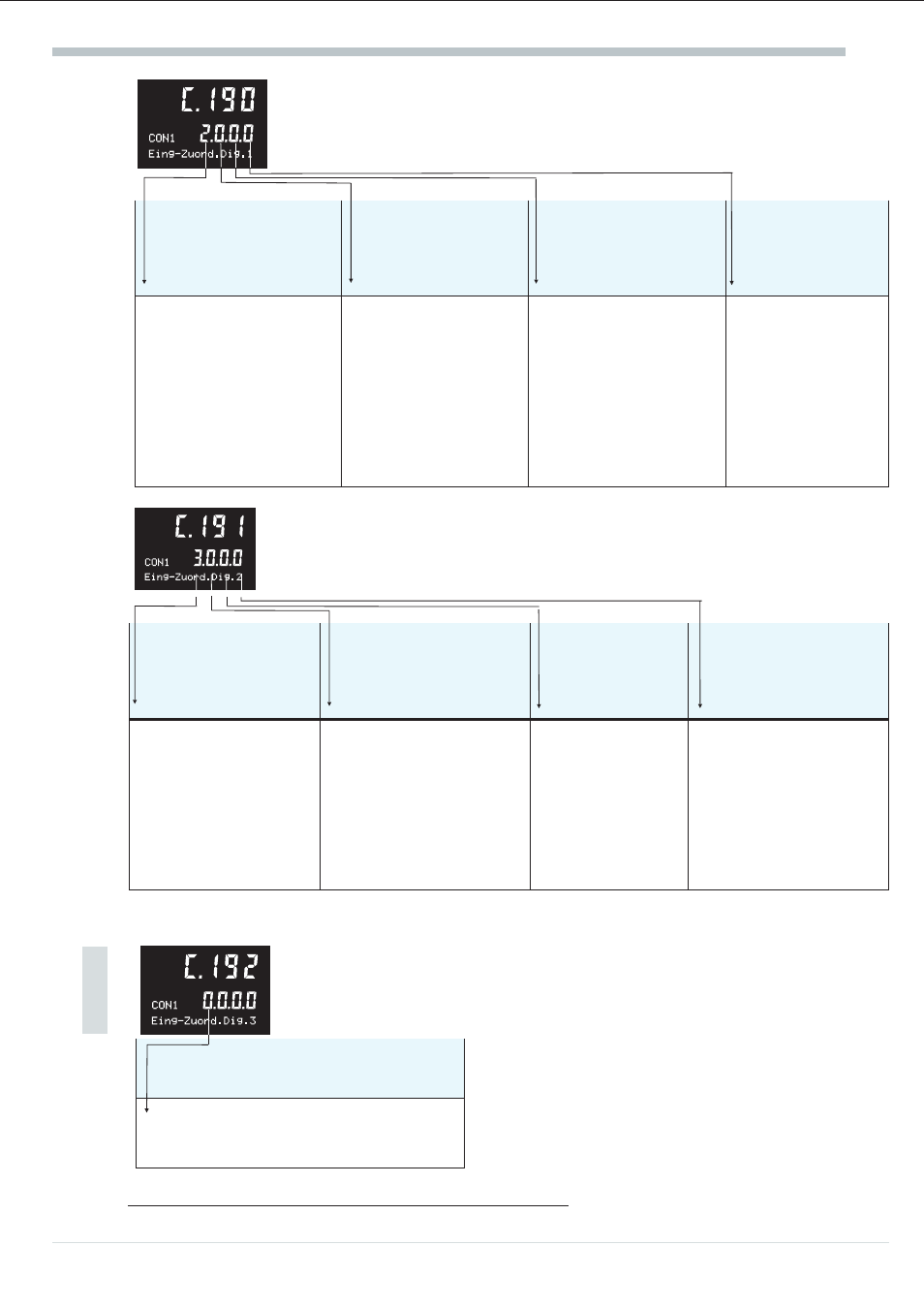

Allocation of digital signals for set-point processing:
SWi/e STrac SdWon Sw/W2
(Set-point switch-over
from internal to external) 1)
(Bumpless switch-over
to int. set-point with
int./ext. switch-over )
(Effective set-point
offset)
(Switch-over to
set-point w2)
0: only internal set-point
1: W/Wext via front
2: di1=external set-point
3: di2=external set-point
4: di1= internal set-point
5: di2= internal set-point
0: no tracking
2)
1: tracking on
2: di2 = tracking on
3: di12 = tracking on
4: di2 = tracking off
5: di12 = tracking off
0: no offset
2)
1: offset on
2: di1 = offset on
3: di2 = offset on
4: di11 = offset on
5: di1 = offset off
6: di2 = offset off
7: di11 = offset off
0: no W2
2)
1: fixed to W2
2: di1 = W2
3: di2 = W2
4: di12 = W2
5: Timer = W2
6: di1 = W
7: di2 = W
8: di12 = W
Allocation of digital signals for the controller functions:
S A/M SPI/P SY2on SCoff
(Automatic / manual
(manual switch-over)
(3.pnt.stepping controller:
feedback off, otherwise
PI / P switch-over)
(Output of safe
correcting value)
(Switch-off controller)
0: auto/manual via front
1: fixed to manual
2: di1 = manual
3: di2 = manual
4: Backup run
5: di1 = auto
6: di2 = auto
0: PI fixed
2)
1: fixed to P action
2: di1 = P action
3: di2 = P action
4: di1 = PI action
5: di2 = PI action
0: Y no Y2)
2)
1: fixed to Y2
2: di1 = Y2
3: di2 = Y2
4: timer = Y2
5: di1 = Y
6: di2 = Y
0: controller on/off via
front (W = ‘——’)
1: controller fixed to off
2: di1 = controller off
3: di2 = controller off
4: timer= controller off
5: di1= controller on
6: di2= controller on
Allocation of digital signals for the programmer:
(only with programmer configured)
SPrSt
(Signal source for programmer run/stop)
0: Run/Stop: Front
1: Run/Stop: di4
2: Run/Stop: di4 and timer 1
Configuration
Operating instruction KS94 22
More
1) With the programmer configured, switch-over is between internal and external program set-point.
2) Can be switched over via interfaces (e.g. engineering tool; operating data)
