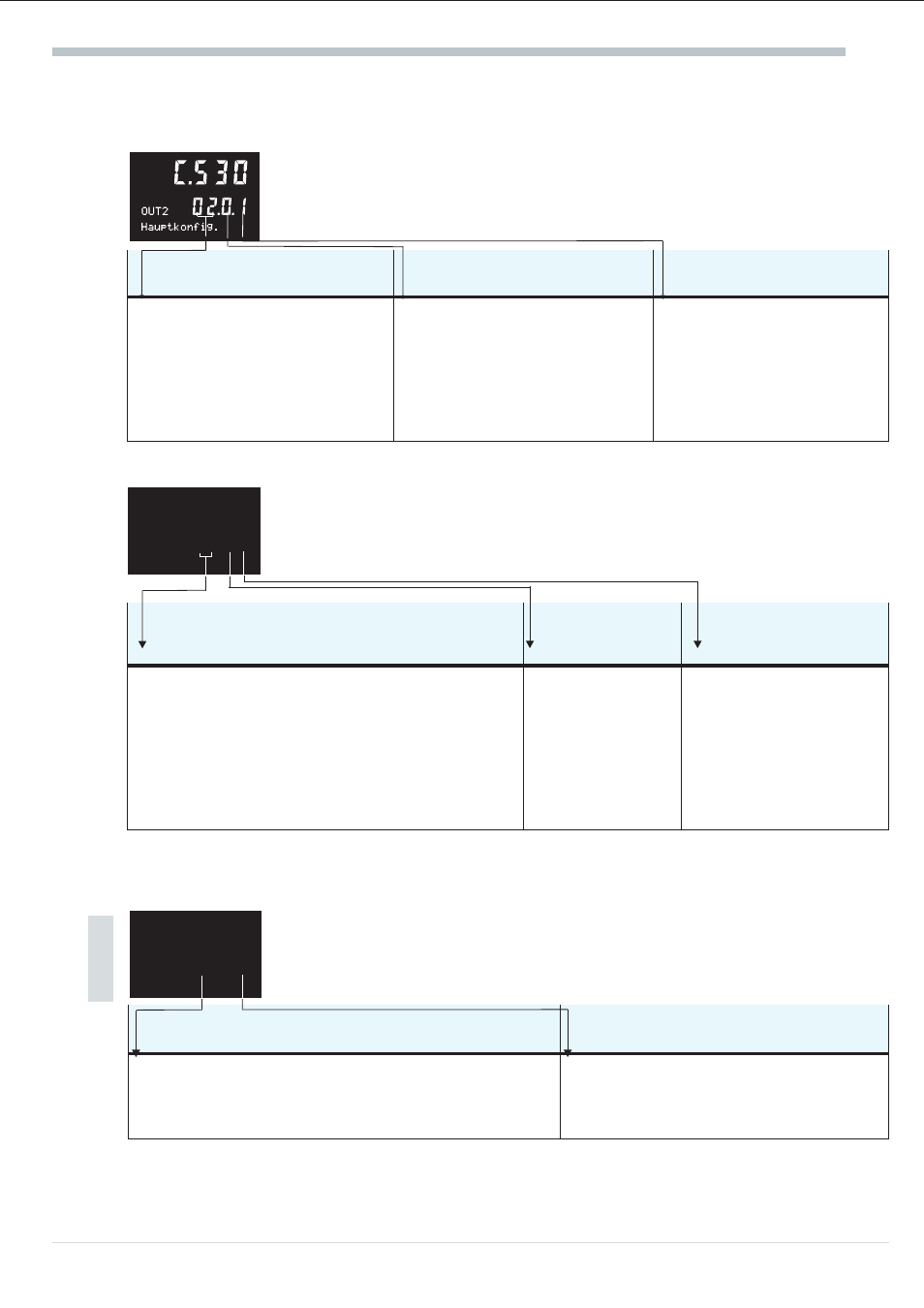

10.7.2 Signal output 2 / OUT2
Used for configuring the source of output OUT2. This signal output is a universal output and can be
configured for extensive functions.
Main configuration:
Src Type Mode
(Signal source) (Output stage) (Motor actuator output action)
00: output switched off
01: controller output Y1/Yout1
02: controller output Y2/Yout2
25: alarm1 (limit1)
26: alarm2 (limit2)
27: alarm3 (limit3)
28: alarm4 (limit4)
0: relay (switching) 0: not selectable
1: direct / normally open
2: inverse / normally closed
10.7.3 Signal output 3 / OUT3
Used for configuring the source of output OUT3. This signal output is a universal
output and can be configured for extensive functions.
Main configuration:
Selection is only possible with option C fitted.
Src Type Mode
(Signal source) (Output stage)
(Motor actuator output
action)
00: none (output switched off)
01: controller output Y1/Yout1
02: controller output Y2/Yout2
03: controller output Ypid
04: position feedback Yp
05: control deviation xw
10: process value xeff
11: process value x1
12: process value x2
13: process value x3
20: set-point Wint
21: ext. set-point Wext
22: ext. Offset dWe
23: set-point Weff
24: programmer Wprg
0: switched off
1: 0 ... 20 mA
(continuous
output)
2: 4 ... 20 mA
(continuous
output)
3: 0 / 20 mA (logic)
0: not selectable
1: direct / normally open
2: inverse / normally closed
Additional configuration:
The optional configuration can be used for determining the functions for signal post-processing.This
configuration word is displayed only with the option enabled.
Func Dp
(Function selection for signal output processing) (decimal point for xsi,x0,x100)
0: no function, signal is output directly (0%...100%)
1: scaling (reference values C.570 and C.571 are effective)
2: linearization (segment points xs1,ys1 ...)
0: no decimal point
1: 1 digit behind the decimal point
2: 2 digits behind the decimal point
3: 3 digits behind decimal point
Configuration
Operating instruction KS94 28
C.560
OUT3
Hauptkonfig.
10.1.1
More
C.565
OUT3
Zusatzkonfig.
1.0.0.0
