10. Configuration
10.1 General
The KS94 controller configuration for quick and easy function selection during subsequent operation
is described in this section. During configuration, the required functions are selected from a large
variety of available functions. The configuration determines the basic structure for solution of an
application.
The configuration structure is designed so that determination of the required functions for a large
number of applications is possible by adjustment of as few configuration words as possible.
Moreover, the structure was designed flexible enough to permit additional configurations also for
realization of special applications.
10.2 Basic structure
The first menu level permits selection of the main configuration group.
The user can be guided through all function configurations, or he can configure the specific functions
required for his application directly.
For all ‘complex’ main groups, a two-level configuration concept which enables the user to select the
‘correct’ setting for his application by defining only one configuration word was determined. If
necessary, special functions can be determined separately. For the ‘normal user’, however, the
configuration words are preset to purposeful default values! For simplification, the hierarchic
configuration dialogue is structured so that the user can and must adjust only the ‘required’
configuration words.

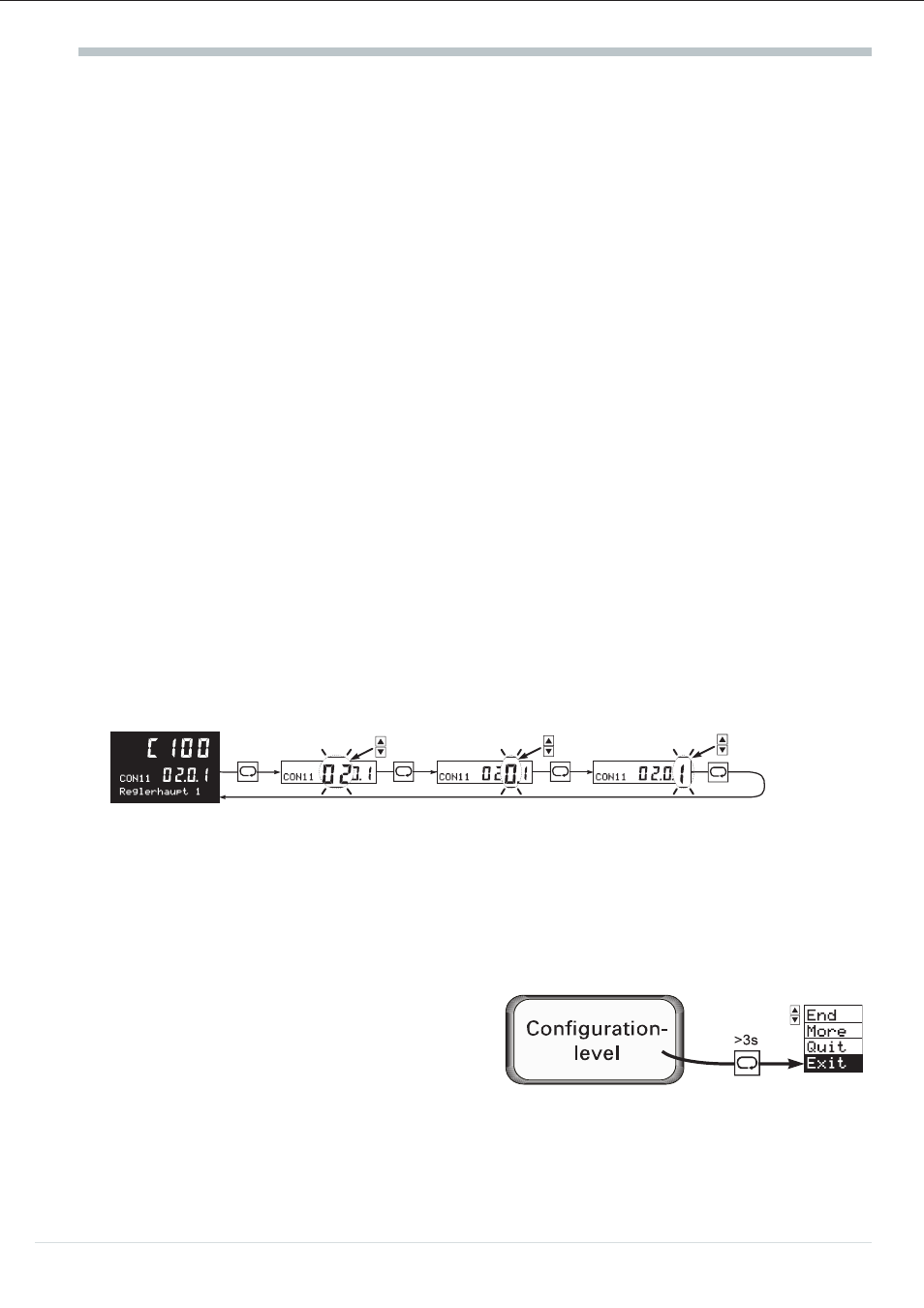

The user configuration dialogue is started via selector key M and ‘increment’ / ‘decrement’ keys
ID, like with the other KS92/94 operating levels:
w Press the selector key to select menu items / input values / input positions within a ‘level’ and to
change over to the next higher level at the end of a ‘level’.
w Press the ‘increment’ / ‘decrement’ keys for returning to a lower level and for modification of input
values.
The configuration structure is shown on the two following pages (16 and 17). All possible
configuration words are listed. Configuration words which are irrelevant for a function are not
displayed during the dialogue!
Switch-over to a selection menu is possible from anywhere during configuration by pressing key M >3s.
End: Return to configuration level
More: Activating the More function
Quit: Return to operating level
(configuration changes are not effective)
Exit: Return to operating level (configuration
changes are effective and the controller
is re-initialized).
Configuration
