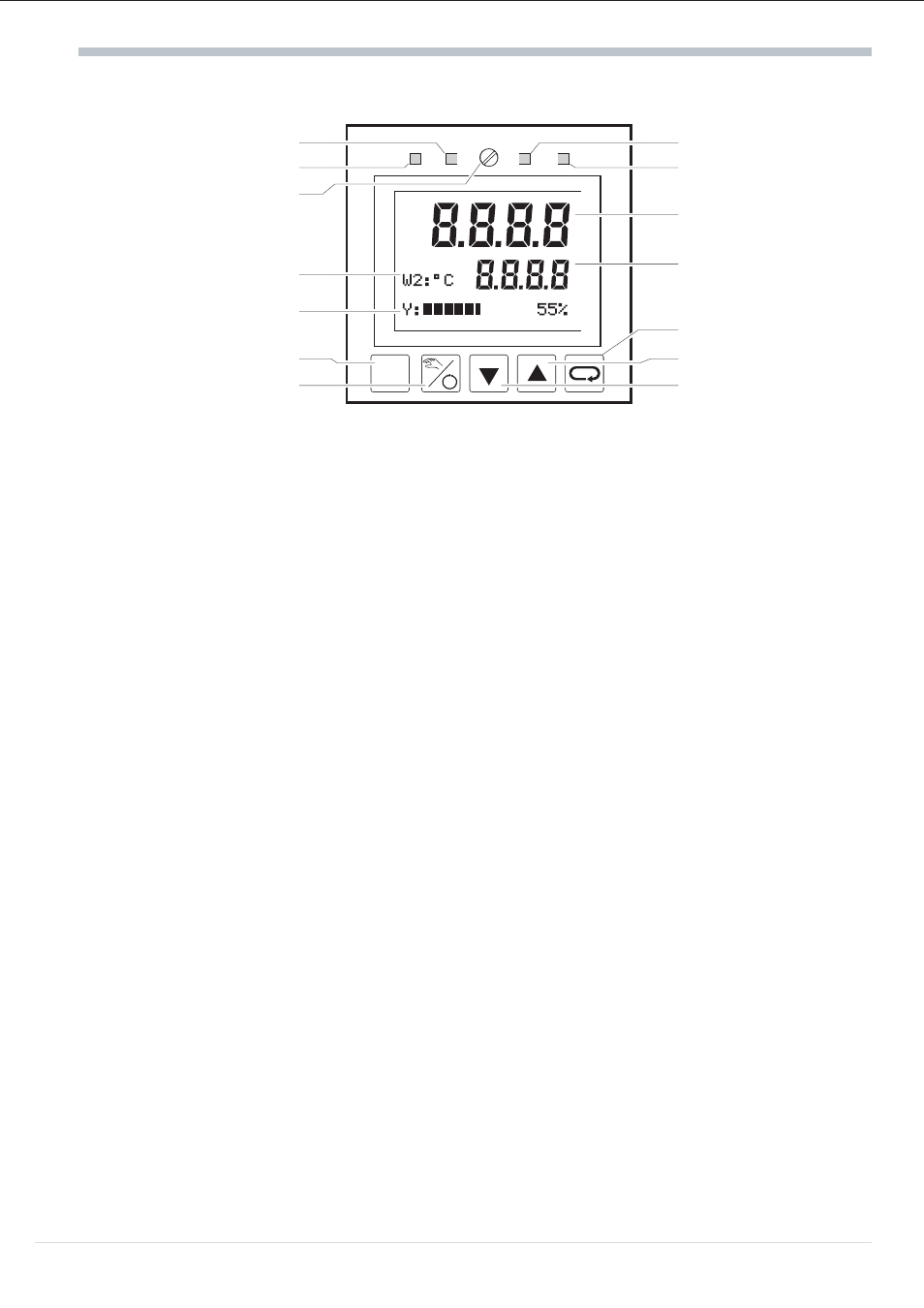

1. Front view
English
LED 2 e.g. Cooling LED 3 e.g. Alarm 1
LED 1 e.g. Heating LED 4 e.g. Alarm 2
Locking screw
Display 1 e.g. Process value
Text 1 e.g. physical unit Display 2 e.g. Set-point
Text 2 e.g. Bargraph / Dialogue
Selection key
PC interface Increment key (z)
Manual/Automatic key Decrement key (u)
w Locking screw: Locks the controller module in the housing.
w LEDs: indicates the statuses of controller outputs Y1, Y2 and alarms LIM1, LIM2 (other settings at
configuration level C.800 r page 30).
w Display 1: indicatess process value at operating and parameter level, or the configuration code at
configuration level.
w
Display 2: indicates the set-point (automatic mode) or the correcting value (manual mode) in operating
level. The values are adjustable directly with ID. Further displays at operating level r page 9. In
parameter and configuration level, values and codes described with text1 are indicated (r page 12).
w Text 1: indicates the short-form dialogue or the unit of display 2.
w Text 2: indicates the output bargraph (other selections possible in configuration level C.800).
Keys HDIM: For the certain function r pages 9 and 12.
w PC interface: PC connection for configuration/parameter setting/operation with an engineering tool.
2. Safety notes
Following the enclosed safety instructions 9499 047 07101 is indispensable!
The insulation of the instrument conforms to EN 61 010-1 with pollution degree 2, overvoltage
category III, operating voltage 300 V and protection class I. Additional with horizontal installation, a
protection to prevent live part, e.g. wire ends, from dropping into the open housing of a withdrawn
controller must be fitted.
3. Electromagnetic compatibility
The instrument conforms to European Directive 89/336/EEC and will be provideed with the
CE-marking. The following European Generic Standards are met: Emission: EN 50081-2 and
Immunity: EN 50082-2. The unit is suitable for use in industrial areas (in residential areas, RF
interference may occur). The electromagnetic radiation can be reduced decisively by installing the
unit in a grounded metal switch cabinet.
4. Technical data r data sheet, order no. 9498 737 28233
