x0:
(physical value at 0%)
numeric value -999 ... 9999
x100:
(physical value at 100%)
numeric value -999 ... 9999
The configuration parameters for linearization are stored as
follows.

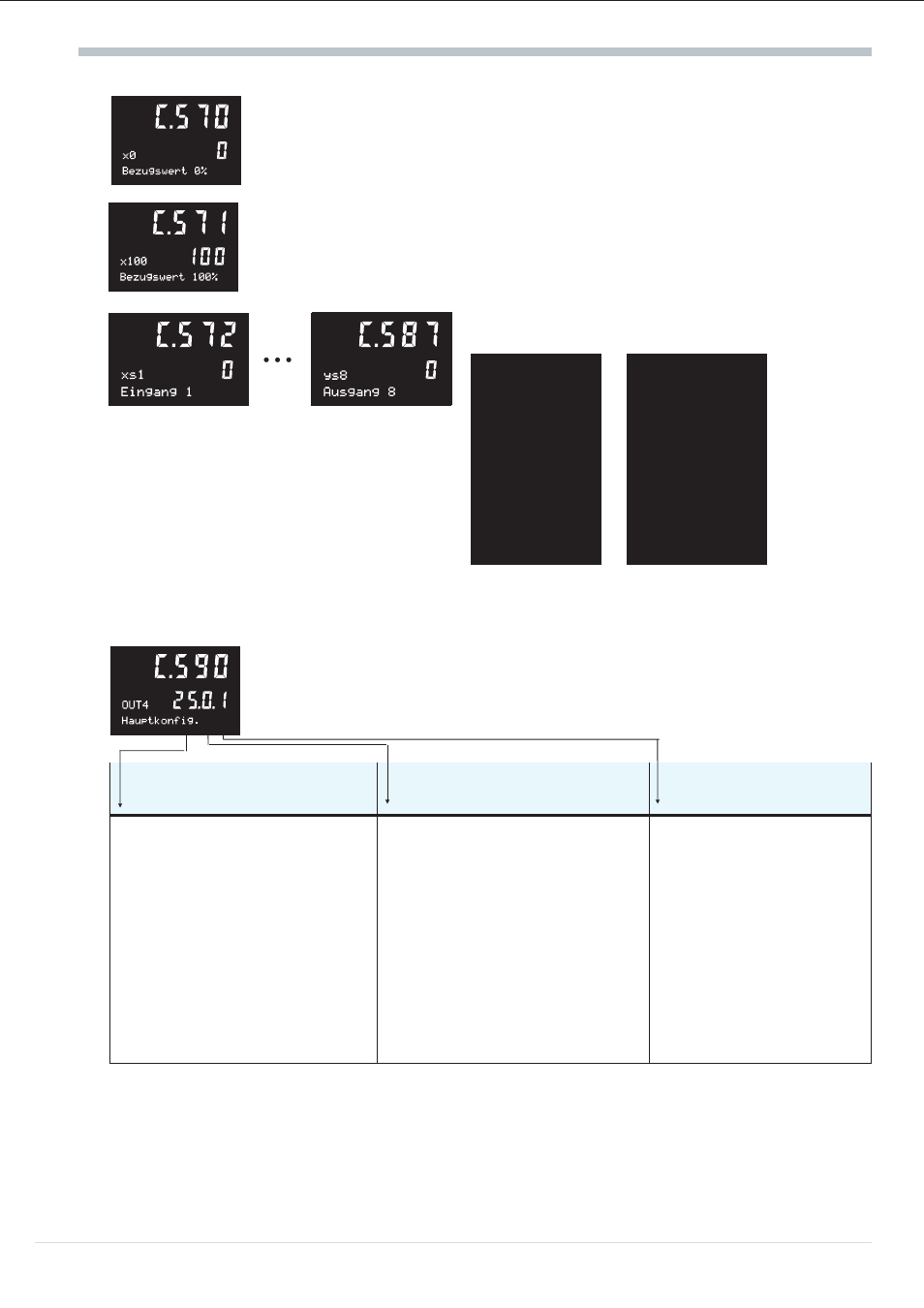

C.572 xs1 C.573 ys1 value pair 1
C.574 xs2 C.575 ys2 value pair 2
C.576 xs3 C.577 ys3 value pair 3
a
Note that the input values (x-values)
must be entered in ascending order.
(xs1
C.578 xs4 C.579 ys4 value pair 4
C.580 xs5 C.581 ys5 value pair 5
C.582 xs6 C.583 ys6 value pair 6
C.584 xs7 C.585 ys7 value pair 7
C.586 xs8 C.587 ys8 value pair 8
The range for these configuration words is within -999 and
9999 or ‘——’ (switched off)!
10.7.4 Signal output 4 / OUT4
Used for configuring the source of output OUT4. This signal output can be
configured for extensive functions.
Main configuration:
Src Type Mode
(Signal source) (Output stage) (Actuator output action)
00: output switched off
01: controller output Y1/Yout1
02: controller output Y2/Yout2
25: alarm 1 (limit1)
26: alarm 2 (limit2)
27: alarm 3 (limit3)
28: alarm 4 (limit4)
29: programmer output 1
30: programmer output 2
31: programmer output 3
32: programmer output 4
33: program end
0: relay (switching) 0: not selectable
1: direct / normally open
2: inverse / normally closed
Configuration
