10.3 Main groups
The following main configuration groups are available for KS9x controller configuration:
Contr Controller function C.100 ... C.139 Ä page 19
Sourc Input allocation C.180 ... C.192 Ä page 21
Input Input function C.200 ... C.487 Ä page 23
Outpt Output function C.500 ... C.597 Ä page 27
Alarm Alarm function C.600 ... C.660 Ä page 31
Tune Self-tuning C.700 Ä page 32
Disp User interface C.800 Ä page 32
Aux Additional function C.900 ... C.994 Ä page 33
The main configuration groups are structured in a hierarchical order, whereby determination of a
dialogue for prompting only the really relevant configurations is possible.
g

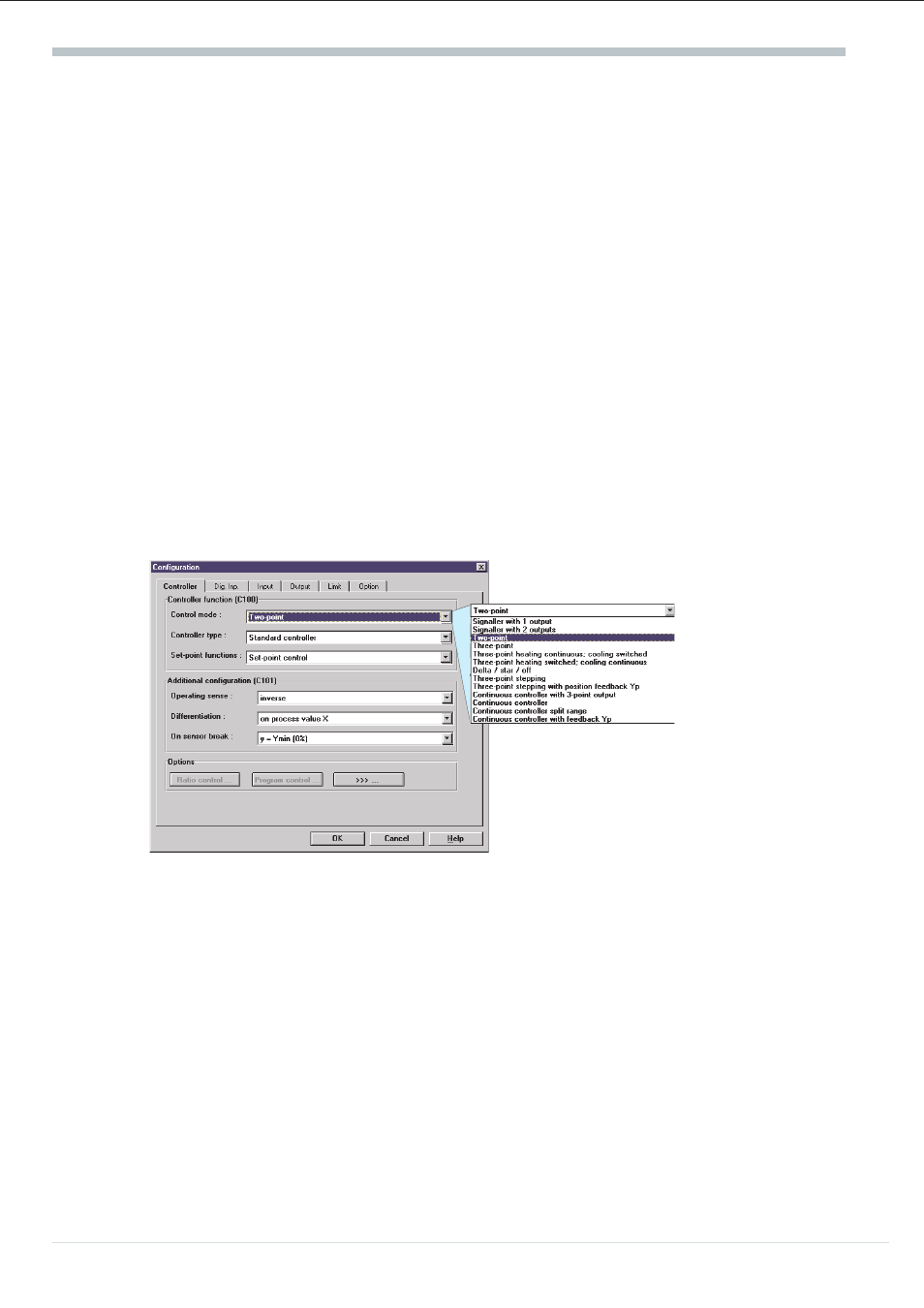

ENGINEERING TOOL ‘ET/KS 94’
Engineering Tool ET/KS94 permits realization of all operations which are possible via the KS94
front panel on a PC, whereby controller configuration and parameter setting are facilitated
considerably.
The engineering tool offers the following functions:
q Creation and modification of the parameter set
q Transmission of a parameter set to KS94
q Read-out of a parameter set from a KS94
q Long-term storage of various parameter sets on hard disk or floppy
q Display of operating data
Connection of PC and KS94 controller is via an RS232/TTL adaptor cable, which must be ordered
separately (ordering information r see page 43 section 12 ). In conjunction with the ‘SIM/KS 94’
controller simulation, a graphic trend display of the real process data is available!
