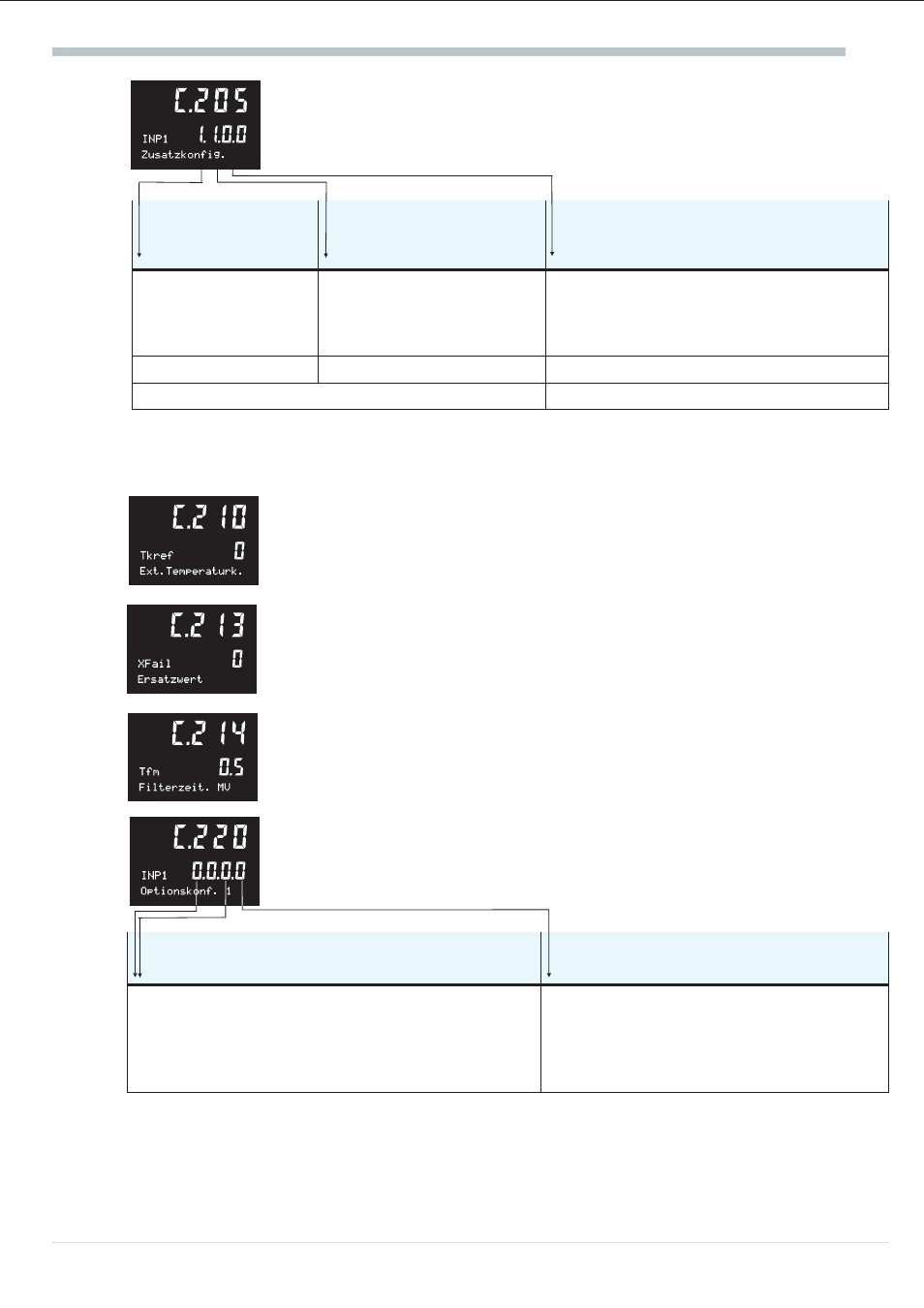

Additional configuration:
Via the additional configuration, the default setting for the signal input can be
changed or matched dependent of sensor type class.
Fail STk XKorr
(Signal behaviour with
sensor fault)
(Temperature
compensation)
(Process value correction enable)
1: upscale(X100)
2: downscale(X0)
3: XFail (C.213)
0: not effective
1: internal TC
2: external TC
(TC fixed in C.210!)
0: not effective
1: with process value correction (adjustable via
parameters x1in,x1out,x2in,x2out)
Type: 00...26, 31, 40 type: 00 ... 09
Non-selectable digits are marked by ‘0’
Tkref:
(external TC)
numeric value:-99 ... 100 °C or °F
select only with type: 00...08 and STk = 2
XFail:
(substitute value with sensor error)
numeric value: -999 ... 9999
Tfm:
(filter time constant for input value processing)
numeric value: 0.0 ... 999.9
Optional configuration 1:
The optional configuration can be used to determine the functions
for two signal pre-processing levels.
Func1, Func2 LDp
(Function selection for signal pre-processing) (decimal point for gain, Xeff and yki)
0: no function, signal is output directly
1: scaling (parameters: m,b)
2: linearization (segment points xs1,ys1 ...)
3: filter (parameter: Tf)
4: square root extraction with factor (parameter:gain)
0: no decimal point
1: 1 digit behind the decimal point
2: 2 digits behind the decimal point
3: 3 digits behind decimal point
Configuration
Operating instruction KS94 24
