10.4 CONTR: Controller

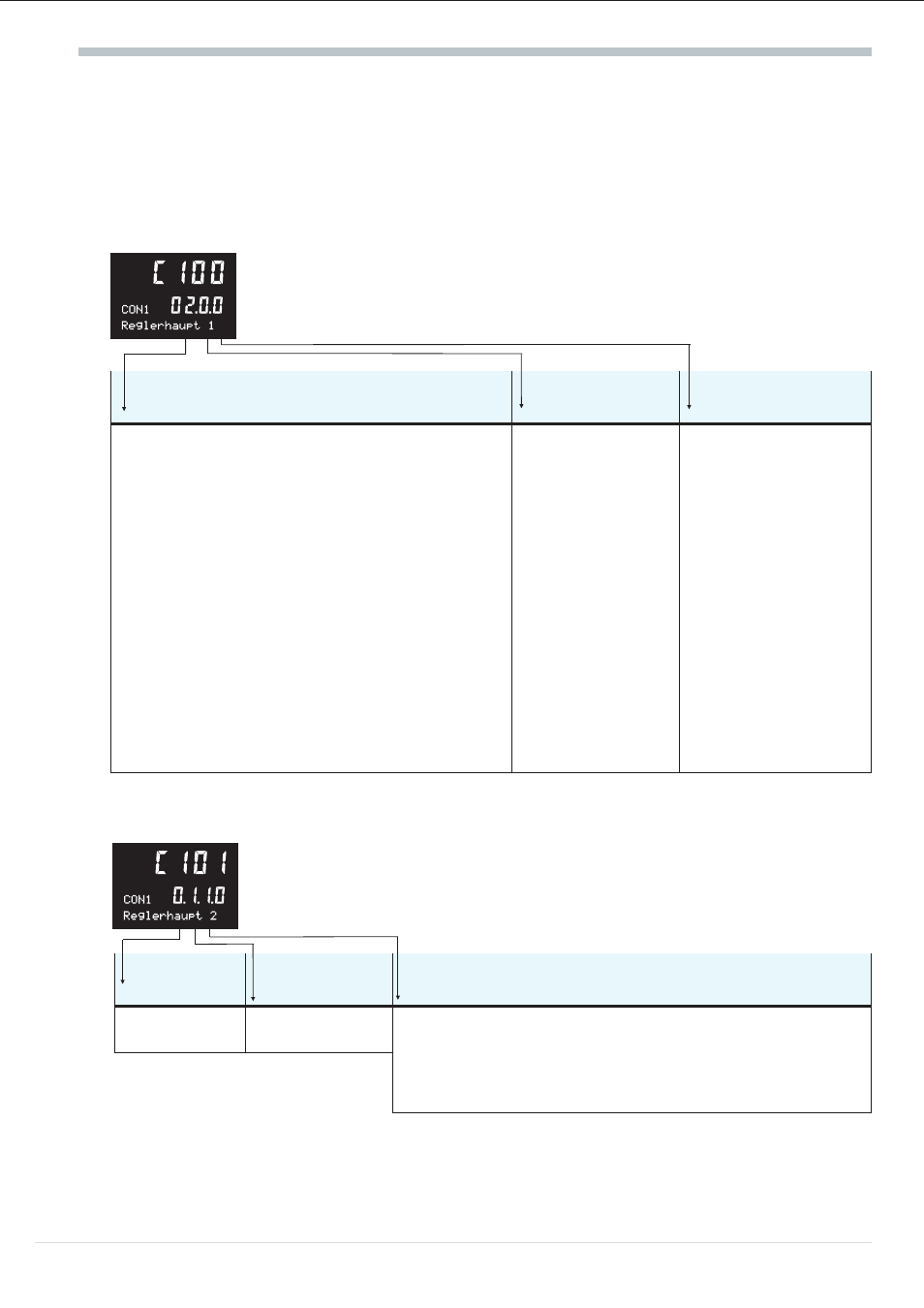

This main group determines the controller structure and function, which is used as starting point for
controller configuration for a particular application. The main controller configuration C.100 leads to
an input and output pre-adjustment (C.180.. C.190, C.500.. C591). This ‘proposal’ must always be
checked before commissioning and corrected, if necessary. After determination of this word, no
further settings are required for a large number of applications. Additional function adaptions are
possible via configuration words C.105 and the following configurations.
Main controller configuration 1:
CFunc CType WFunc
(Control behaviour) (Controller type) (Set-point function)
00: signaller 1 output
01: signaller 2 outputs
02: 2-pnt.controller
03: 3-pnt.controller
(heating switching and cooling switching)
04: 3-pnt.controller
(heating continuous and cooling switching)
05: 3-pnt.controller
(heating switching and cooling continuous)
06: {/Y-off
07: 3-pnt.stepping
08: 3-pnt.stepping with Yp (INP6)
09: continuous with position controler
10: continuous
11: continuous split-range
(only with Optin C; OUT1 and OUT3)
12: continuous with current feedback via Yp (INP6)
0: standard controller
1: ratio controller
(Ä C.107)
2: 3-element controller
x
eff
= x1+a w (x2-x3)
3: mean value
x
eff
= (1-b) w x1+b w x2
0: set-point
1: set-point / cascade
2: programmer
3: set-point with ext. offset
4: set-point / cascade with
internal offset
5: set-point / cascade with
external offset
6: programmer with
internal offset
7: programmer with
external offset
Main controller configuration 2:
CMode CDiff CFail
(Output action) (Differentiation) (Controller behaviour with main variable sensor break)
0: inverse
1: direct
0: differentiate Xw
1: differentiate X
0: neutral (controller outputs switched off)
1: Ypid = Ymin (0)
2: Ypid = Ymax (100)
3: Ypid = Y2 (adjustment via front panel not possible)
4: Ypid = Y2 (adjustment via front panel possible)
