1 INSTALLATION
1.1 UNPACKING
1. Remove the Controller from its packing. The Controller is supplied with a
panel gasket and push-fit fixing strap. Retain the packing for future use,
should it be necessary to transport the Controller to a different site or to
return it to the supplier for repair/testing.
2. Examine the delivered items for damage or deficiencies. If any is found,
notify the carrier immediately.
1.2 PANEL-MOUNTING
The panel on which the Controller is to be mounted must be rigid and may be up
to 6.0mm (0.25 inches) thick. The cut-out required for a single Controller is as
shown in Figure 1-1.
Several controllers may be installed in a single cut-out, side-by-side. For n
Controllers mounted side-by-side, the width of the cut-out would be:
1
16
-DIN & 1
8
-DIN: (48n - 4) millimetres or (3.78n - 0.16) inches
1
4
-DIN: (96n - 4) millimetres or (7.56n - 0.16) inches
The main dimensions of the Controller are shown in Figure 1-2.
O054-1 1-1
59125

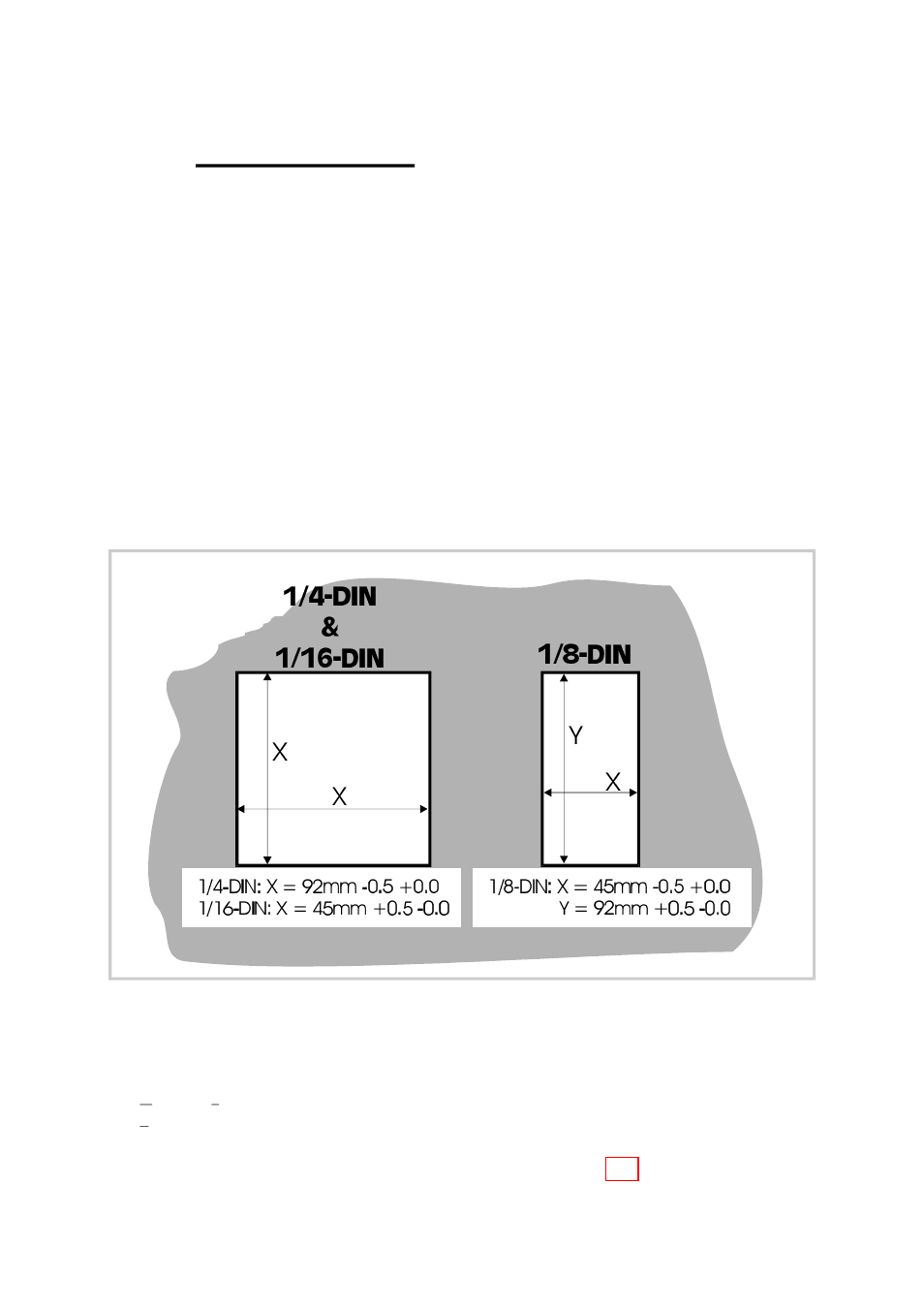

Figure 1-1 Cut-out Dimensions
