West Control Solutions N8100 - Manual (Page 15)

O054-2 2-4
59125
Parameter Legend Adjustment Range Default Value
Loop Alarm Enable 0 (Disabled) or 1 (Enabled) 0
Loop Alarm Time 6 1s to 99m 59s 99m 59s
Scale Range Decimal Point 4 0, 1, 2 or 3 1
Scale Range Maximum 4 -1999 to 9999 1000
Scale Range Minimum 4 -1999 to 9999 0000
Auto Pre-Tune Enable/Disable 0 (Disabled) or 1 (Enabled) 0
Manual Control
Enable/Disable
0 (Disabled) or 1 (Enabled) 0
Setpoint Ramp Enable/Disable 0 (Disabled) or 1 (Enabled) 0
Setpoint Strategy 1, 2, 3, 4 or 5 1
Communications Enable 8 0 (Disabled) or 1 (Enabled) 1 (Enabled)
Lock Code 0 to 9999 10
Operator Mode Displays
(still accessible in Set Up
Mode):
Process Variable
Read Only -
Setpoint 10 Setpoint Low Limit to Setpoint
High Limit
Setpoint Low Limit
Ramping Setpoint value 7 Read only
Setpoint Ramp Rate 9 1 to 9999 and OFF OFF (blank)
Alarm Status Read Only (see Subsection
1.3)
-

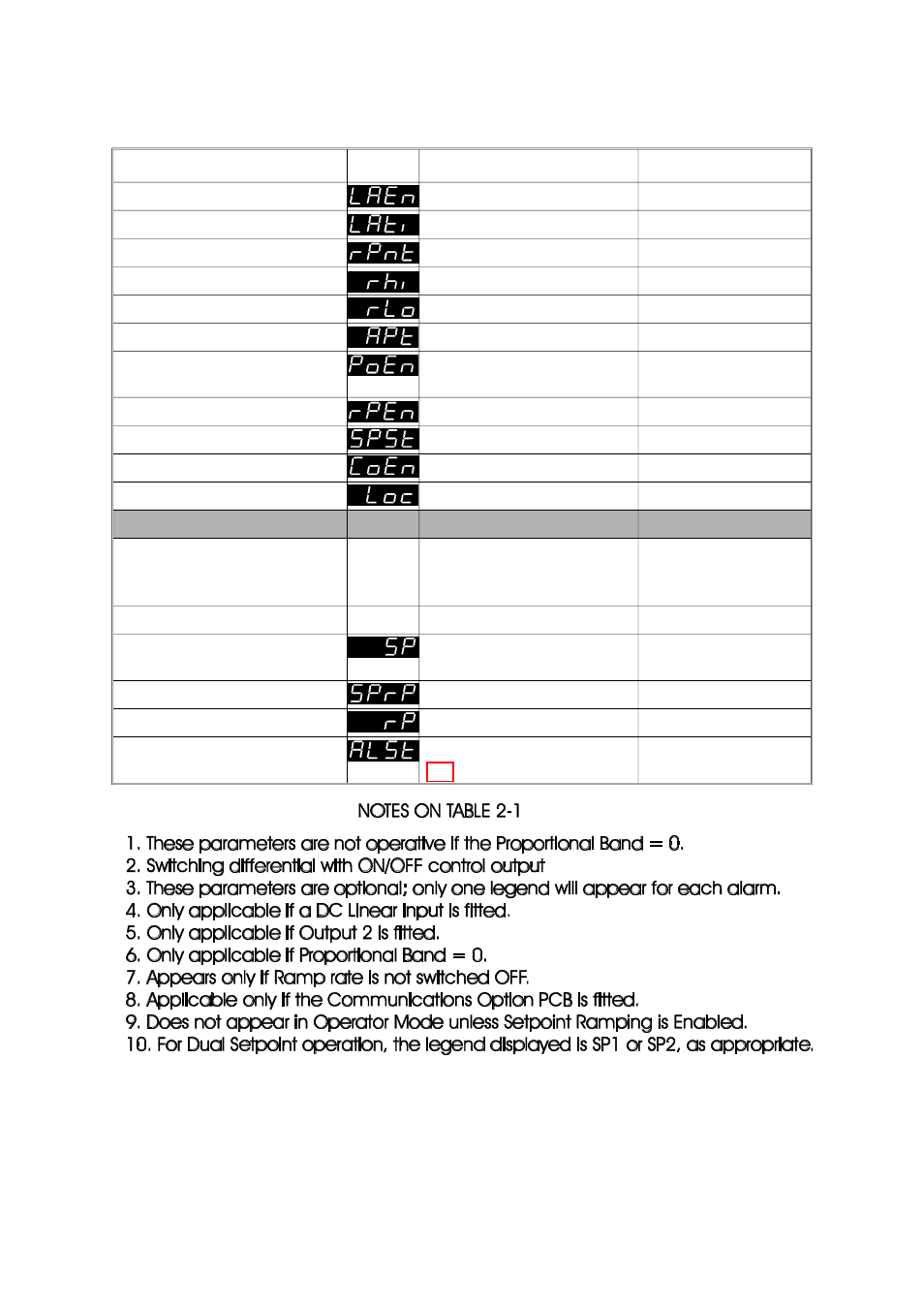

Table 2-1 Set Up Mode Parameters (cont.)
