Installation – KROHNE OPTIWAVE 7300C EN User Manual
Page 29
INSTALLATION
3
29
OPTIWAVE 7300 C
www.krohne.com
03/2014 - 4000172405 - HB OPTIWAVE 7300 R07 en
If the antenna is smaller than the process connection:
• Make sure the flange on the nozzle is level.
• Make sure that you use the applicable gasket for the flange dimensions and the process.
• Align the gasket correctly on the flange facing of the nozzle.
• Lower the antenna carefully into the tank.
• Tighten the flange bolts.
i
Refer to local rules and regulations for the correct torque to apply to the bolts.
Equipment needed:
• 3 mm Allen wrench (not supplied)
Requirements for flange connections

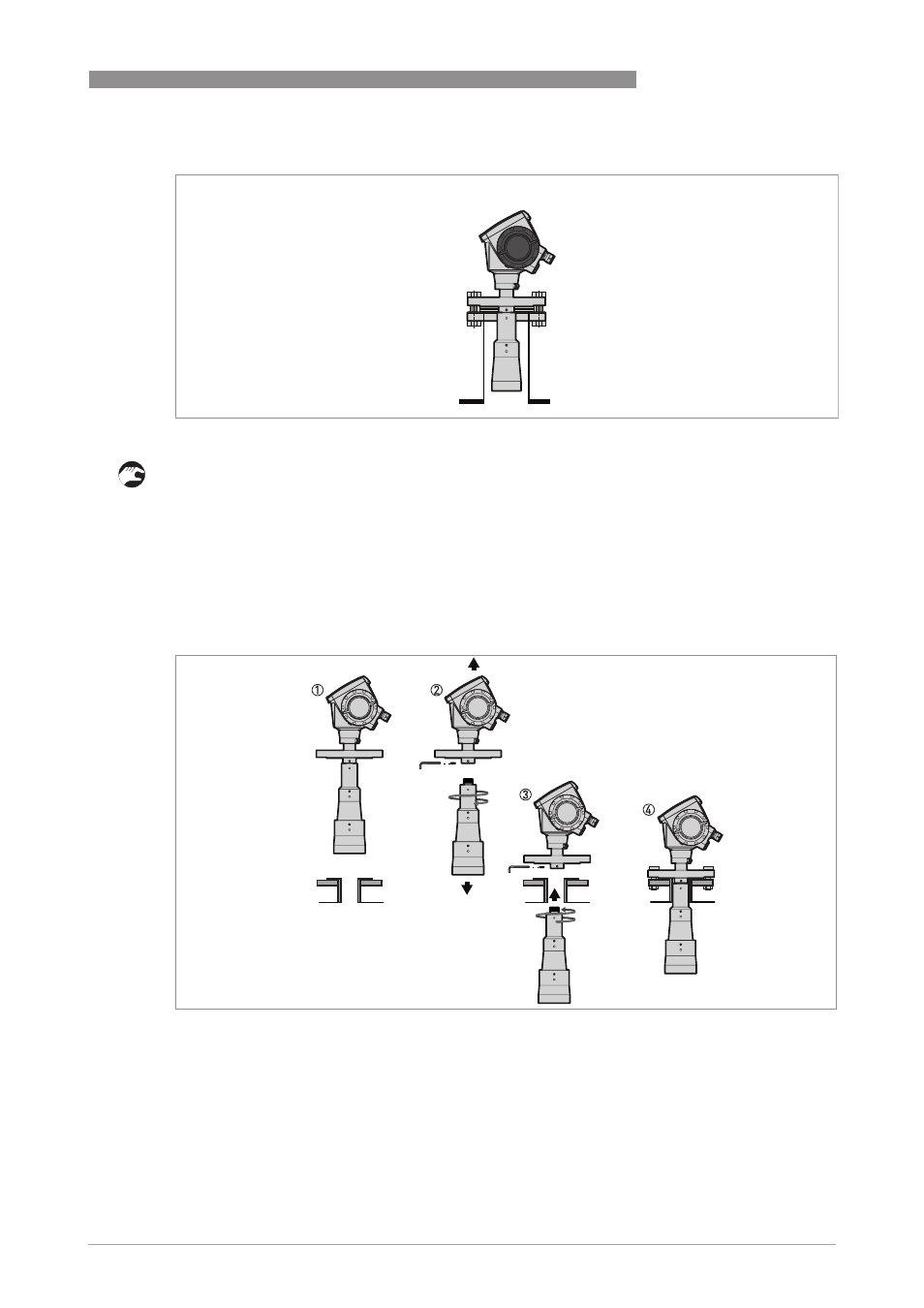

Figure 3-13: Flange connection
Figure 3-14: How to attach the device if the antenna is larger than the process connection
