TECHNICAL DATA
112
OPTIWAVE 7300 C
www.krohne.com 03/2014 - 4000172405 - HB OPTIWAVE 7300 R07 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
DN50/2¨ Hygienic antenna versions

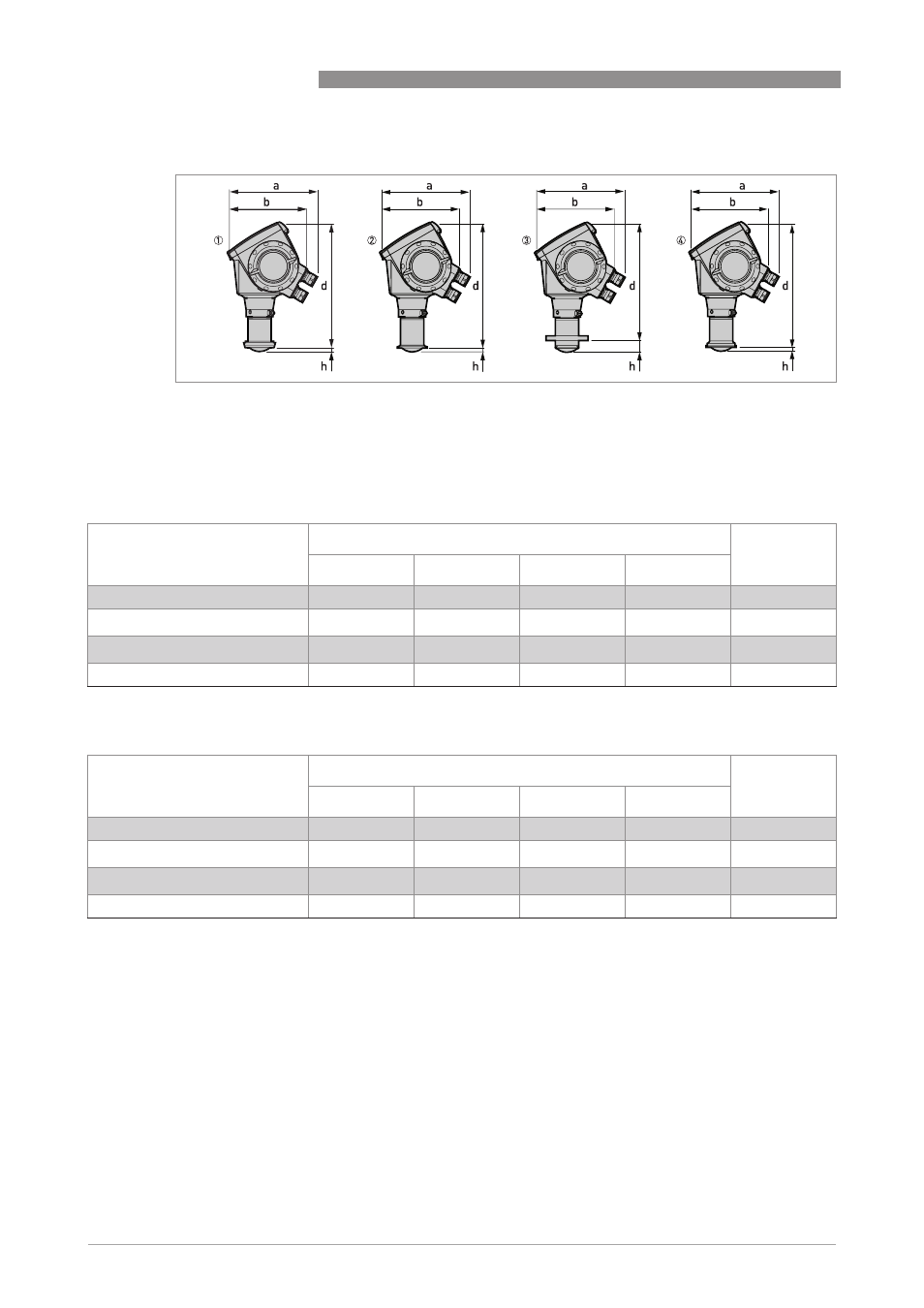

Figure 8-17: DN50/2¨ Hygienic antenna versions
1 DN50/2¨ Hygienic antenna with DIN 11851 connection
2 DN50/2¨ Hygienic antenna with Tri-Clamp
® connection
3 DN50/2¨ Hygienic antenna with Neumo BioControl ® connection
4 DN50/2¨ Hygienic antenna with SMS connection
Dimensions [mm] Weights [kg]
a b d h
DIN 11851 connection 182 1 167 264 8 3.8
Tri-Clamp ® connection 182 1 167 264 8 3.7
Neumo BioControl ® connection 182 1 167 247 25 4.0
SMS connection 182 1 167 264 8 3.8
1 If fitted with standard cable glands
Dimensions [inches] Weights [lb]
a b d h
DIN 11851 connection 7.2 1 6.5 10.4 0.3 8.4
Tri-Clamp
®
connection
7.2 1 6.5 10.4 0.3 8.2
Neumo BioControl
®
connection
7.2 1 6.5 9.7 1.0 8.8
SMS connection 7.2 1 6.5 10.4 0.3 8.4
1 If fitted with standard cable glands
