8
TECHNICAL DATA
108
OPTIWAVE 7300 C
www.krohne.com 03/2014 - 4000172405 - HB OPTIWAVE 7300 R07 en
Sheet metal horn antenna versions

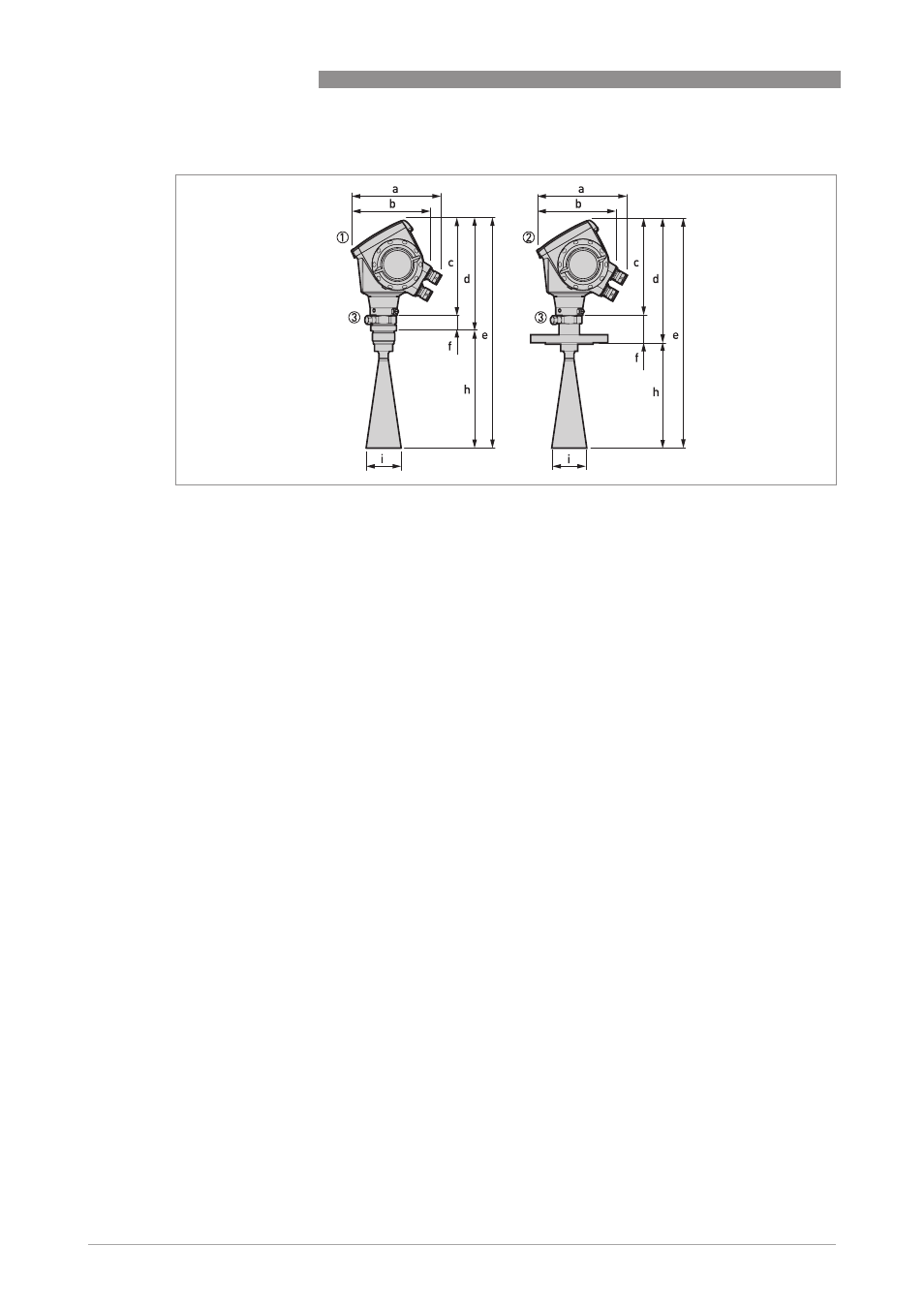

Figure 8-14: DN80/3¨, DN100/4¨, DN150/6¨ and DN200/8¨ sheet metal horn antenna versions
1 Sheet metal horn antenna (DN80/3¨, DN100/4¨, DN150/6¨ or DN200/8¨) with G 1½ or 1½ NPT thread connection
2 Sheet metal horn antenna (DN80/3¨, DN100/4¨, DN150/6¨ or DN200/8¨) with flange connection
3 Antenna purging system option (supplied with ¼ NPTF connection)
