MEASUREMENT
63
F 1
F 2
F 4
F 5
F 3

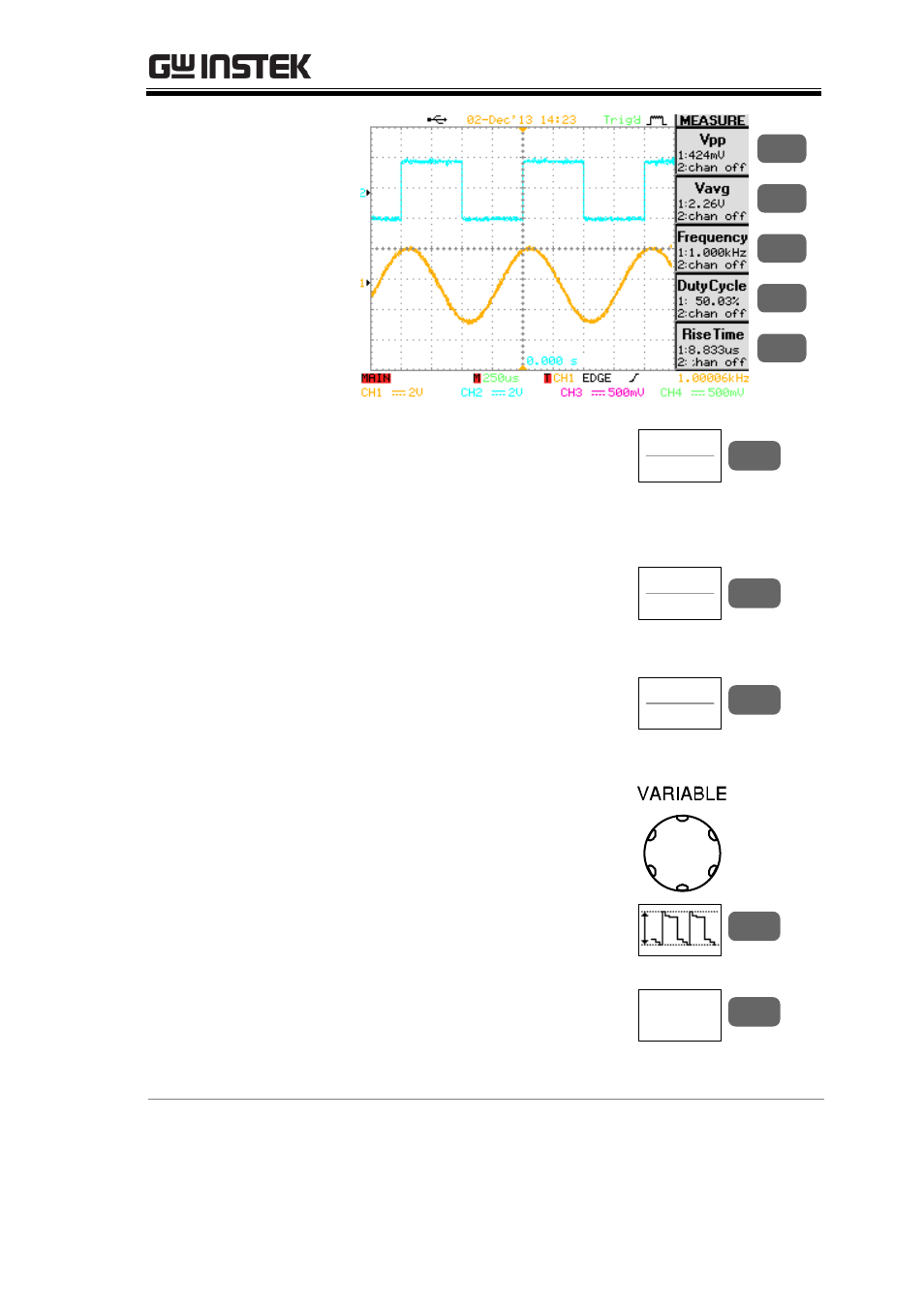

Select
measurement
item 3. The selection menu appears.
Press F1 (Source 1)
repeatedly to select the first
source channel.
Source
CH1
F 1
4. Press F2 (Source 2)
repeatedly to select the
second source channel.
Source
CH2
F 2
5. Press F3 repeatedly to select
the measurement type:
Voltage, Time, and Delay.
Voltage
Vpp
F 3
6. Use the Variable knob or
press F4 repeatedly to select
the measurement item.
F 4
7. Press F5 (Previous Menu) to
confirm the item selection
and to go back to the
measurement results view.
Previous
Menu
F 5
