MEASUREMENT
59

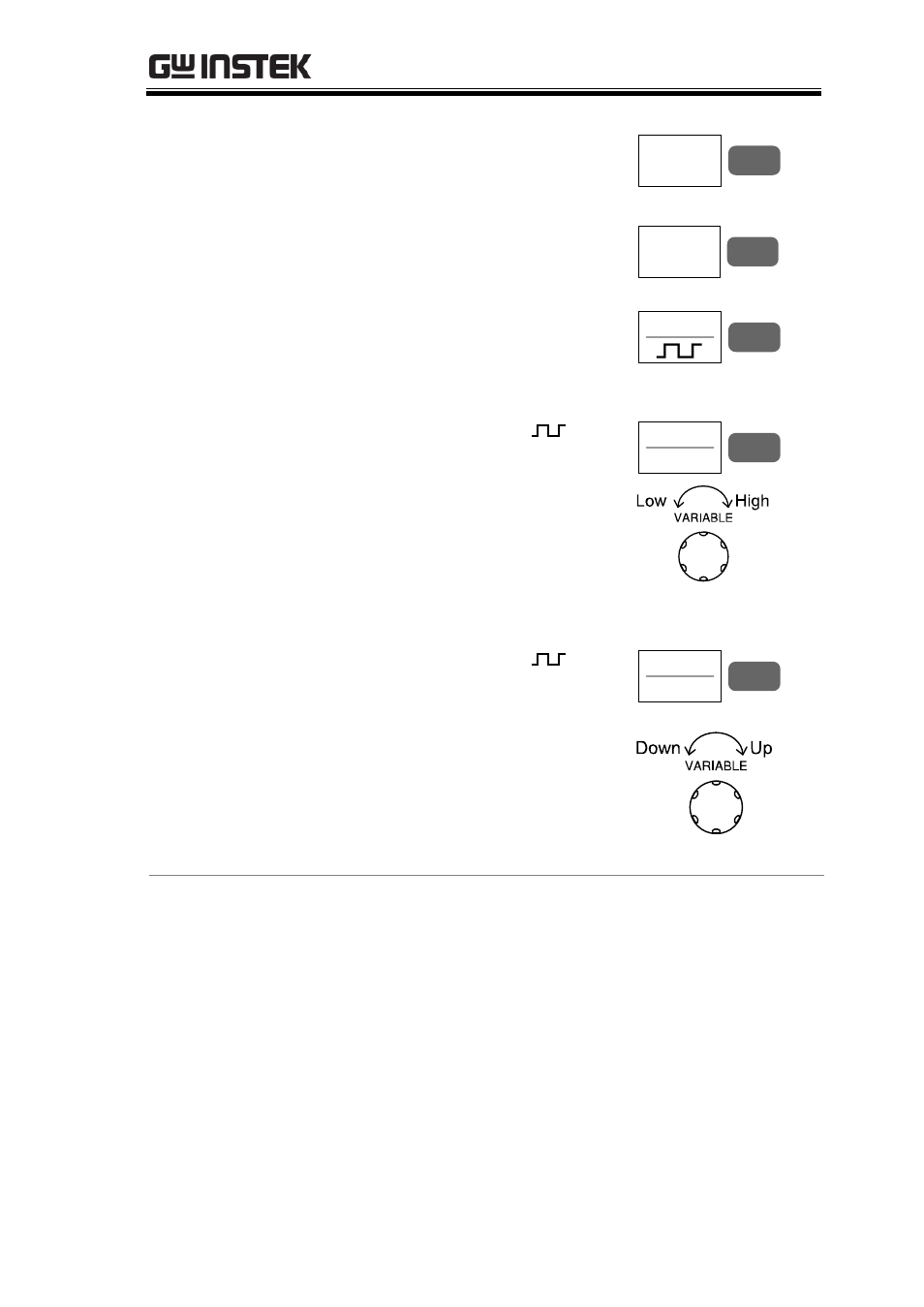

3. Press F5 (More) twice.
More F 5
x2
4. Press F1 (Probe Comp.
Menu).
ProbeComp
Menu
F 1
5. Press F1 (Wave type)
repeatedly to select the
wave type.
Wave Type
F 1
6. (For square wave only)
To change the frequency,
press F2 (Frequency) and
use the Variable knob.
Frequency
1 K
F 2
Range 1kHz ~ 100kHz
7. (For square wave only)
To change the duty cycle,
press F3 (Duty Cycle) and
use the Variable knob.
Duty Cycle
50%
F 3
Range 5% ~ 95%
Probe
compensation For probe compensation details, see page172.
