GBS-1000 Series User Manual
58

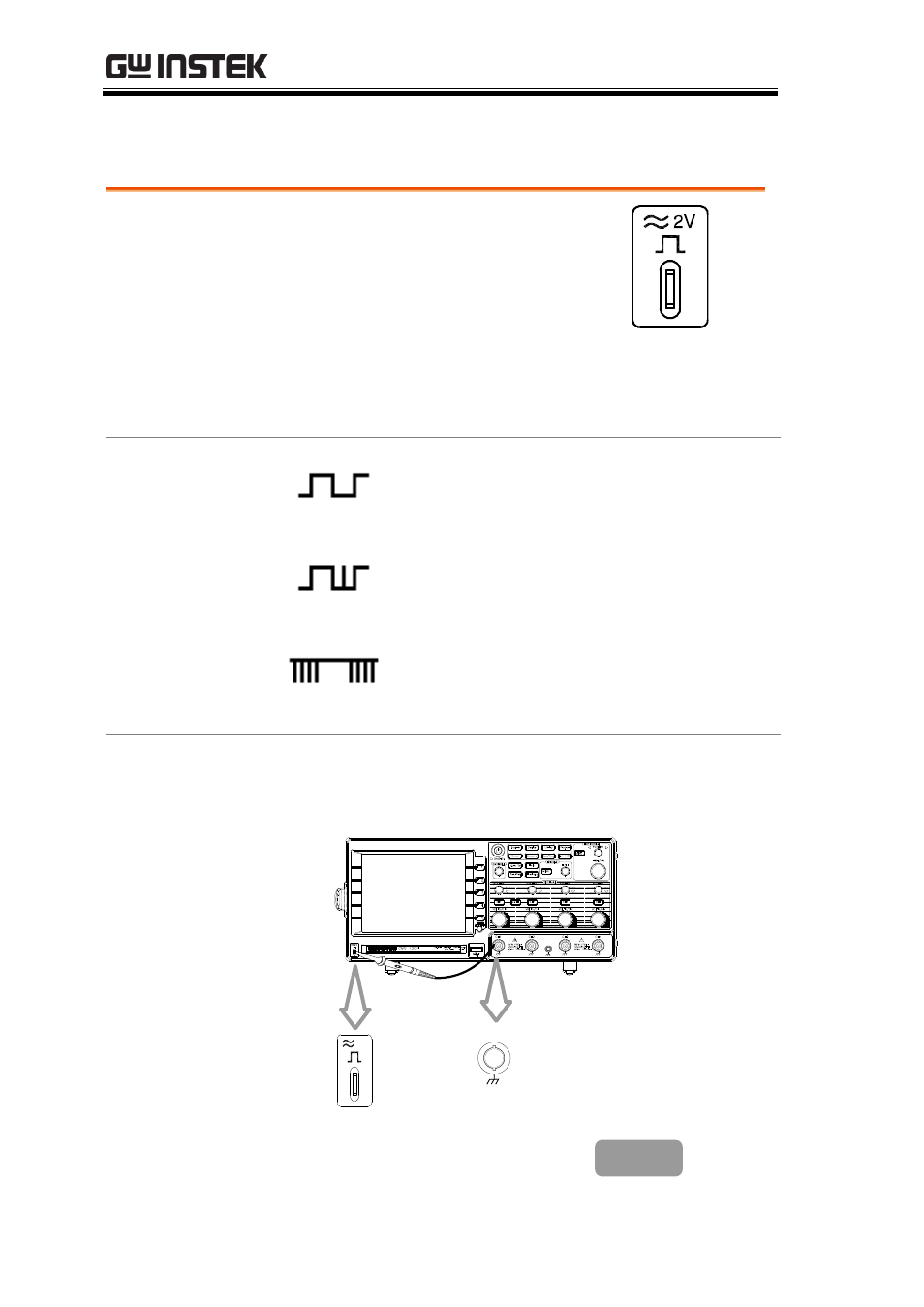

Probe compensation signal
Background This section introduces how to use
the probe compensation signal for
general usage, in case the DUT
signal is not available. For probe
compensation details, see page172.
Note that the frequency accuracy and duty factor
are not guaranteed. Therefore the signal should
not be used for reference purpose.
Waveform type Square waveform for probe
compensation. 1k ~ 100kHz, 5% ~
95%.
Demonstration signal to show the
effect of peak detection. See page99
for peak detection mode details.
Demonstration signal to show the
effect of long memory. See page101
for memory length details.
View
compensation
waveform 1. Connect the probe between the compensation
signal output and Channel input.

X10 X1

2. Press the Utility key.
Utility
