GBS-1000 Series User Manual

118

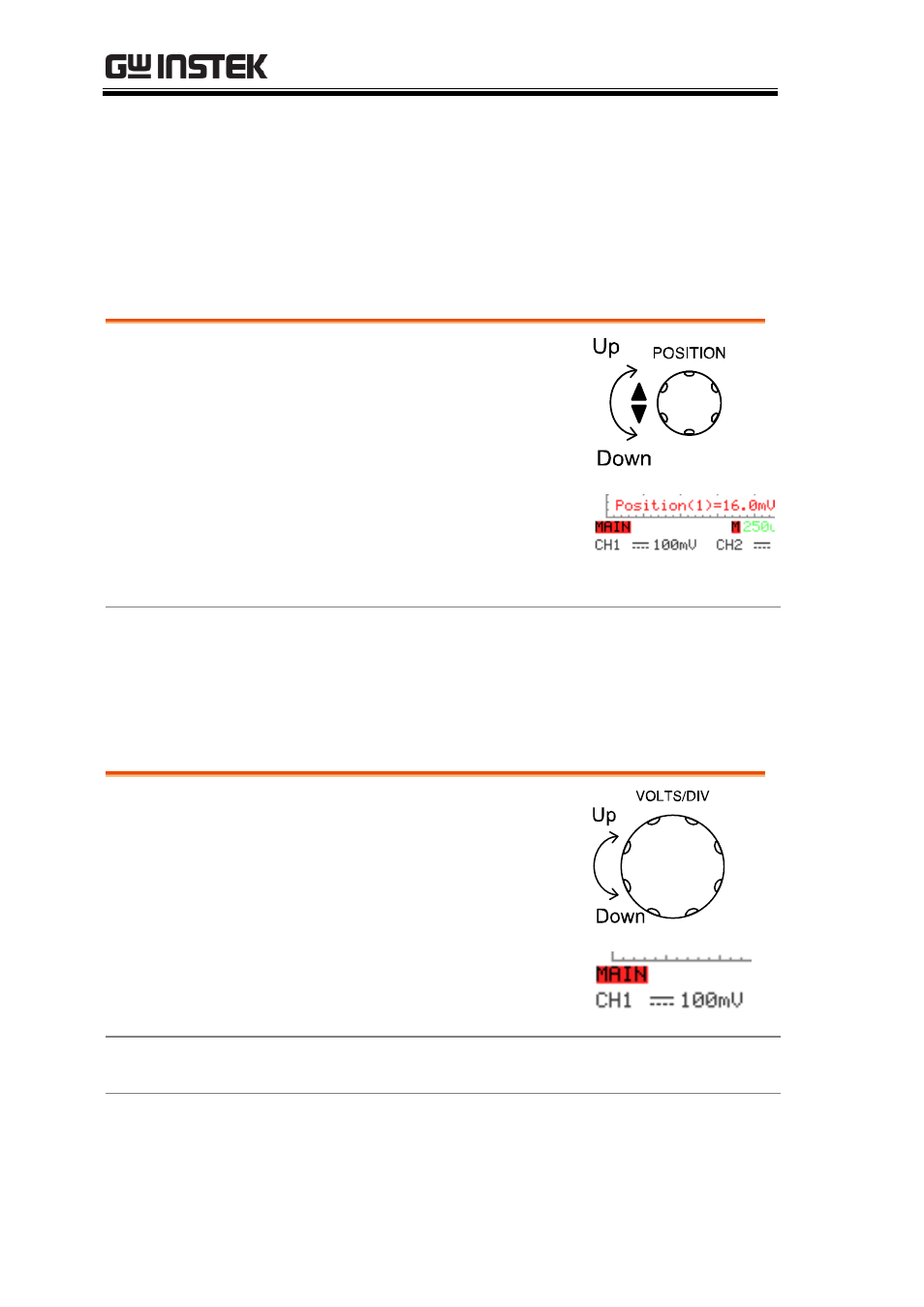

Vertical View (Channel)

This section describes how to set the vertical scale, position, and
coupling mode.

Move waveform position vertically

Panel operation

To move the waveform up or
down, turn the vertical position
knob for each channel.

As the waveform moves, the
vertical position of the cursor
appears at the bottom left
corner of the display.

Run/Stop mode

The waveform can be moved vertically in both
Run and Stop mode.

Select vertical scale

Panel operation

To change the vertical scale,
turn the VOLTS/DIV knob; left
(down) or right (up).

The vertical scale indicator on
the bottom left of the display
changes accordingly.

Range

2mV/Div ~ 5V/Div, 1-2-5 increments

Stop mode

In Stop mode, the vertical scale setting can be
changed but the waveform shape stays the same.
