GETTING STARTED
21

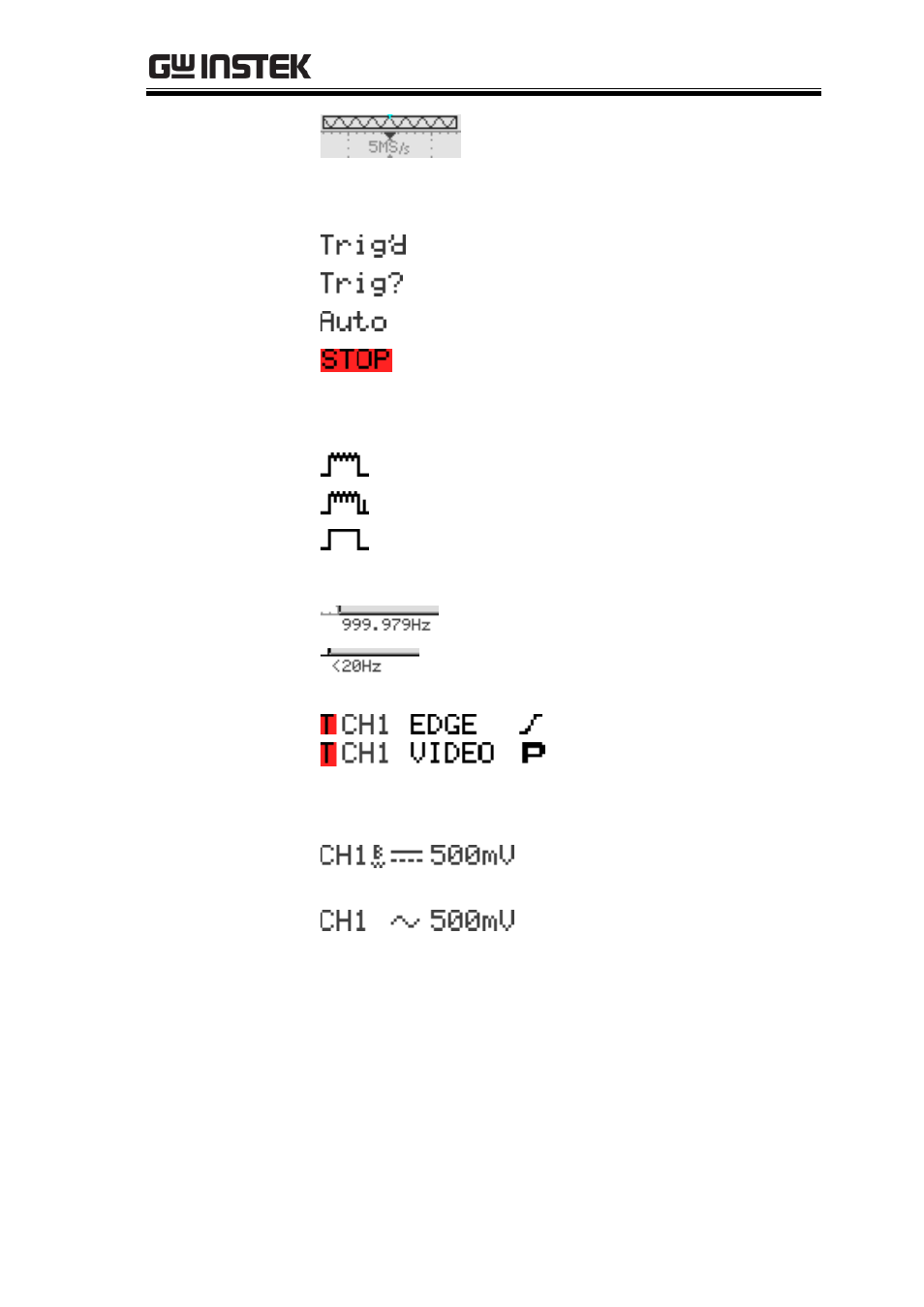

Memory bar The ratio and the position of the
displayed waveform compared
with the internal memory
(page108).
Trigger status Triggered.
Not triggered, display not updated.
Not triggered, display updated.
Trigger stopped. Also appears in
Run/Stop (page55).
For trigger details, see page124.
Acquisition mode Normal mode
Peak detect mode
Average mode
For acquisition details, see page99.
Input signal
frequency
Shows the input signal frequency.
Indicates the frequency is less than
20Hz (lower frequency limit).
Trigger
configuration Trigger source, type,
slope. (Video trigger)
trigger source, polarity.
For trigger details, see page124.
Channel status Channel 1, bw limit On, DC
coupling, 500mV/Div
Channel 1, bw limit Off, AC
coupling, 500mV/Div
For channel details, see page118.
