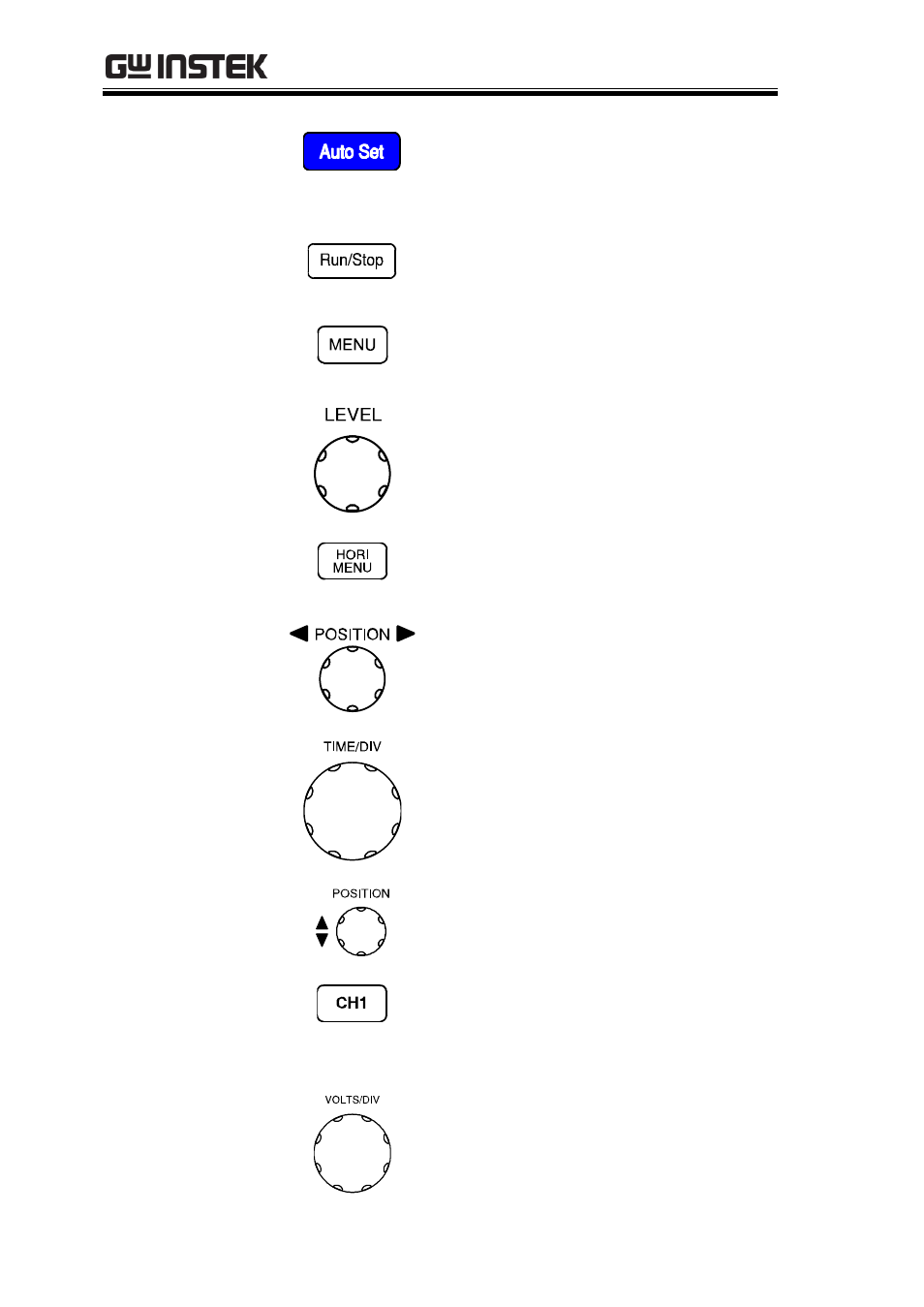

Auto Set key Finds signals and sets the
appropriate horizontal / vertical /
trigger settings (page54).
Run/Stop key Freezes (Stop) or continues (Run)
signal acquisition (page55).
Trigger menu key Configures trigger settings
(page124).
Trigger knob Sets trigger level (page124).
Horizontal menu
key Configures horizontal view
(page108).
Horizontal
position knob Sets the horizontal position of
waveforms (page108).
Time/Div knob Selects the horizontal scale
(page109).
Vertical position
knob Sets the vertical position of
waveforms (page118).
Channel menu
key Configures the vertical scale and
coupling mode for each channel
(page118).
Volts/Div knob Selects the vertical scale (page118).
