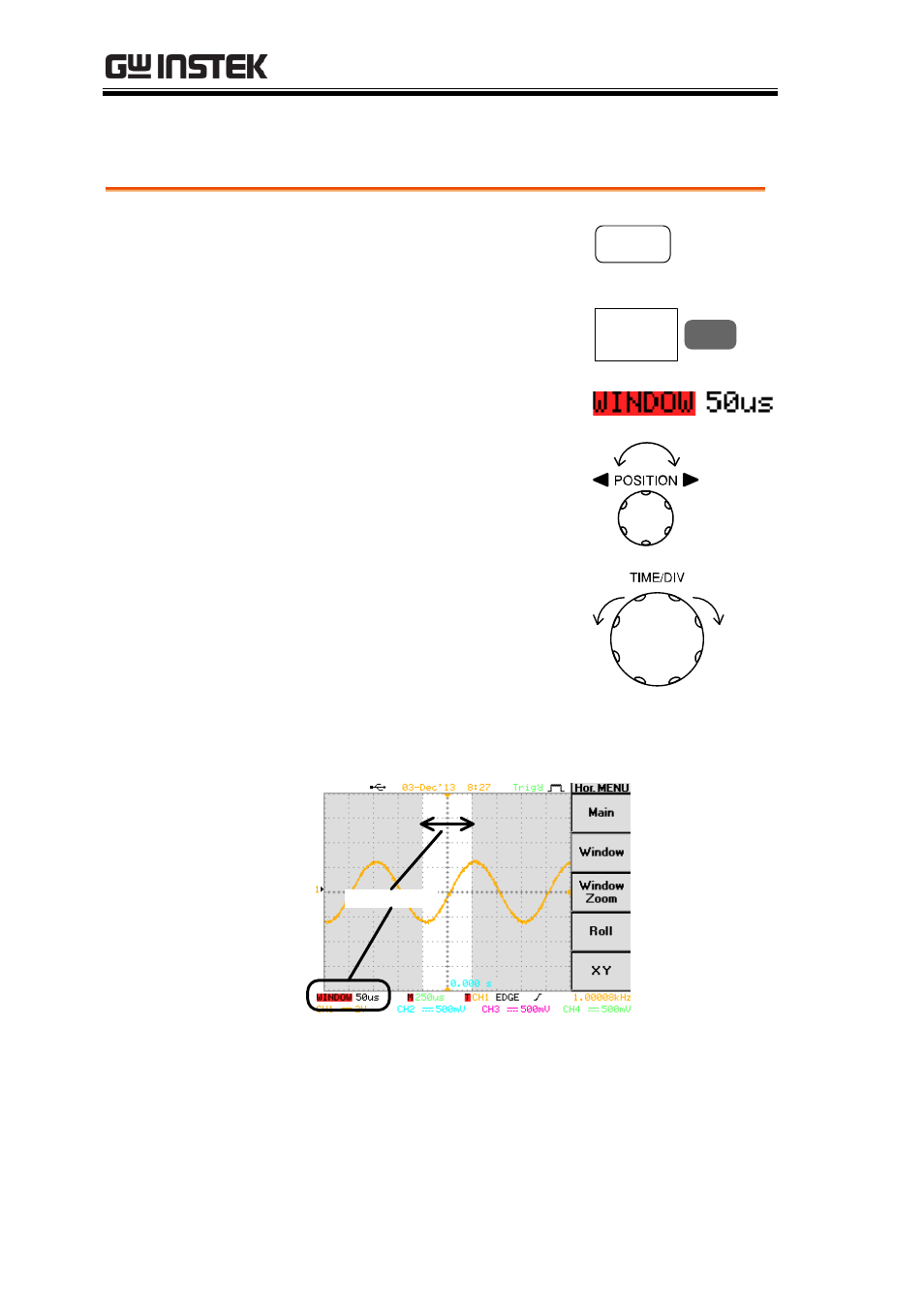

Zoom waveform horizontally
Panel operation/
range 1. Press the Horizontal Menu
key.
HORI
MENU
2. Press F2 (Window) key.
Window F 2
3. The WINDOW indicator,
which shows the zoom
range, appears on the
bottom left corner of the
display. Use the horizontal
position knob to move the
zoom range sideways, and
TIME/DIV knob to change
the zoom range width.
The width of the bar in the middle of the
display is the actual zoomed area.
Zoom Range
Zoom range 1ns ~ 5s
