Page 7
INSTALLATION
- 7 -
POWER REAM
Installation:
Before starting installation work in the area of the robot, ensure for your personal safety that all
protective measures have been taken and will remain in place while you are in the area of the
robot.
Danger of accident when connecting the pneumatic or electrical supply!
-Ensure that the air supply and electrical power to the torch maintenance center are
disconnected until the installation is complete.
-The torch maintenance center should be installed within the weld cell at a convenient location.
Be sure to consider movable fixtures, the confines of the robot and maintenance personnel
accessibility.
-Before operating the unit, ensure that the correct reaming bit for the torch is applied.

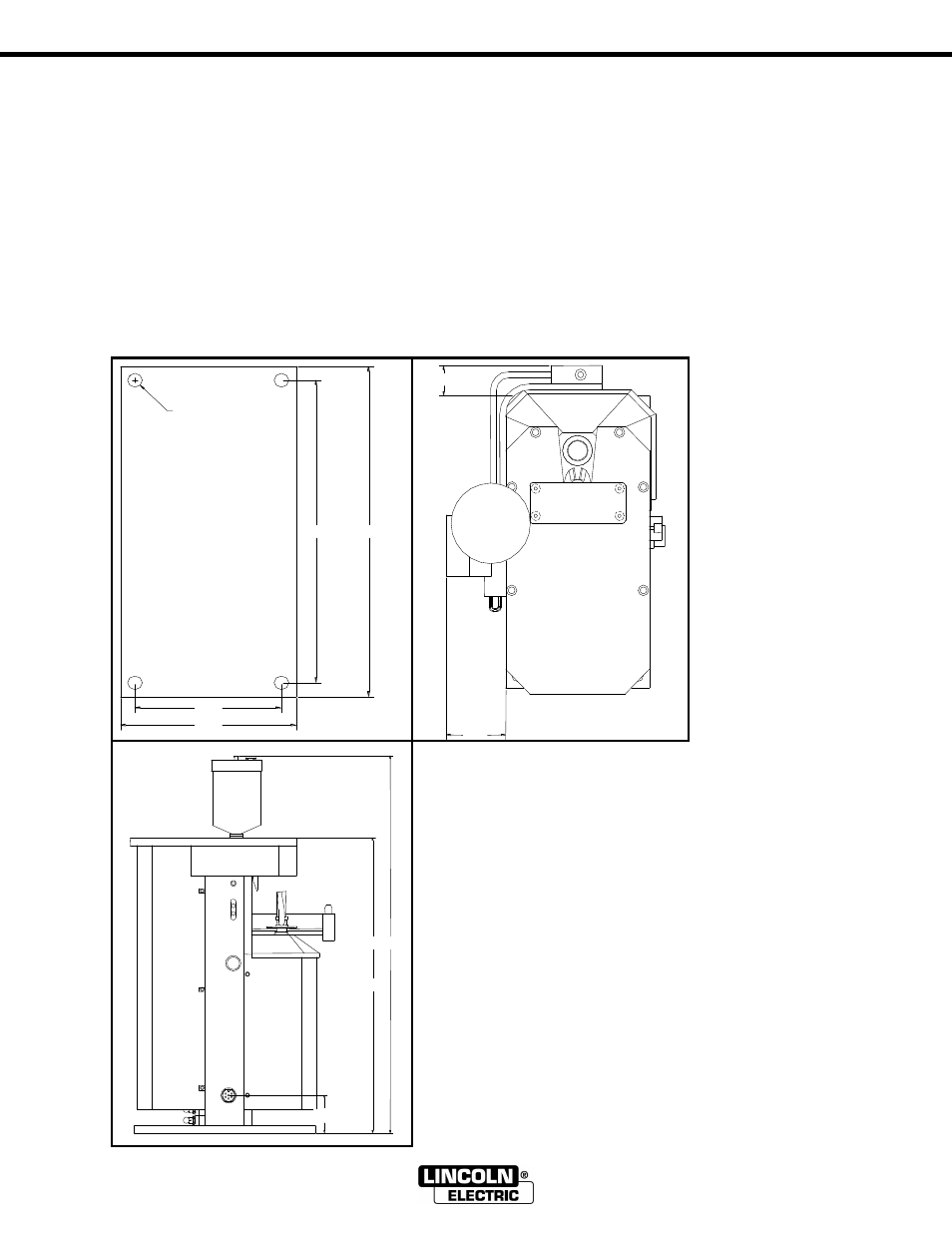

-Affix torch maintenance center base to sturdy platform using the four boltholes provided for 3/8‖
mounting hardware.
12.00
11.00
5.00
6.00
Mounting Hole (4x)
1.25
2.47
2.50
24.90
19.50
