Parts Replacement
- 24 -
POWER REAM

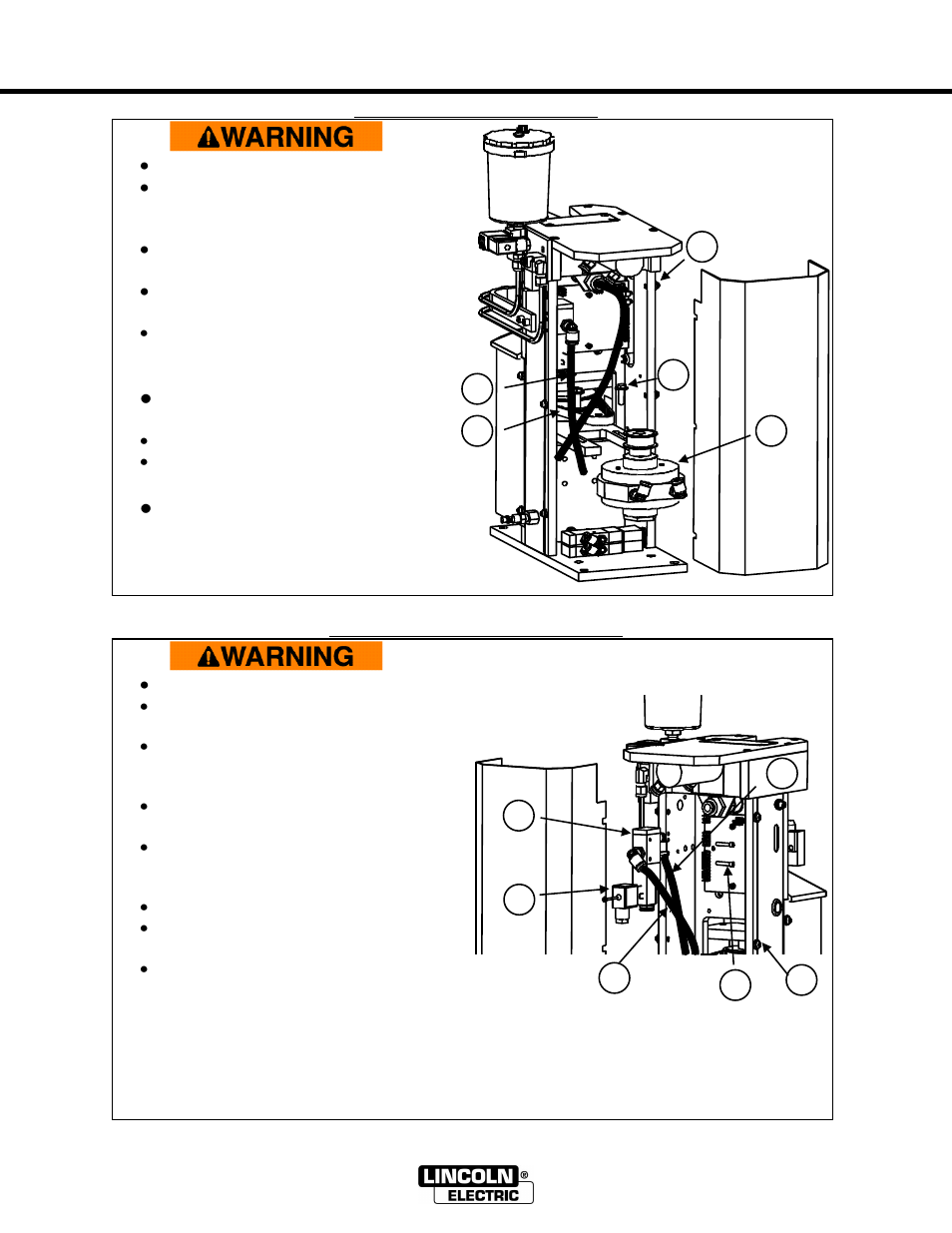

Air Motor Replacement
Disconnect air and electrical supply.
Loosen (6) button head cap screws,
item 1, to remove rear cover.
(5/32‖ hex drive)
Disconnect hoses 111 and 112,
item 2, from the motor.
Check and note the belt tension,
item 3.
Hold the motor from below and
remove (2) 6mm hex head bolts,
item 4.
(10mm wrench)
Slip belt off motor gear and remove
motor,
item 5.
Insert new motor into mount.
Follow steps in reverse order to
reassemble unit.
Apply medium strength threadlocker
to
item 4.
Motor Solenoid Replacement
Disconnect air and electrical supply.
Loosen (6) button head cap screws,
item 1, to remove rear cover.
Remove electrical connector,
item 2,
from motor solenoid.
(Star screwdriver)
Disconnect hose 111,
item 3,from
motor solenoid.
Remove (2) #8-32 socket head cap
screws,
item 4, from solenoid.
(9/64‖ hex drive)
Remove motor solenoid,
item 5.
Disconnect hose 110,
item 6,from
motor solenoid.
Follow steps in reverse order to
reassemble unit.
4
1
2
5
3
6
5
4
3
2
1
