Lincoln Electric IM866 POWER REAM - Manual (Page 25)

Parts Replacement - 25 -
POWER REAM

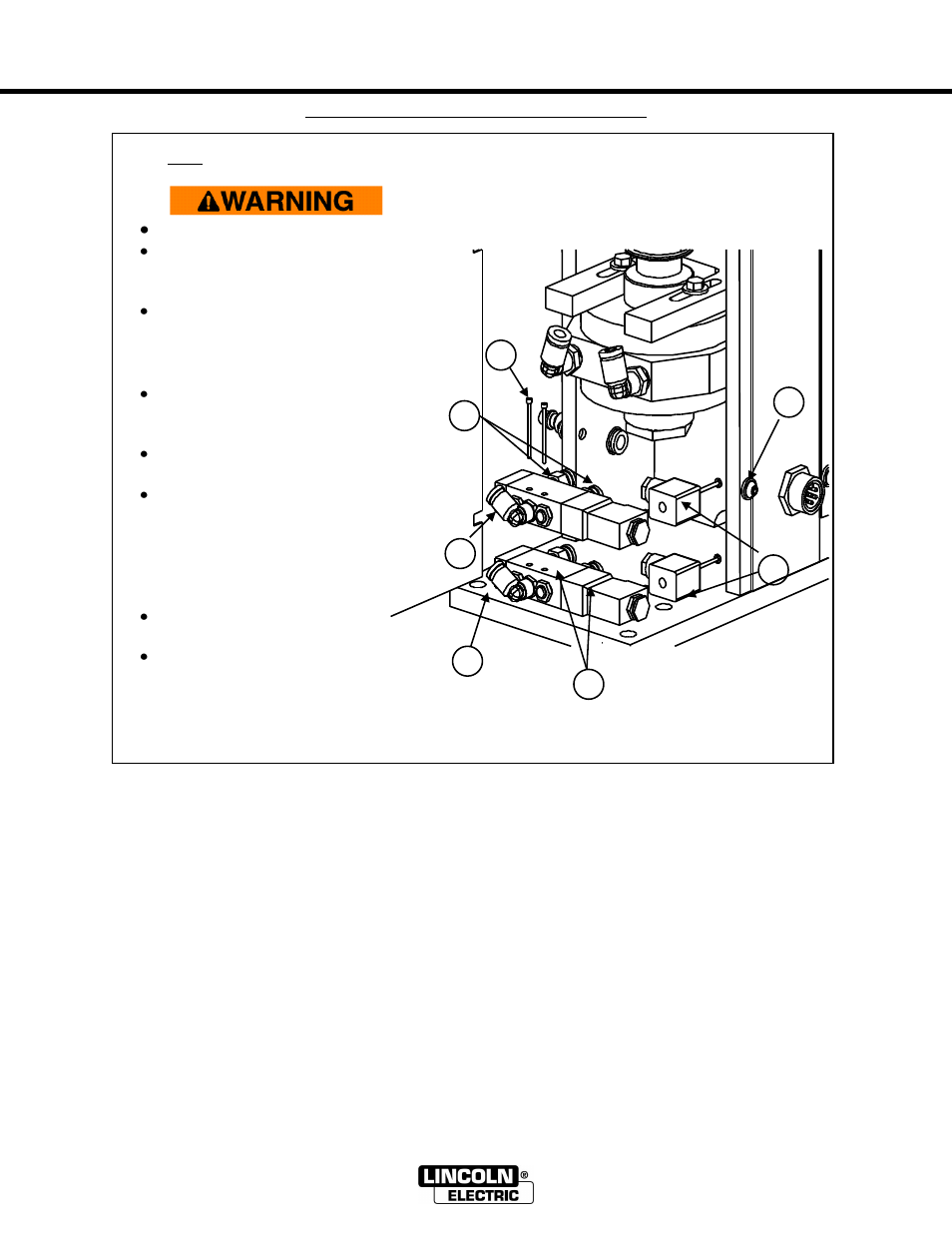

Lift\Clamp Solenoid Replacement
Note: The lift and clamp cylinder solenoids are stacked. The top solenoid is for the clamp cylinder, the
bottom solenoid is for the lift cylinder. Similar procedures are used for each solenoid.
Disconnect air and electrical supply.
Loosen (6) button head cap screws,
item 1, to remove rear cover.
(5/32‖ hex drive)
Lift Solenoid : Disconnect hose 130
from solenoid in-port, item 2.
Clamp Solenoid: Disconnect hose
120, item 3, from solenoid in-port.
Remove(2) #4-40 socket head cap
screws, item 4, from solenoids.
(3/32‖ hex drive)
Remove electrical connector, item 5,
from solenoid. (star screwdriver)
Lift Solenoid: Disconnect hose 131
and 132 from solenoid out-port,
item 6.
Clamp Solenoid: Disconnect hose
121 and 122 from solenoid out-port,
item 7.
Remove solenoid, insert new
solenoid.
Follow steps in reverse order to
reassemble unit.
7
1
2
3
4
5
6
