Parts Replacement - 28 -
POWER REAM

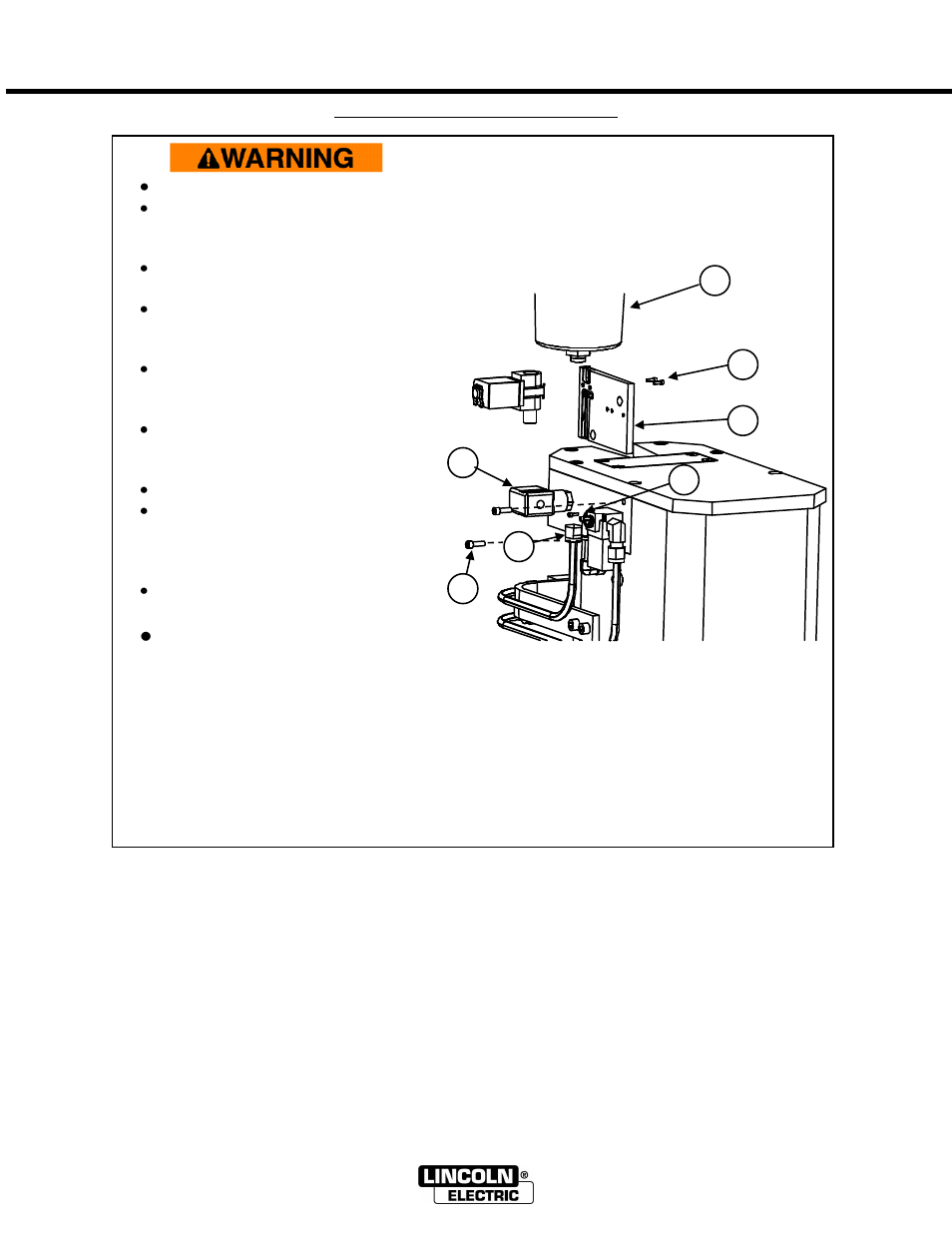

Fluid Solenoid Replacement
Disconnect air and electrical supply.
Remove anti spatter fluid reservoir,
item 1. (3/4‖ wrench)
WARNING: Contents may spill.
Remove bottom nut, item 2, of
compression fitting. (9/16‖ wrench)
Remove electrical connector, item 3,
from fluid solenoid valve.
(star screwdriver)
Remove (2) 4-40 socket head cap
screws, item 4, from spray solenoid.
(3/32‖ hex drive)
Remove (2) #8-32 socket head cap
screws, item 5, from spray assembly
plate. (9/64‖ hex drive)
Raise spray plate item 6.
Remove (2) 3mm socket head cap
screws, item 7, from back of spray
assembly plate and replace fluid
solenoid. (3/32‖ hex drive)
Follow steps in reverse order to
reassemble unit.
When tightening bottom nut, item 2,
DO NOT OVER TIGHTEN
1
2
3
4
5
6
7
