Lincoln Electric IM866 POWER REAM - Manual (Page 34)

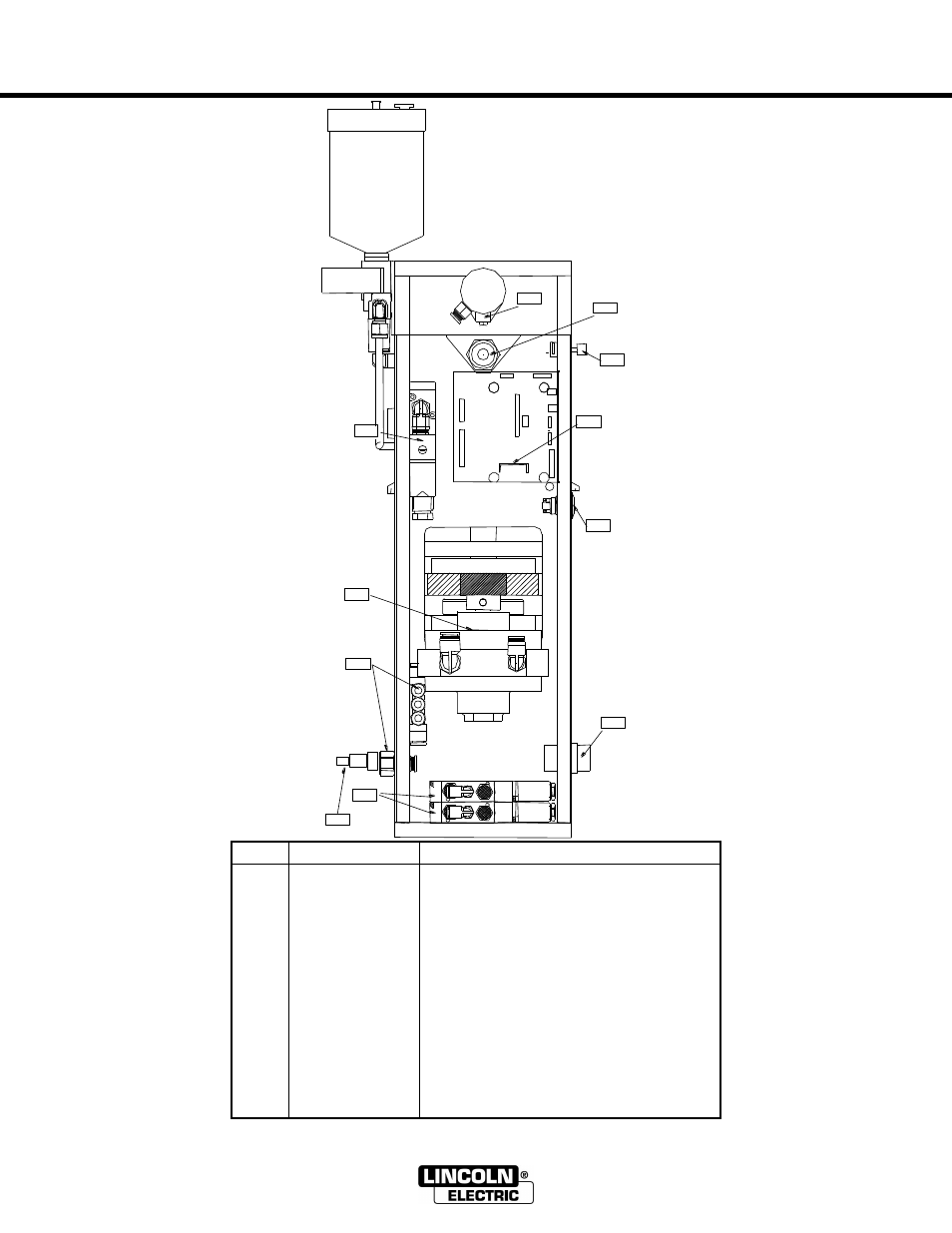

PARTS DIAGRAM - 34 -
POWER REAM
21
19
24
16
18
20
17
25
22
23
26
ITEM PART # DESCRIPTION
16 G4827-23 OPEN SENSOR ASSEMBLY
17 G4827-24 EXHAUST MUFFLER ASSEMBLY
18 G4827-25 RESET PUSHBUTTON ASSEMBLY
29 G4827-26 MOTOR SOLENOID ASSEMBLY
20 G4827-27 P.C. BOARD W/ MICROCONTROLLER
21 G4827-28 SETUP PUSHBUTTON ASSEMBLY
22 G4827-29 AIR MOTOR ASSEMBLY
23 G4827-30 AIR DISTRIBUTION ASSEMBLY
24 G4827-31 ROBOT CONNECTOR ASSEMBLY
24A K2433-1 POWER REAM ROBOT CABLE, 20 FT
25 G4827-32 CYLINDER SOLENOID ASSEMBLY (2)
26 S23044 PNEUMATIC FITTING (1/4 ― NPT)
