Lincoln Electric IM866 POWER REAM - Manual (Page 33)

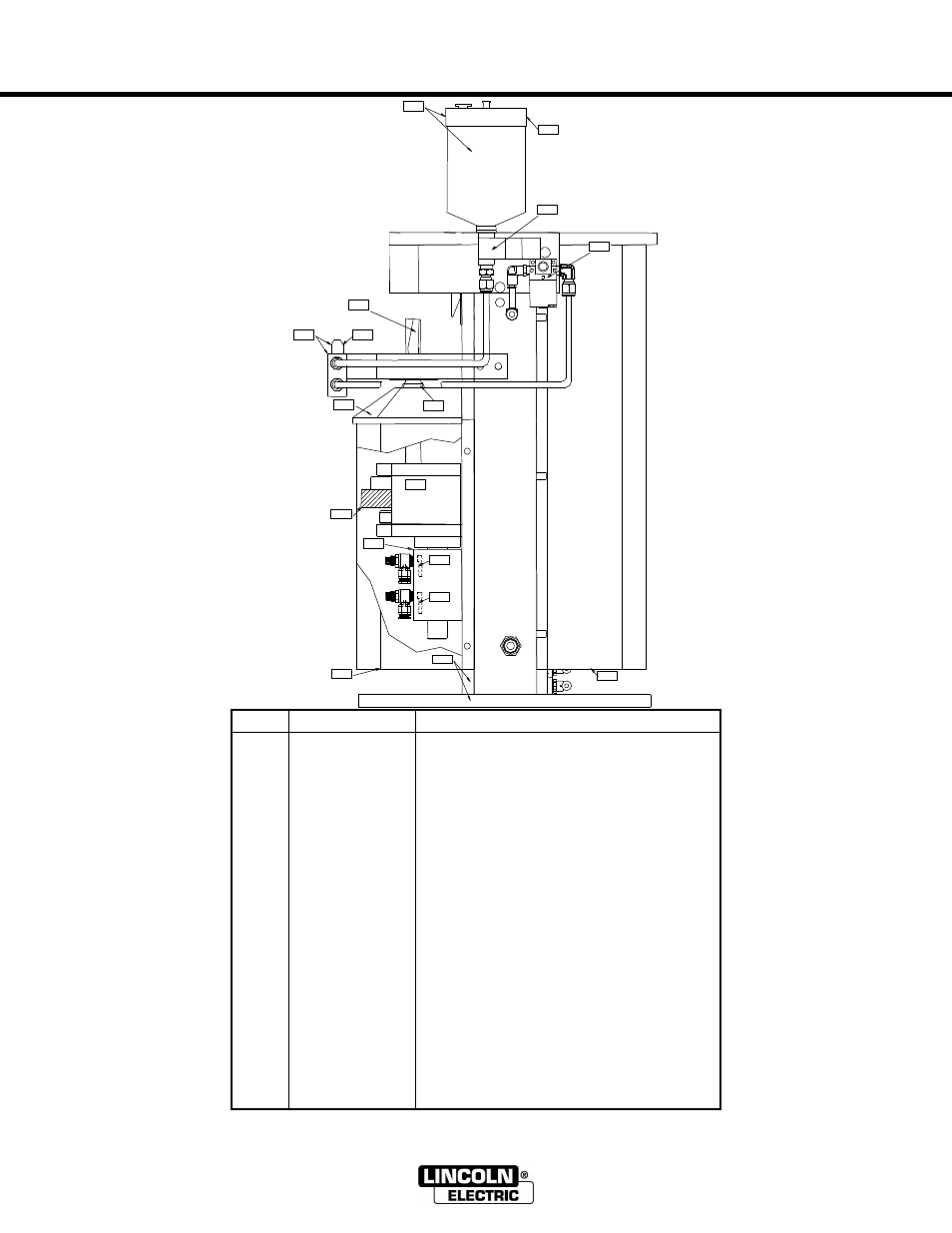

PARTS DIAGRAM - 33 -
POWER REAM
14
10a
11a
15a 15b
9a
5a
6
7
10
11
12
15
13
9
8
5
ITEM PART # DESCRIPTION
5 G4827-7 FLUID RESERVOIR ASSEMBLY
5A G4827-8 RESERVOIR LID
6 G4827-9 FLUID SOLENOID ASSEMBLY
7 G4827-10 SPRAY SOLENOID ASSEMBLY
8 KP2435-4 REAMING BIT, 5/8‖ (W/WASHER)
8A G4827-1 REAMING BIT WASHER
9 G4827-11 SPRAY NOZZLE ASSEMBLY
9A G4827-12 SPRAY NOZZLE
10 G4827-13 DOME ASSEMBLY
10A G4827-14 ROD WIPER SEAL
11 G4827-15 CARRIAGE ASSEMBLY
11a G4827-16 TIMING BELT
12 G4827-17 LIFT CYLINDER ASSEMBLY
13 G4827-18 EXTENDED SENSOR ASSEMBLY
14 G4827-19 RETRACTED SENSOR ASSEMBLY
15 G4827-20 FRAME ASSEMBLY
15A G4827-21 FRONT COVER
15B G4827-22 BACK COVER
