Parts Replacement - 27 -
POWER REAM

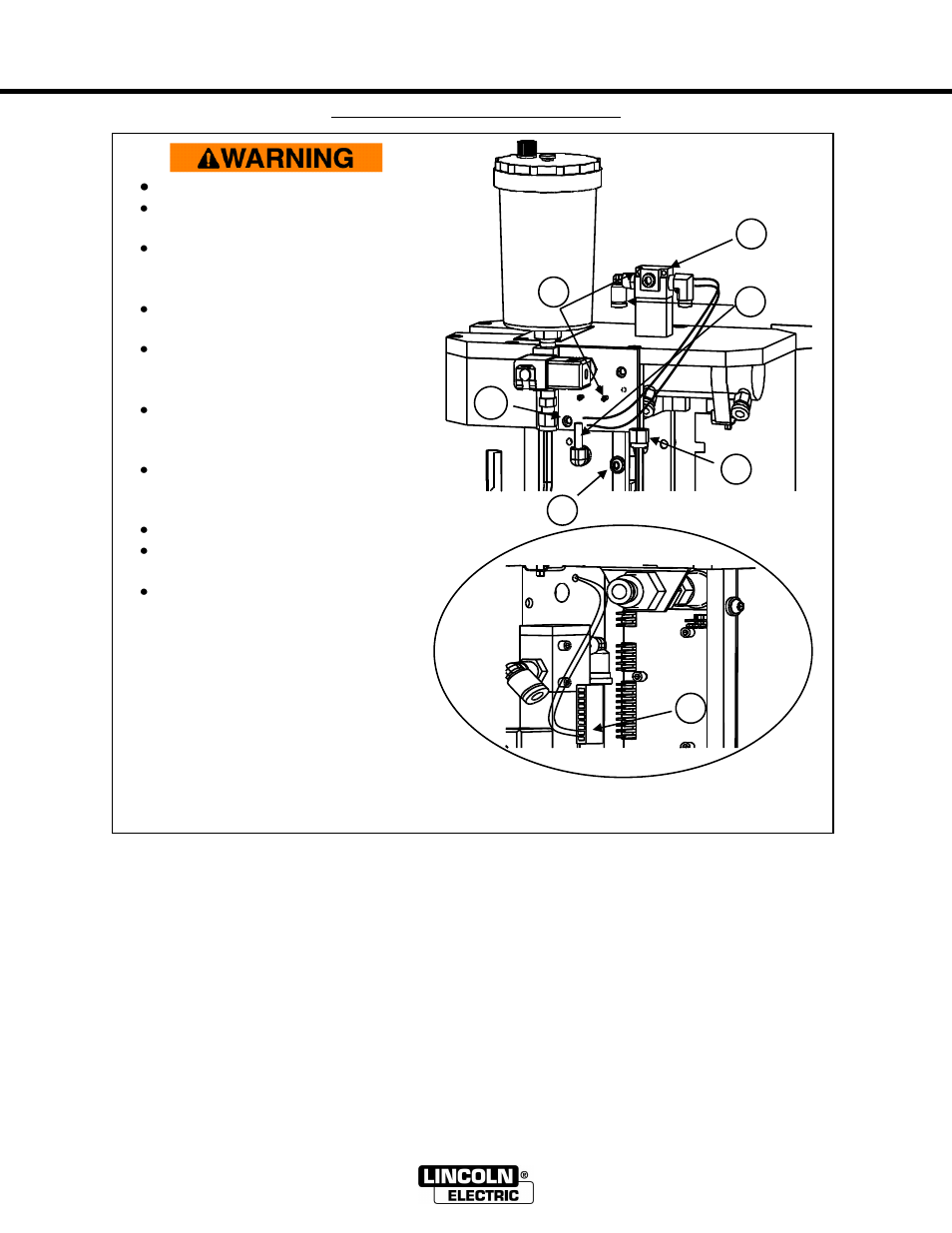

Spray Solenoid Replacement
Disconnect air and electrical supply.
Loosen (6) button head cap screws,
item 1, to remove rear cover.
Remove (2) wires, item 2, from
10-position connector
(pins 9 and 10 at the bottom).
Pull wires, item 3, through the hole
in main unit to the outside.
Unfasten bottom nut, item 4, of
compression fitting. (9/16‖ wrench)
DO NOT REMOVE
Remove (2) #4-40 socket head cap
screws, item 5, from spray solenoid.
(3/32‖ hex drive)
Raise spray solenoid valve while
detaching plastic fitting, item 6, from
the side.
Remove spray solenoid, item 7.
Follow steps in reverse order to
reassemble unit.
When tightening bottom nut, item 4,,
DO NOT OVER TIGHTEN
1
3
4
5
6
7
1
10
2
