FEATURE SETUPS - 16 -
POWER REAM
Several features may be setup to optimize performance of the POWER REAM. To access the
configuration menus press the reset and setup pushbuttons, release the reset pushbutton and
continue to hold the setup button for the specified time shown below. The LEDs will change
color pattern to indicate the menu that is accessible at a specific time. Release the setup button
when the color pattern is shown for the desired configuration menu.
The default setting is first and last in the sequence of each configuration menu.
I/O configuration menu: See I/O configuration section on previous pages.
Blow-off: The motor spins and exhausts (blowing off over spray) for two seconds after spraying.
The blow-off feature can be configured by the following procedure.
Follow the steps outlined above to access the blow-off configuration menu. Upon releasing the
setup push button, the lights will flash red on top and blank on bottom. This is the first in the
sequence of teachable configurations.
Subsequent pressing and releasing of the setup button will sequence the following
configurations in order of appearance. To register the desired configuration, press the reset
button when that configuration is displayed.
Blow-off configurations;
Off: This feature is disabled.
On : This feature is enabled.

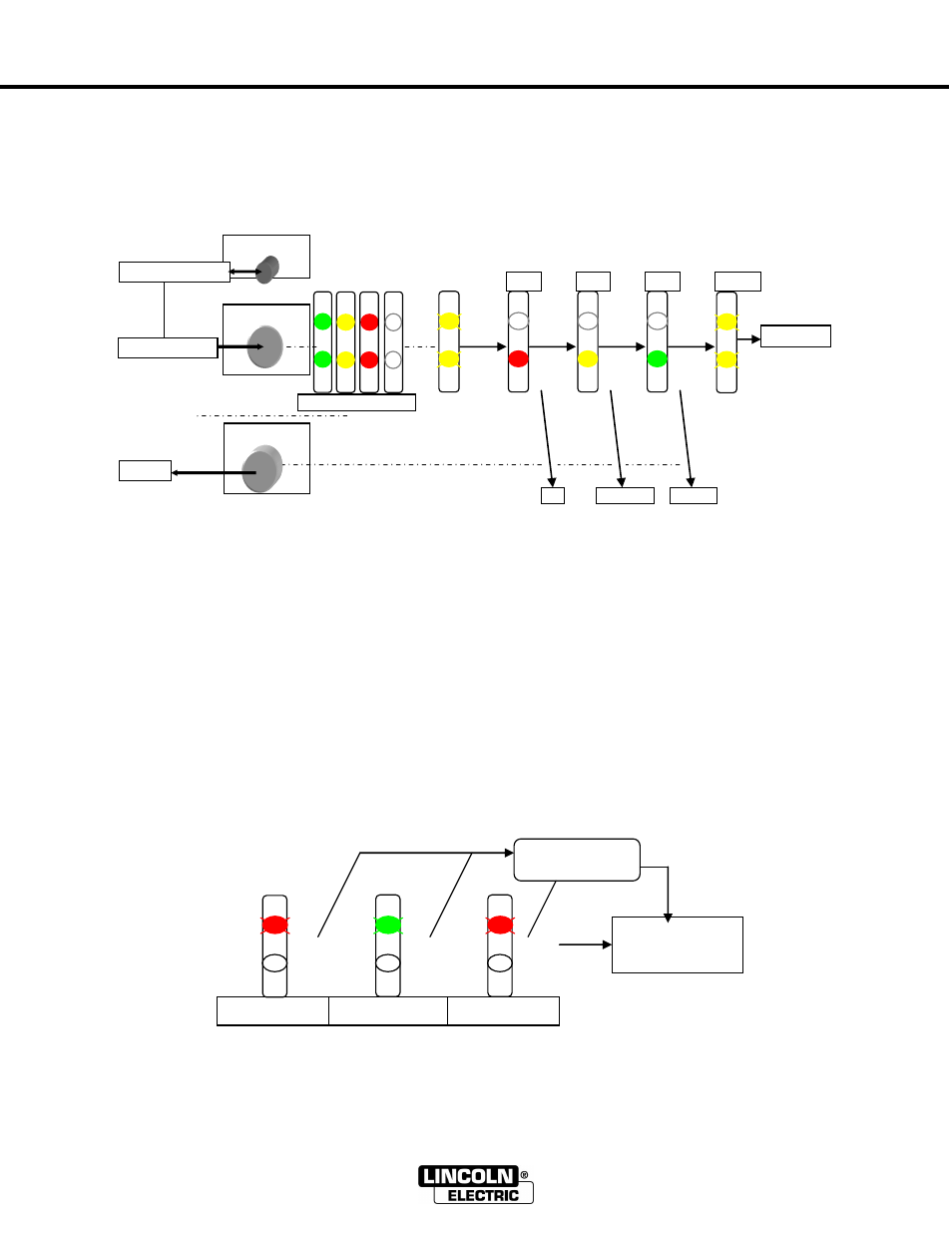

[Off] [On] [Off]
Power-up
Reset button
R R G
R Y G
3 sec 5 sec 7 sec 10 sec
Blow-off Mode I/O
Power-up
Press and Hold
Release
Reset
Setup
Sequencer
Press and Release
G
G
Y
Y
R
R
Y
Y
Y
Y
Power up sequence
Setup
Sequencer
