<5. INSTALLATION AND WIRING>

5-14

5-15

IM 11Y01B01-01E-A 6th Edition :Feb 13, 2013-00


5.10 Wiring

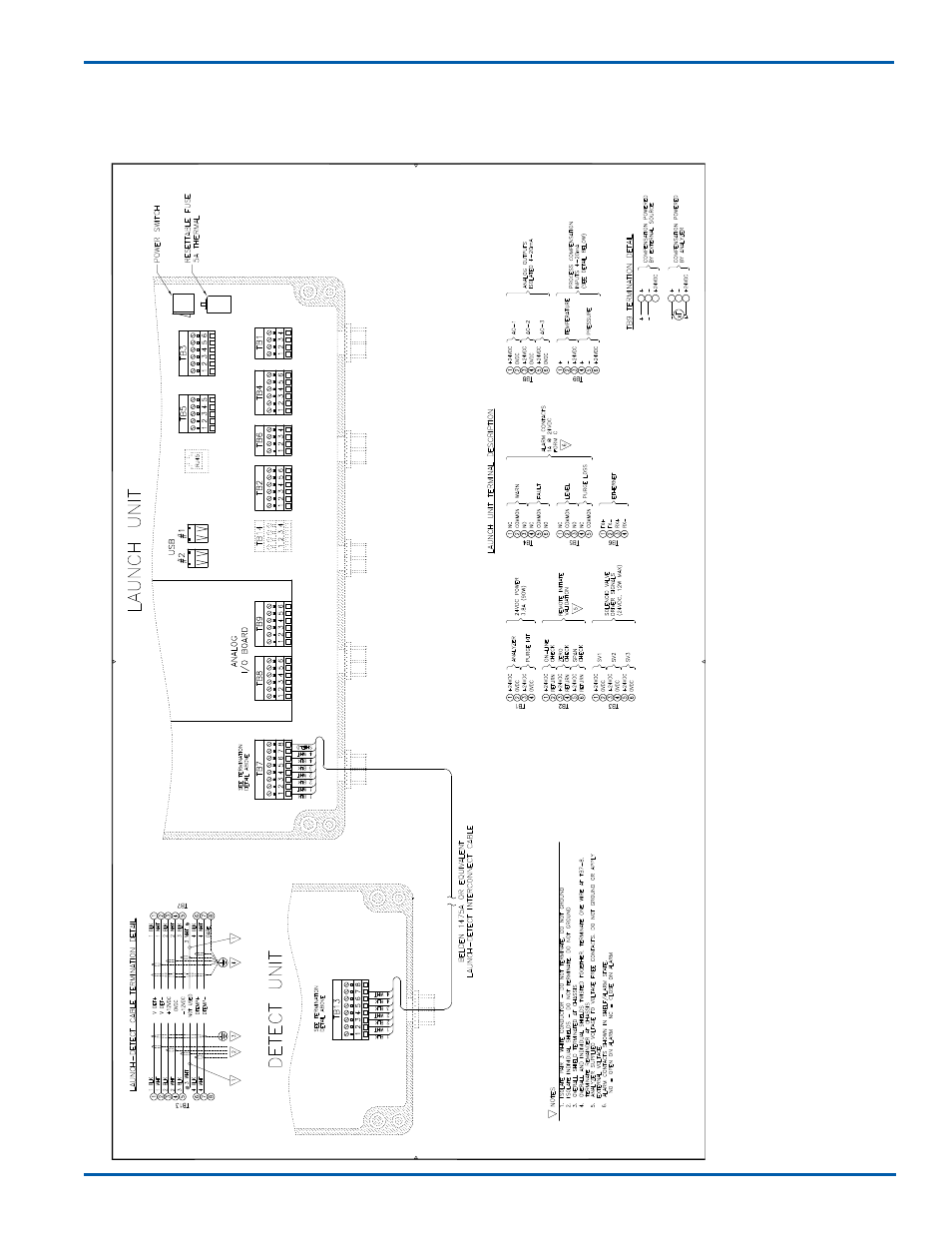

5.10.1 Wiring of Launch for the US version

Figure 46
