INSTALLATION

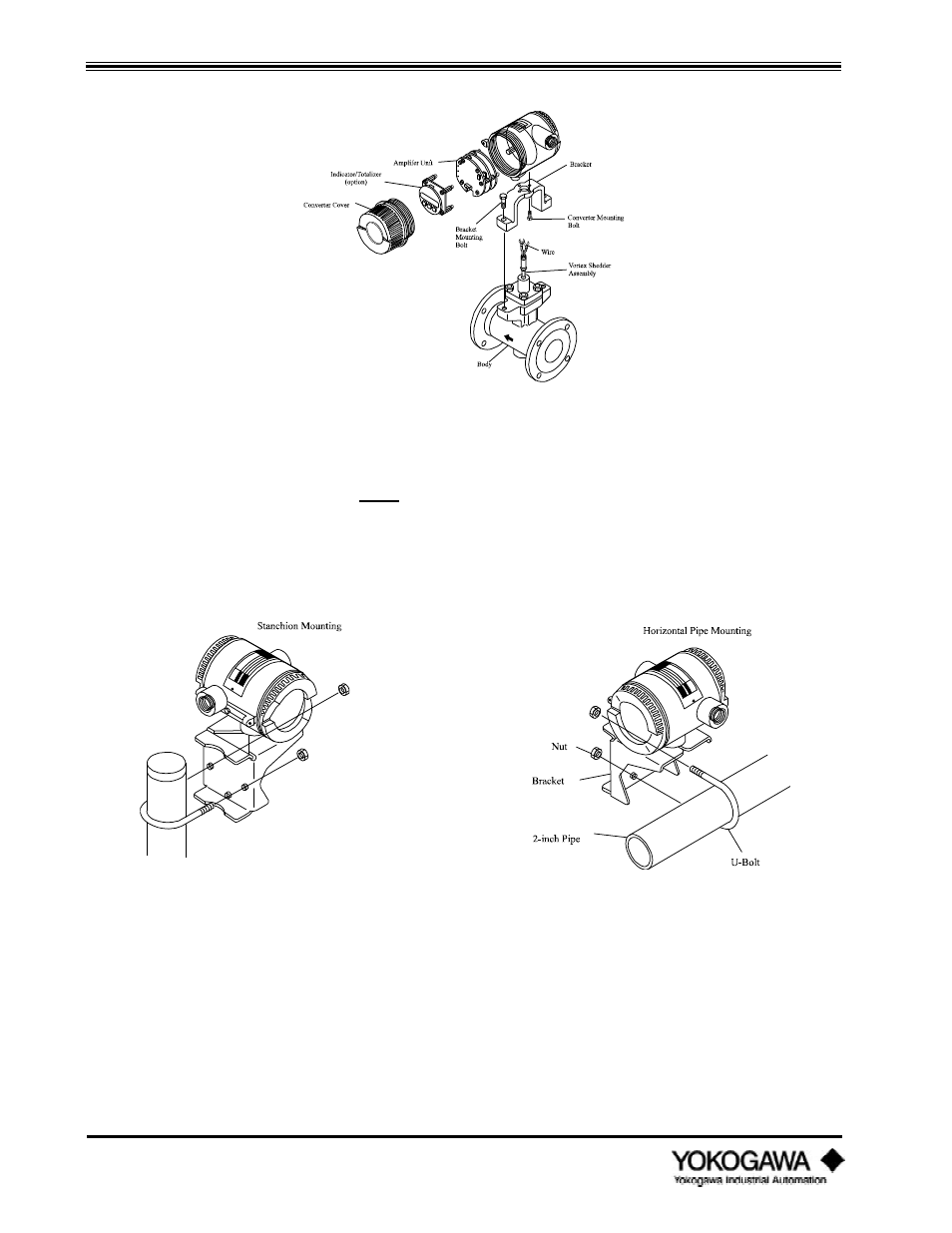

Figure 3.2.6: Changing the converter orientation
3.2.9 Installing the remote converter
A special signal cable (YF011) must be used between the vortex meter body and the remote
electronics. The maximum cable length is 65 feet (20 meters). Do not splice additional cable to
extend the length. The converter may mounted on 2" nominal pipe stand (horizontal or vertical)
using the supplied mounting bracket. The converter orientation may be rotated in 90º increments if
necessary to simplify wiring or viewing. To shorten the cable in the field please refer to the section
on cable.
Figure 3.2.7: Converter installation Figure 3.2.8: Converter installation
vertical pipe mounting horizontal pipe mounting
Note: If there is a local indicator (option /TBL) included on the remote amplifier, its display may be rotated
in 90º increments to facilitate reading the display.
