1.4 WATLOW Series 988 User’s Manual Hardware Setup, Chapter 1
DIP Switches

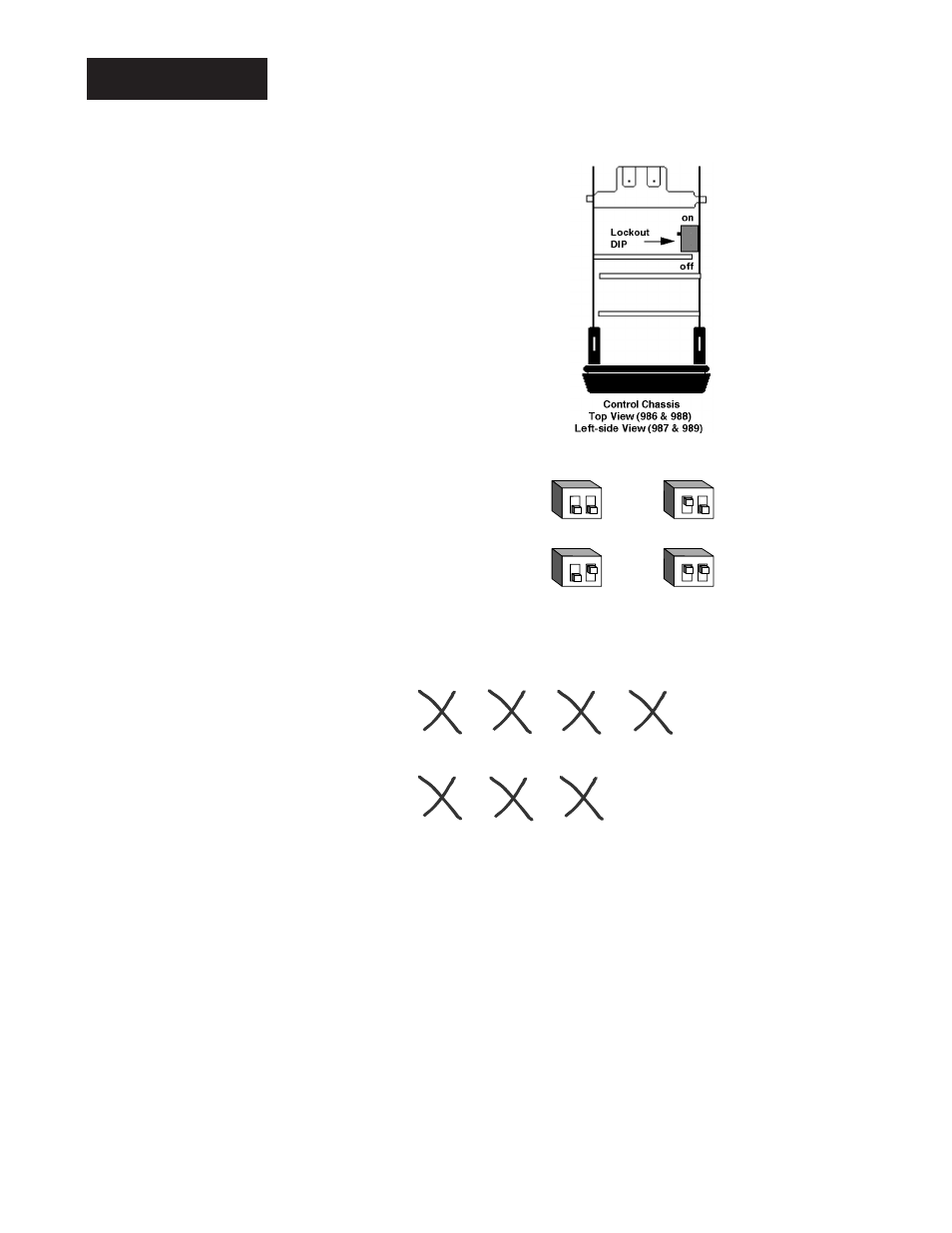

Figure 1.4 -
Lockout DIP switch.
no hardware lockout or
(Switch 1 has no effect.)
lockout Setup and Factory menus or
(Switch 1 has no effect.)
O
N
↑
1 2 O
N
↑
1 2
O
N
↑
1 2 O
N
↑
1 2
4. The lockout DIP switch
hides the Setup Menus
(Input, Output, Global and
Communications) and the
Factory Menus (Panel
Lockout, Diagnostics and
Calibration). All units have
a lockout DIP switch.
ç
CAUTION:
The lockout DIP
switch makes the
Setup and Factory
menus unavailable.
Configure all the
Setup and Factory
menus before lock-
ing them out. Fail-
ure to do so could
result in damage to
equipment in the
event of a setup
error.
Input Output Global
Panel
Lockout
Diagnostics Calibration
Commu-
nications
[InPt]
[`SEt]
[OtPt]
[`SEt]
[PLOC]
[Fcty]
[diAG]
[Fcty]
[`CAL]
[Fcty]
[GLbL]
[`SEt]
[COM
[`SEt]
